OEM / ODM ： Cold Runner Injection Molding & Transparent Inner Shell of Scan Pen (1*2) No.24002
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

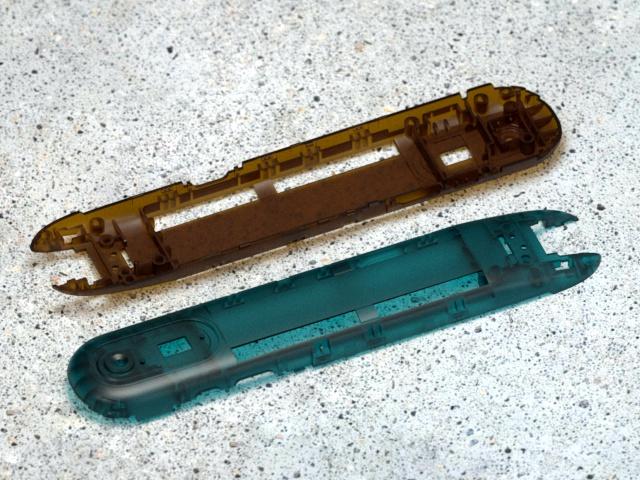

Transparent Inner
Shell of Scan Pen (1*2)
No.24002
| LxWxH |
Net weight: 449kg |
|||
| 400 X 450 X 391 mm | ||||
| Standard mold base FCI3545.A=70 B=120 C=90 | ||||
| Standard | Lifter |
IMM Tonnage: 140T |
||
| LKM | 5 | |||
| Type | Injection/runner type | |||
| Three-plates mold | Cold runner | |||
Part Material: PC+ABS
Gate: Side gate
| Surface finish | |
| 1. TPU surface EDM with Makino VDI21# | |
| 2. Other surfaces EDM with Makino VDI27# | |
| Steel of cavity & core | |
| Harden (1*2/S136) |
Sub-inserts, ejector pin and sprue bush are made of steel > 40HRC; Cavity and core > 50HRC;
Cavity&Core high polished. And the molded parts have smooth surface W/O flow marks and gas
marks, with fitting tolerance < 0.1mm; with uniform wall thickness, smooth runner, free of sink
mark, and stable quality.
| Mold size | 29.74 X 145.41 X 9.90 mm | ||
| Mold weight | 7g | ||

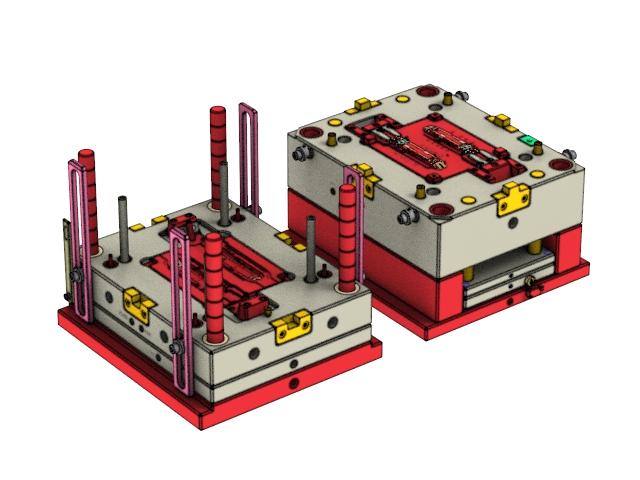

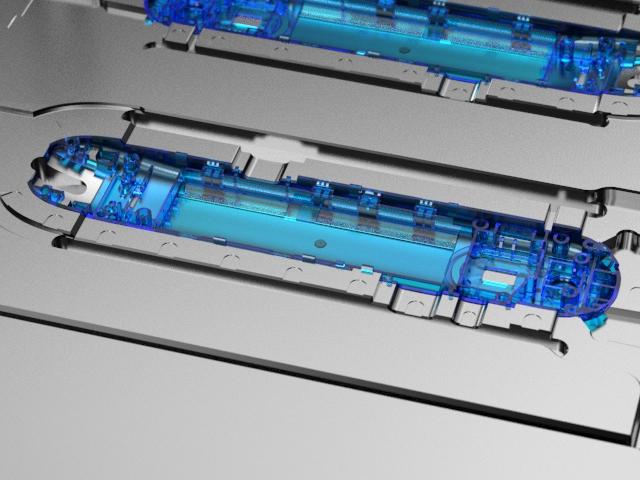

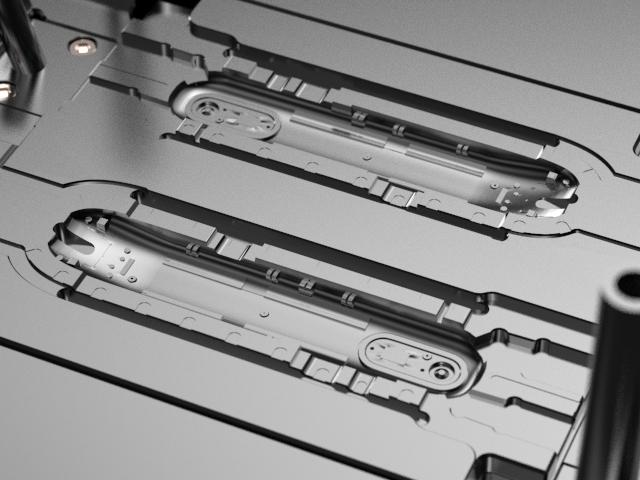

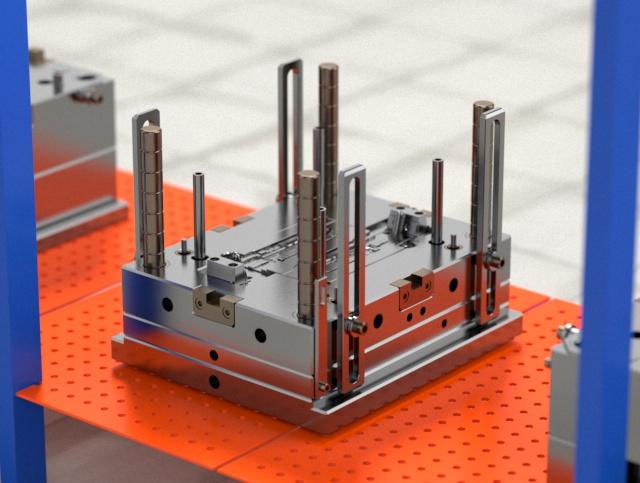

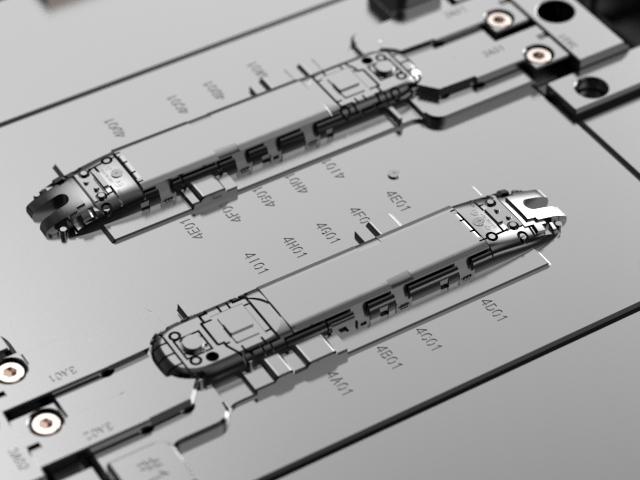

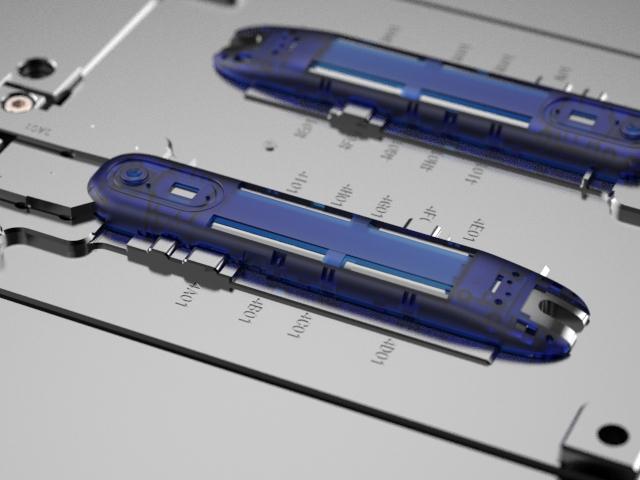

Display diagram
