OEM / ODM ： Double Injection Molding & Three-proof Phone Battery Cover (1*1) No.23691& 23692
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

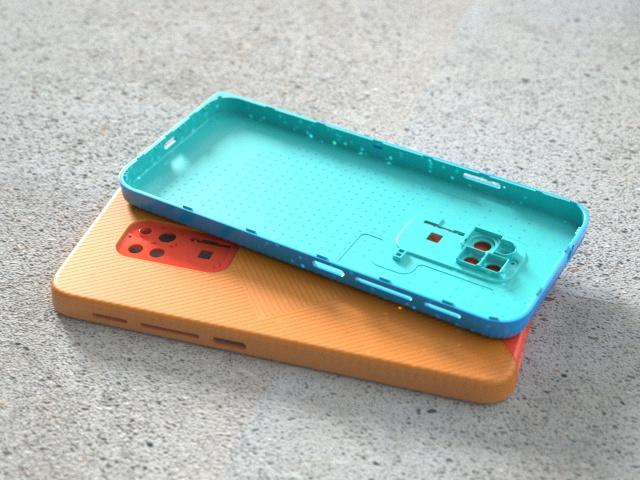

Three-proof Phone Battery Cover (1*1)
No.23691& 23692
| Mold base P/N | FCI3545 70120100 | Type | ||
| Mold size | Length | Width | Height | |
| 350 | 570 | 451 | Three-plates mold | |
| Chinese general injection mold standard LKM | ||||
[Tool life] - 500k shots
[Gate]: Pin point gate
[Part material]: PC/TPU
[Part weight/size]: 33.5g
[Part overall size]: 77.81X169.44 X 9.78mm
[Surface finish]:
❶ A surface polished with 1000# sand paper
❷ texture VDI27#
[Steel of cavity & core]: Harden (1*1/S136)
[Injection/runner type]: Hot runner
The mold is designed with hot runner, deliver the uniform PC/TPU material into the cavity.
Mold good fitted, free of leakage, with stable quality and molded part W/O flow marks.
[Mold net weight]: 784kg
[IMM Tonnage]: 250T
[Features]: 4 x slides and 23 x lifters

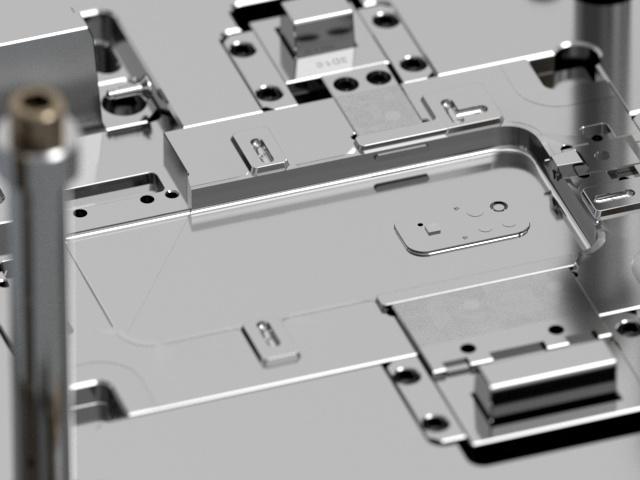

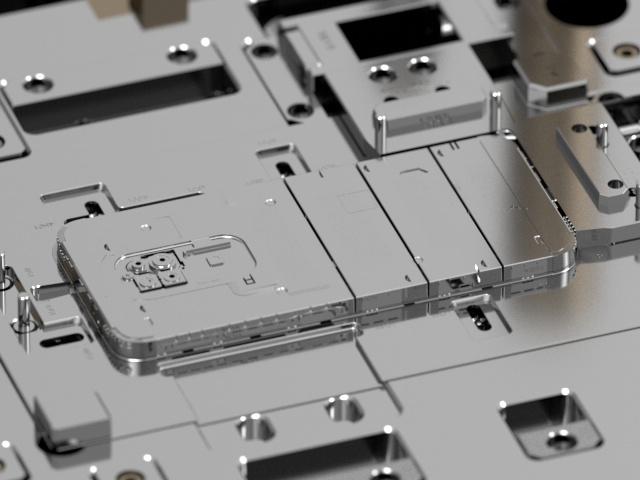

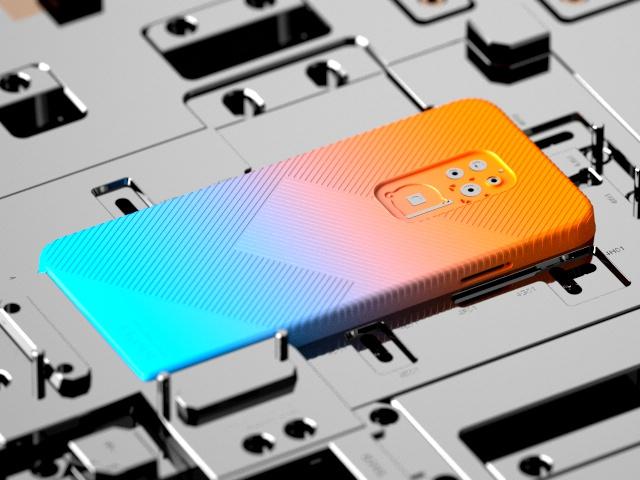

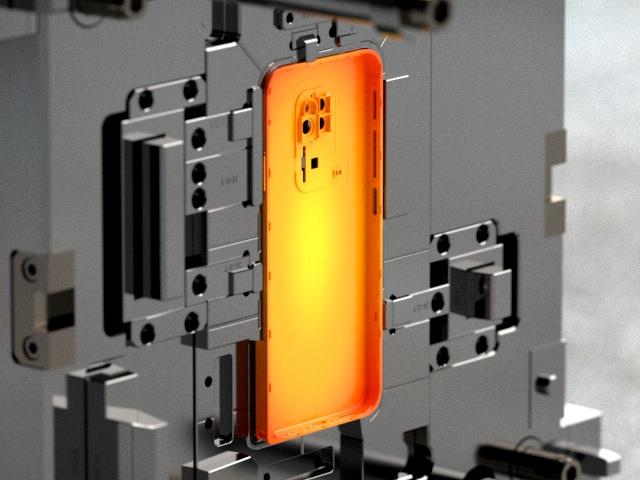

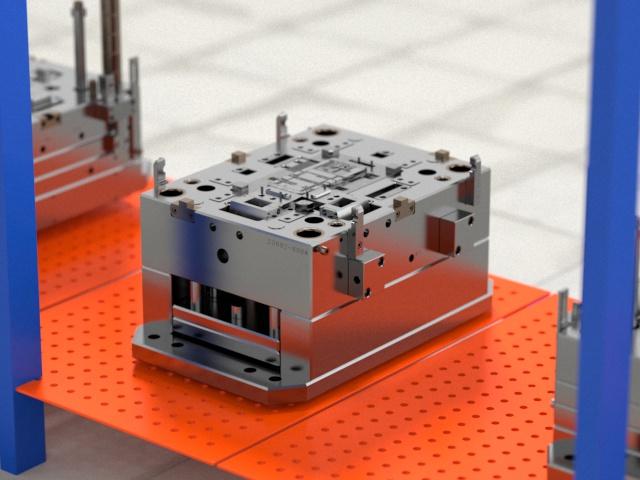

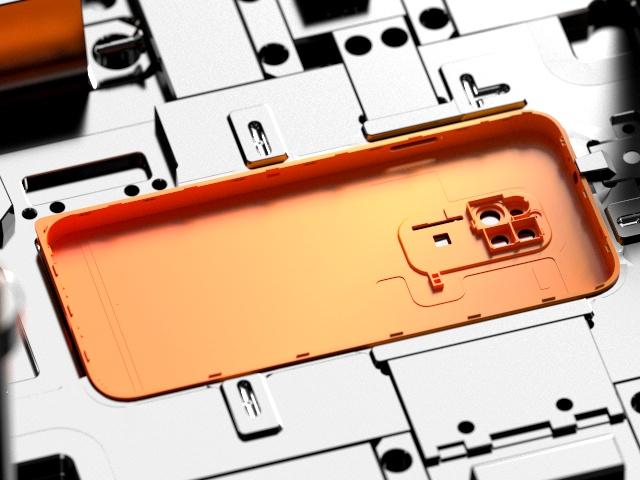

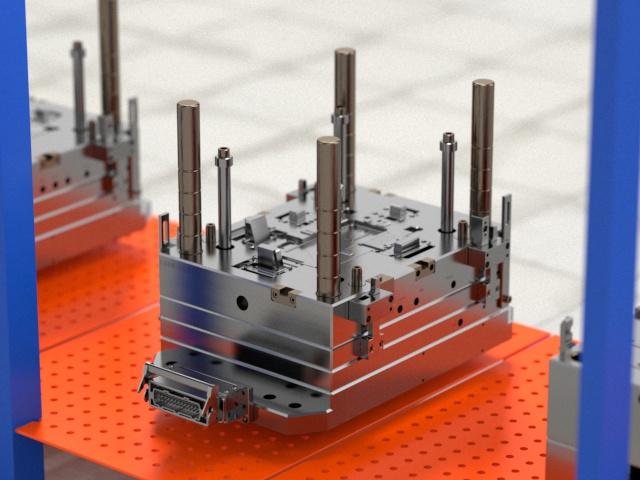

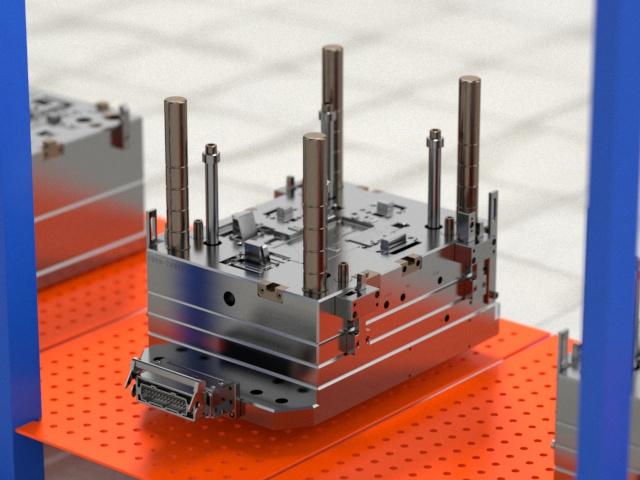

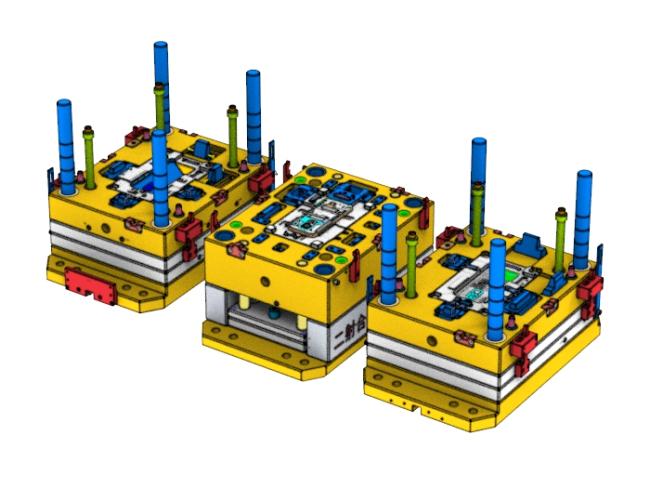

Display diagram
