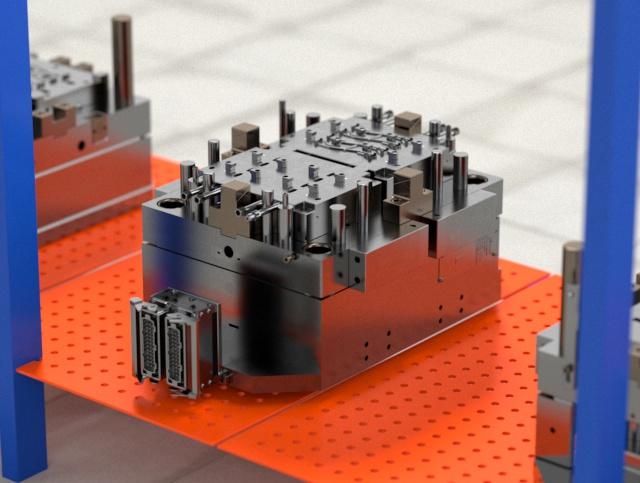

Housing Base (1*16) / Hot runner / Three-plates mold No.24309 & 24310
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

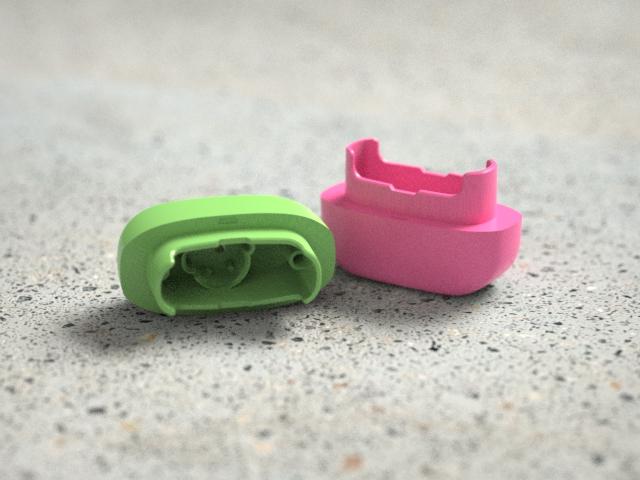

Housing Base (1*16)
No.24309 & 24310
| Mold information | Standard mold base P/N: CI4050.A60 B60 C100 | Net weight | ||||||
| Brand | Chitwing | Length | 400 | Width | 660 | Height | 545 | 505KG |
Origin: Guangdong, China
Injection/runner type: Hot runner
Features: 2k mold
| Surface finish | |||||
| Second-color A surface polished to SPI-A2 | First-color A surface EDM with VDI 15# | ||||
| Cavity | Harden (1*2/S136) | Core | Harden (1*2/S136) | ||
| The fully processing by Chitwing has greatly improved the anti-wearing performance, anti-seizure and anti-fracture performance. The mold good fitted with a very high part quality | |||||||
| Gate | Type | Part material | Standard |
| Pin point gate | Three-plates mold | PC+ABS | LKM |
IMM tonnage: 250T
Part weight: 1g+1.1g
Size: 12.13 * 15.54 * 25.44mm

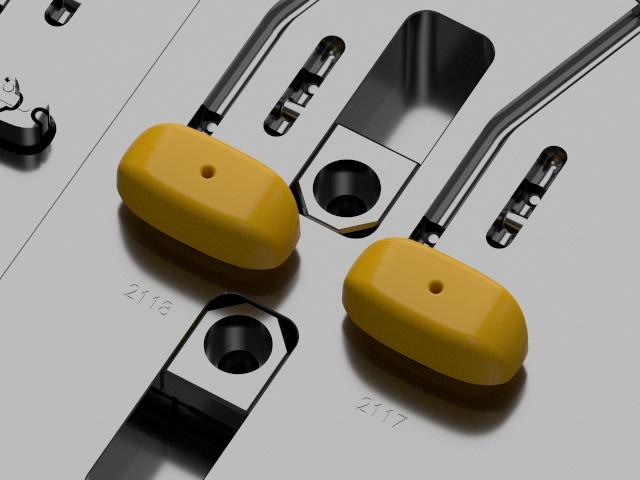

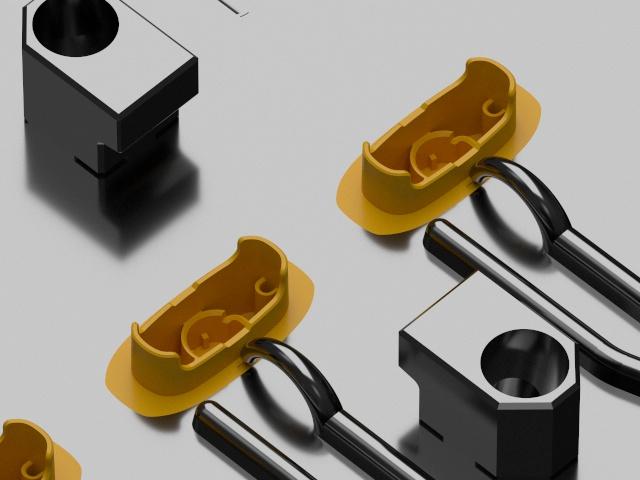

Display diagram
