Transparent Housing (1*8) / Cold runner / Three-plates mold No.24307 & 24308
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

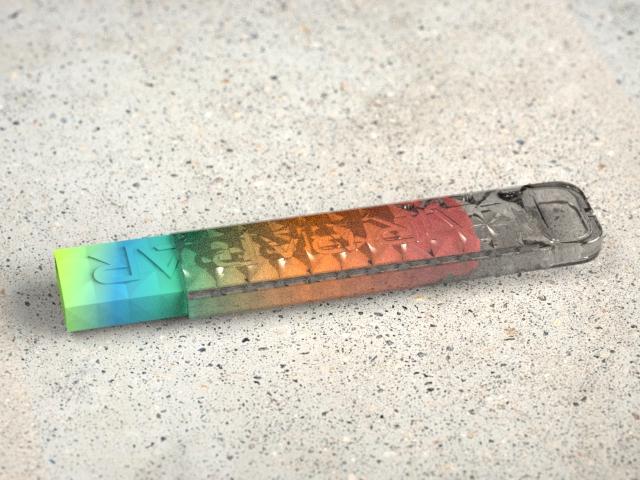

Transparent Housing (1*8)
No.24307&24308

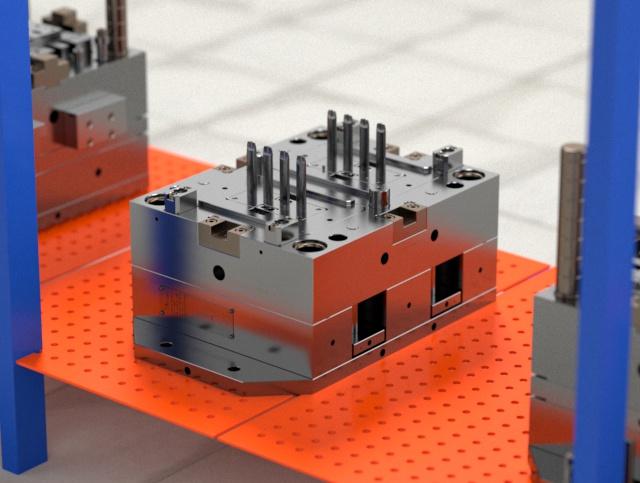

| Features: 2k mold Mold size: 400.00 X 660.00 X 546.00mm Custom mold base FCI4050-A130-B115-C95 Net weight: 505KG+505KG Harden cavity & core with S136 |
Part material | ||
| PC+ABS | |||
| Surface finish | Second-color A surface polished to SPI-A2 | ||
| First-color A surface EDM with VDI 15# | |||
The mold is designed with three-plate mold structure and pin point gate, hot runner turns to cold
runner, LKM standard. After physical treatment, the surface hardness > 600HV, with high anti-wearing
performance and the service life up to 500k shots
| IMM tonnage: | 250T | |||
| Part size: | 25.63 X 12.26 X 100.10mm | |||
| Part weight: | 0.83g +0.75g | |||
Display diagram
