OEM / ODM ： Hot Runner Injection Molding & Smart Doorbell Upper Shell (1*2) No.23673
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

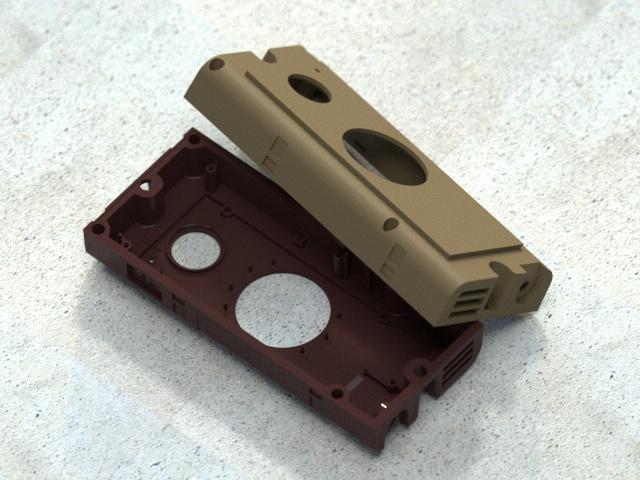

Smart Doorbell Upper Shell (1*2)
No.23673
Standard mold base P/N: CI3555.8012090.
IMM tonnage: 140T
| Length | 400 | Net weight | Injection/runner type | Standard | |
| Width | 550 | 640kg | Hot runner | LKM | |
| Height | 490 | ||||
| Surface finish | 1. A surface polished to SPI-A2 | Steel of cavity | |||
| 2. Secondary surface with MT11006 etch | Harden (1*2/S136) | ||||
| 3. Sealing surface polished to SPI-A3 | Steel of core | ||||
| 4. Other surfaces EDM with VDI21# | Harden (1*2/S136) | ||||
Features: 4 slides and 6 lifters
Gate: pin point gate (with subsequent CNC machining)
| Part | Size | 43.57 X 98.47 X 15.10mm | |||
| Net weight | 15g | ||||
| Reasonable hot runner wiring layout for easy maintenance; the cavity and core > 50HRC, with higher anti-wearing and anti-scratch performance; mold good fitted, short cycle time; the molded part has rich details, free of cold slug, greatly reducing the cost. | ||||||||

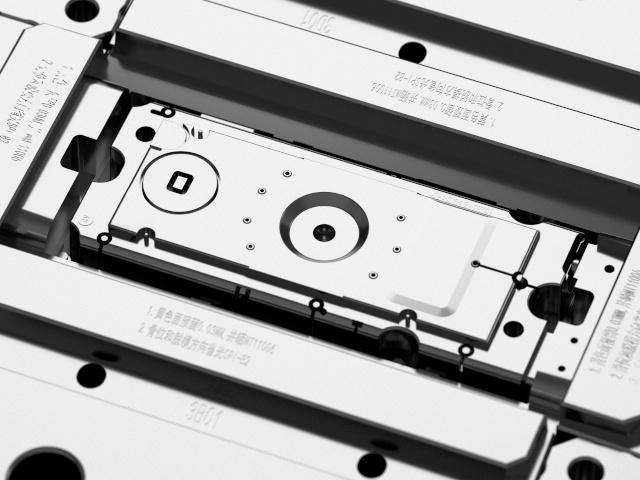

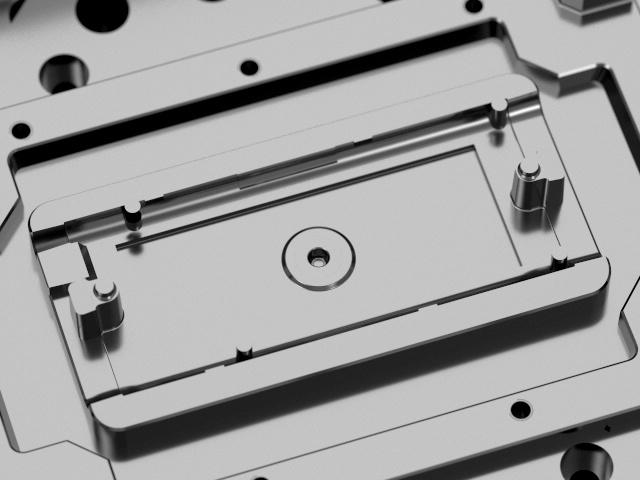

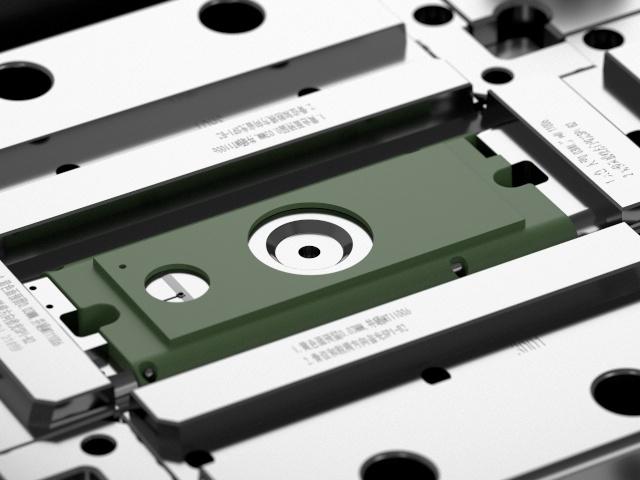

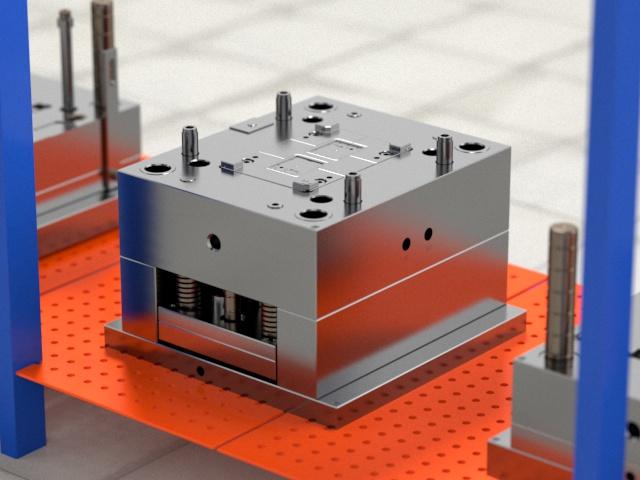

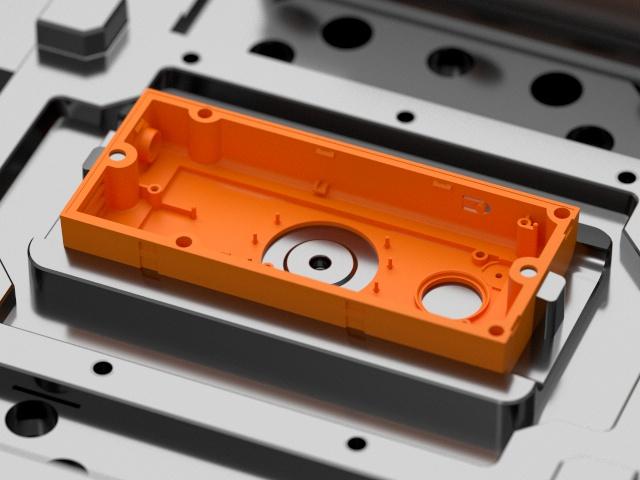

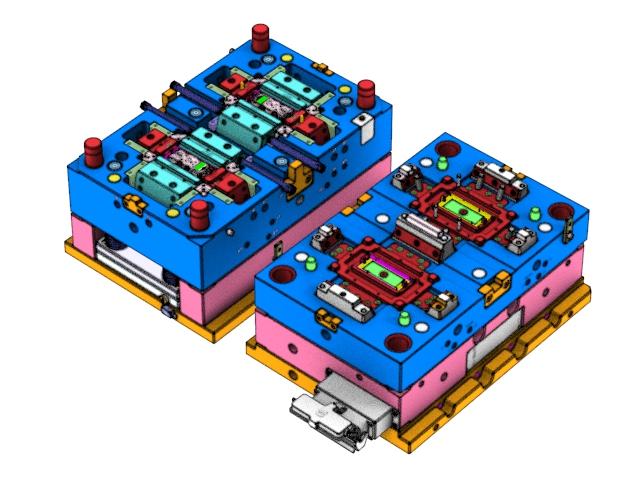

Display diagram
