OEM / ODM ： Hot Runner Injection Molding & Smart Doorbell Cover (1*2) No.23679
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

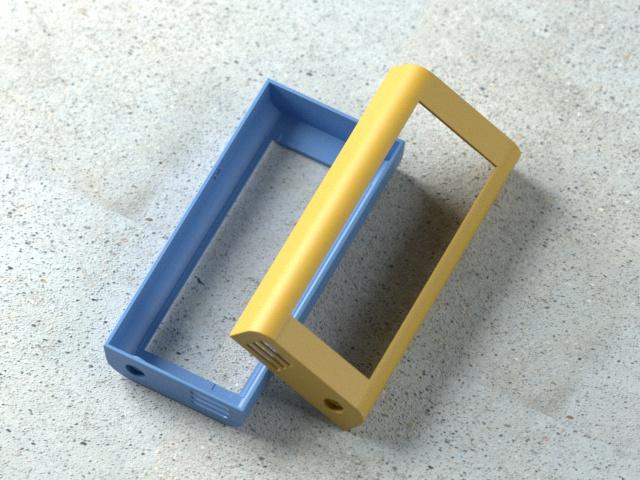

Smart Doorbell Cover (1*2)
No.23679

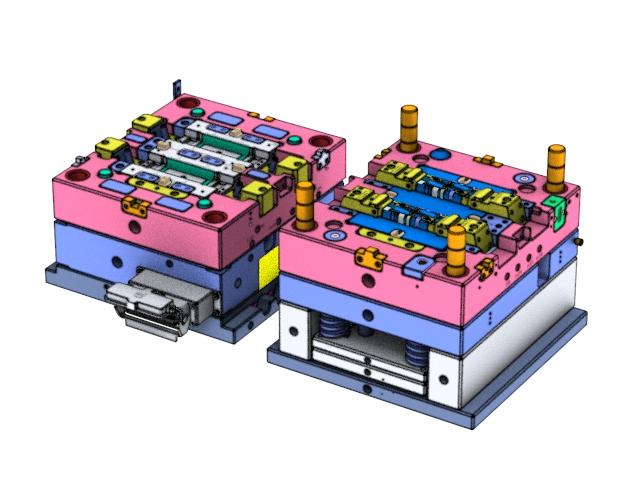

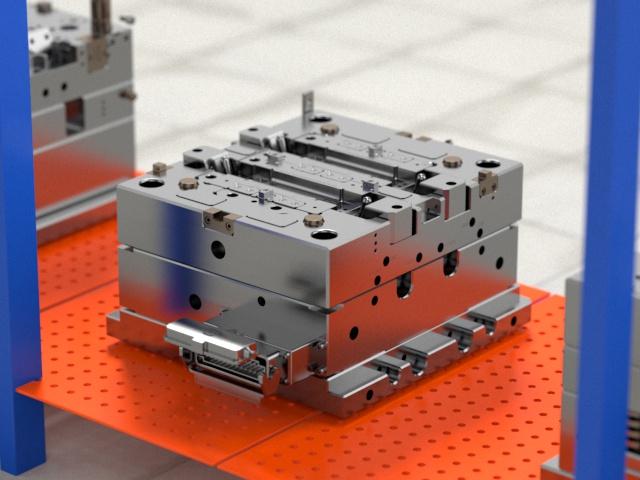

Custom mold base DI3540.8080100.
| Brand | Chitwing | Length | 400 | Slide | Net weight |
| Type | Three-plates mold | Width | 400 | 2 | 469kg |
| Standard | LKM | Height | 481 |
[IMM tonnage]: 110T
The mold is designed with sub gate (pin point gate turns to side gate); A surface with MT11006
etch, and other surfaces EDM with VDI21#. Harden the cavity and core with 1*2/S136 to have
high hardness and anti-wearing performance; the tool life > 500k shots. The mold good fitted
for accurate processing w/o leakage. The molded part has fine quality; the mold is designed
with hot runner, w/o loss of materials, thereby greatly reducing material cost.
[Features]: 2 slides
[Part net weight]: 1.0g
[Size]: 18.94 * 18.94 * 10.45mm
Display diagram
