OEM / ODM ： Hot Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854

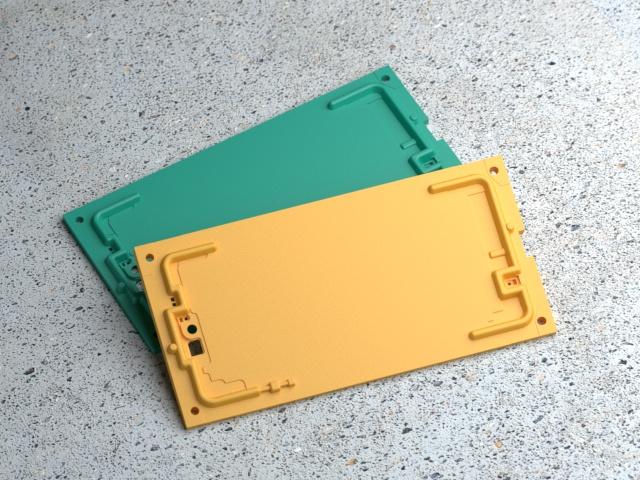

Mobile Phone TP Trim (1*1)
No.23854
[Mold base]: custom mold base CI3040.7010090
| [Size] | 350x400x446mm | [Injection/runner type] | Hot runner | ||||
| [Tool life] | 500K shots |

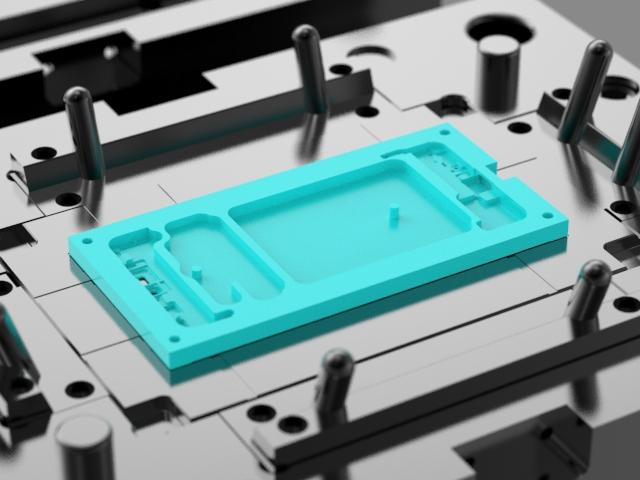

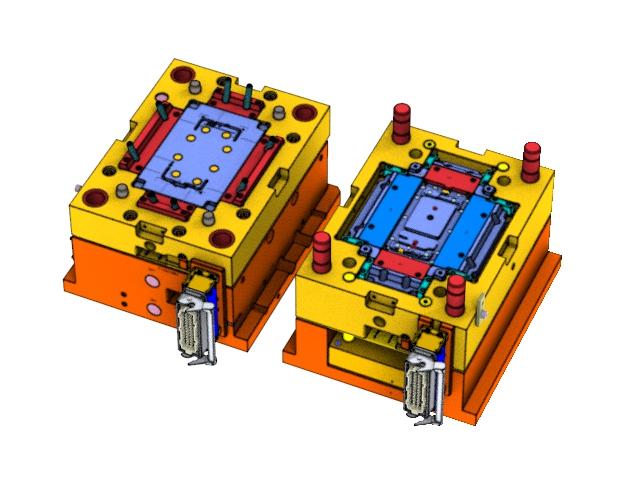

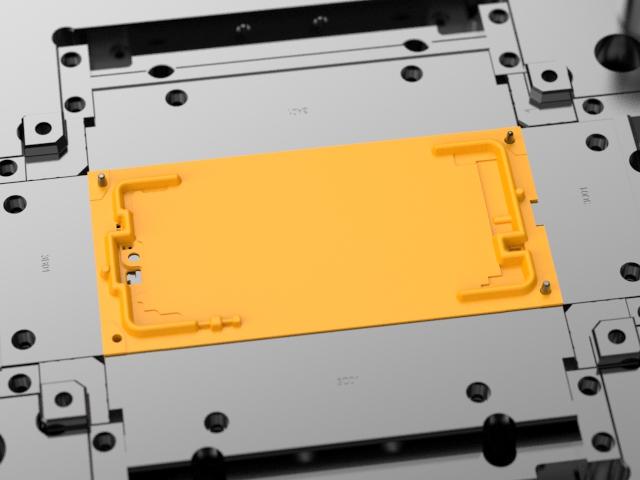

This is a two-plates mold designed with nano injection molding (effectively reduce the part weight, thickness, reduce the cost and prolong the service life), 4 slides, hot runner, direct gate, fast and uniform mold filling, stable cavity pressure and no loss of material. |
|||||
| [Gate] | Direct gate | ||||||
| [Type] | Two-plates mold | ||||||
| [Standard] | LKM | ||||||
| [Part material] | PBT+GF40% | ||||||
|
[Mold surface]: w/o flow marks and gas marks, fine surface with clear details |
|||||
|

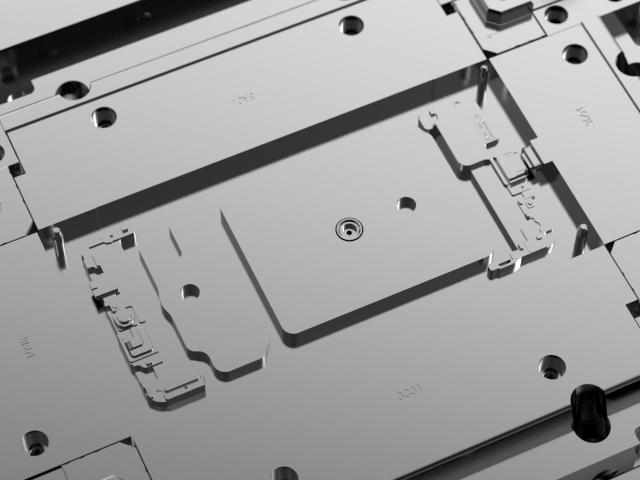

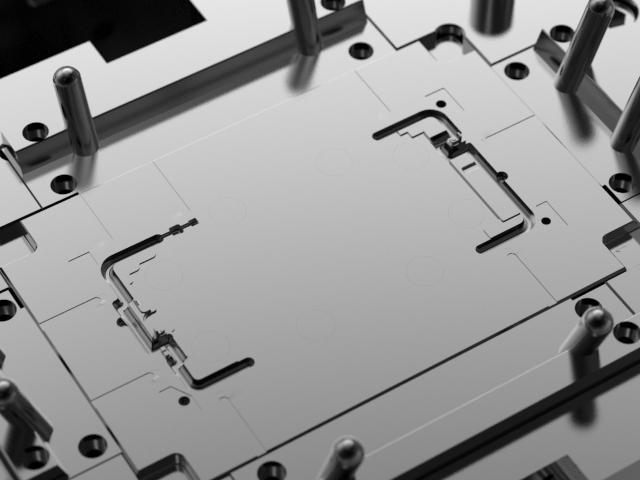

[Steel of cavity and core]: performance, and the tool life is up to 500k shots |
|||||

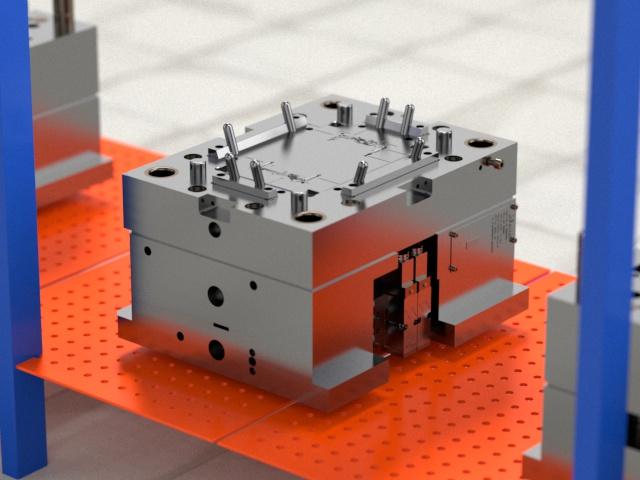

The mold net weight is 416kg, fits 140T machine. The part material is PBT+GF40%, the part
size is 164.69 X 77.42 X 6.75mm, and the part net weight is only 5g.
