OEM / ODM ： Hot Runner Injection Molding & On-board Rear Housing (1*2) No.23909
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
In Car Rear Housing (1*2)
No.23909
| Mold base P/N: DI4055 110100100 | [Standard] - LKM | ||||
| Size: | |||||
| Length | 450 | Width | 550 | Height | 559 |
| Slide | Lifter | Mold net weight | IMM Tonnage |
| 4 | 13 | 871kg | 220T |
This tooling with hot sprue + 3 plates pin point gate + side gate.
Easy for tool build and W/O cold sprue (cost effective by saving material)
|
[Surface finish] ① A surface laser with VDI24# |
|||||
| Part outter surface polished, low glossiness and free of sand paper mark, and touch-friendly. | |||||
| [Steel of cavity & core]: Harden (1*2/S136) | |||||
|
Harden steel for cavity and core, good hardness, anti-wearing, anti-corrosion, mass production tool life 500k shots. |
|||||
| Overall size: | Net weight | Part size | ||||
| Length | 115.95 | |||||
| Width | 60.93 | 19.95g | 115.95x60.93x37.15mm | |||
| Height | 37.15 | |||||

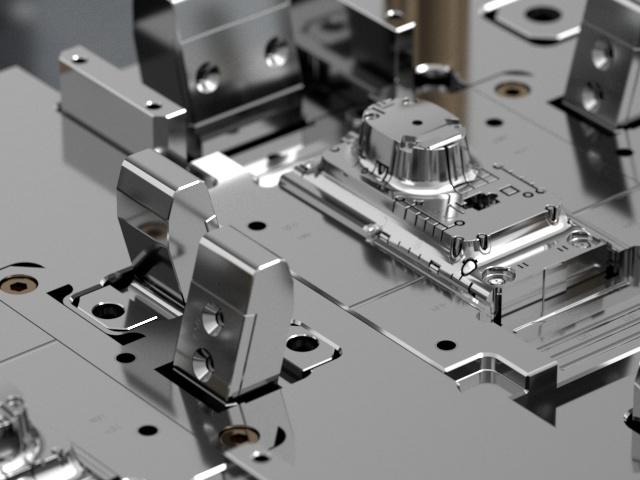

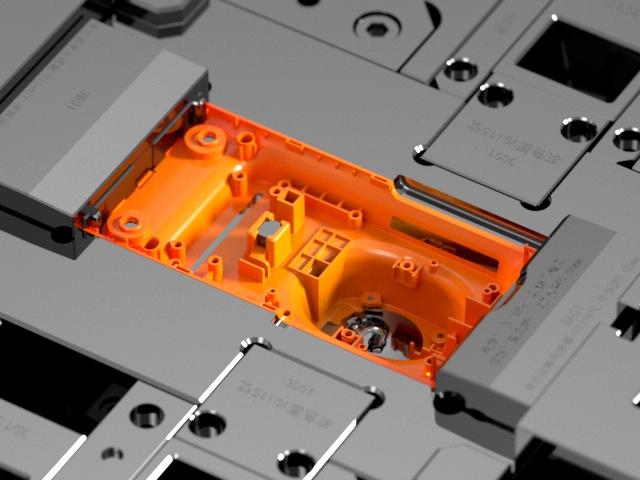

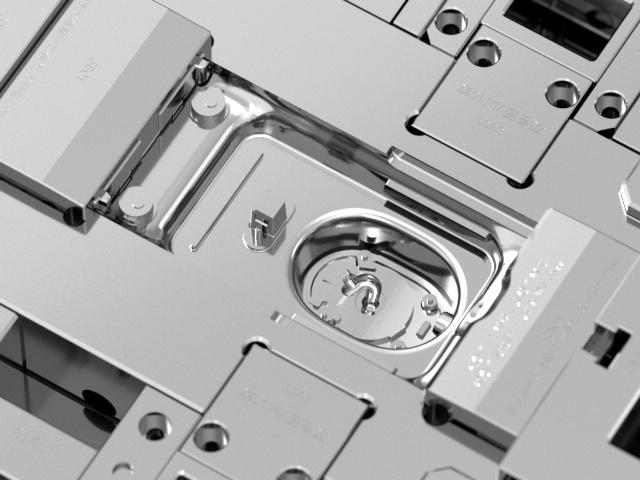

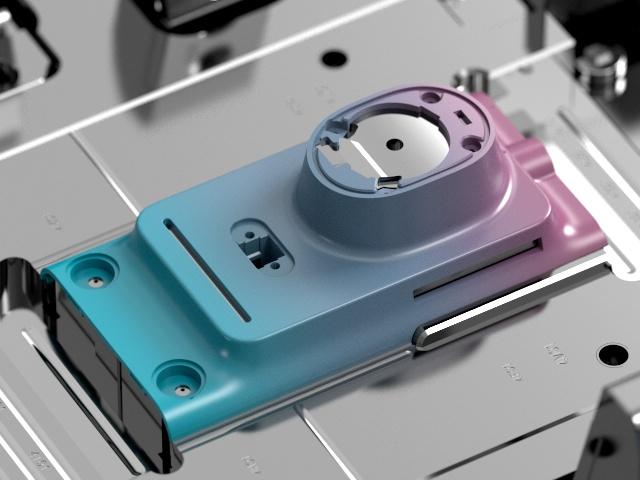

Display diagram
