OEM / ODM ： Hot Runner Injection Molding & On-board Foot Rest (1*2) No.23914
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

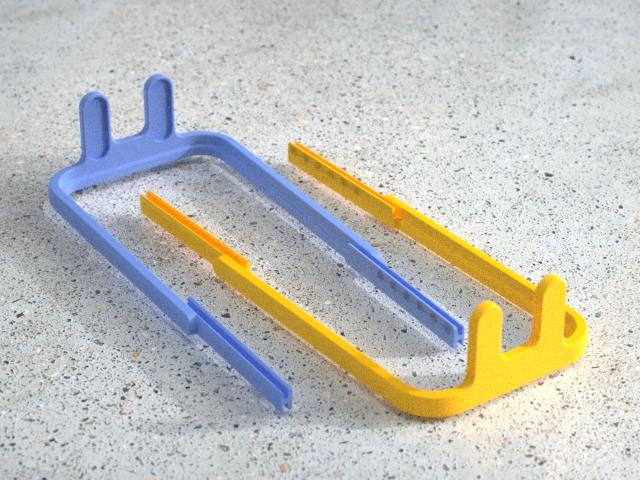

On-board Foot Rest (1*2)
No.23914

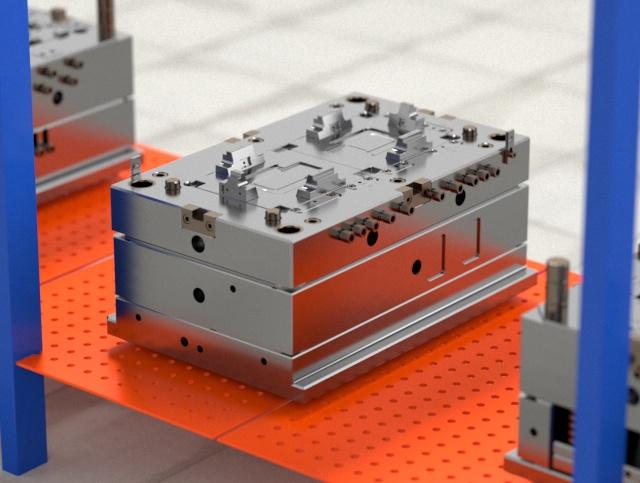

> Mold base P/N: CI4065A85B130C110
| Brand | Standard | Length Width Height | Net weight | ||
| Chitwing | LKM | 450x650x548 | 1075kg | ||
| Type: Two-plates mold |
Injection/runner type: Hot runner |
Slide | IMM Tonnage | ||
| 3 | |||||
| Lifter | 130T | ||||
| 3 | |||||
Part material: PA+50% GF
Part size 61.00 X 130.95 X 28.34mm, weight 7.75g
Gate: Spure gate
This mold with ①A surface EDM to Charmilles VDI24# ② Internal surface polished to SPI-B1,
so that the mold surface has a good glossiness, roughness and slight sandpaper marks. the molded
part has a skin-friendly surface. The cavity and core are harden (1*2/S136) with high hardness,
anit-corrosion, anti-wearing.
Mold with hot runner, no runner material loss, short cycle time, good molding performance and cost,
long tool life.

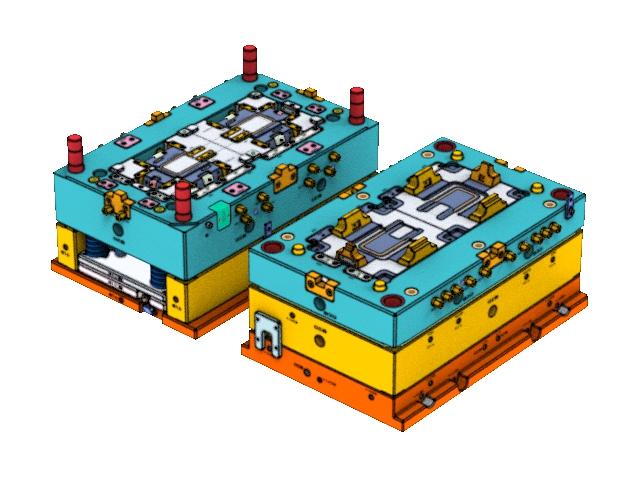

Display diagram
