OEM / ODM ： Hot Runner Injection Molding & Transparent Smart Doorbell Upper Shell (1*2) No.23673
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

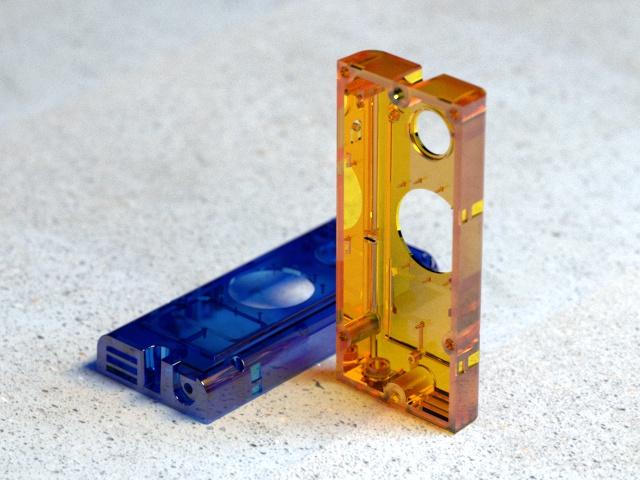

Transparent Smart
Doorbell Upper Shell (1*2)
No.23673

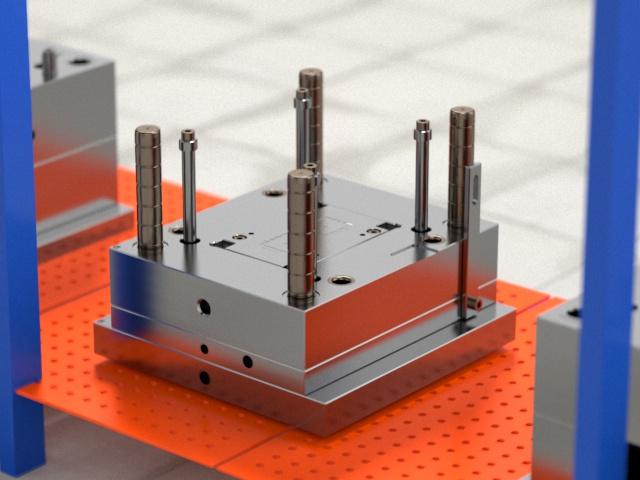

| Standard mold base P/N: CI3555.8012090. | |||||
| Standard | Net weight | Length | 400 | Slide | Lifter |
| LKM | 640kg | Width | 550 | 4 | 6 |
| Height | 490 | ||||
|
Surface finish |
1. A surface polished to SPI-A2 | ||
| 2. Secondary surface with MT11006 etch | |||
| 3. Sealing surface polished to SPI-A3 | |||
| 4. Other surfaces EDM with VDI21# | |||
| Injection/runner type | |
| Hot runner | |
| Steel of cavity | Steel of core | ||
| Harden (1*2/S136) |
Harden (1*2/S136) |
IMM tonnage: 140T
Size: 43.57 X 98.47 X 15.10mm
Part weight: 15g
| Gate | Pin point gate (with subsequent CNC machining) | ||
| The mold was developed by Chitwing, with precision design to meet in line the low cost and high quality requirements; short cycle time, no loss of material, greatly reducing the material cost; the molded part has clear edges and angles w/o flash; the mold good fitted, with tool life up to 500k shots | ||||||||

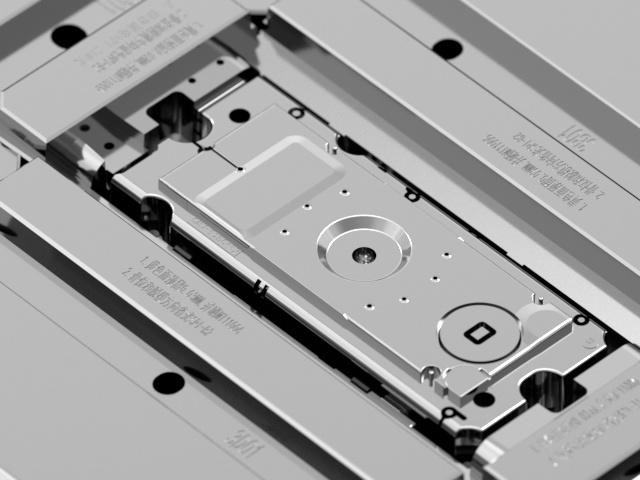

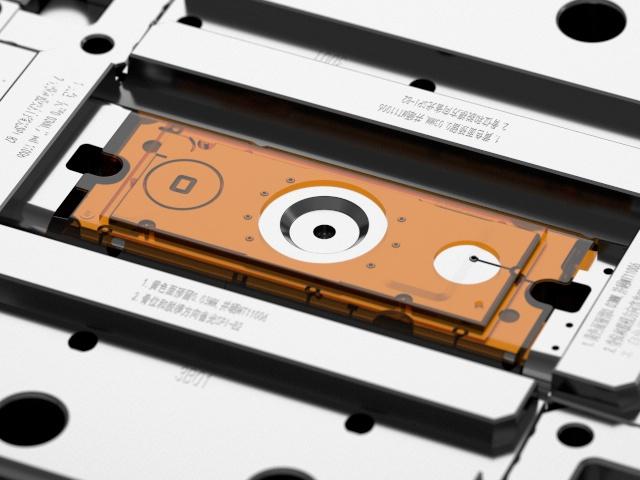

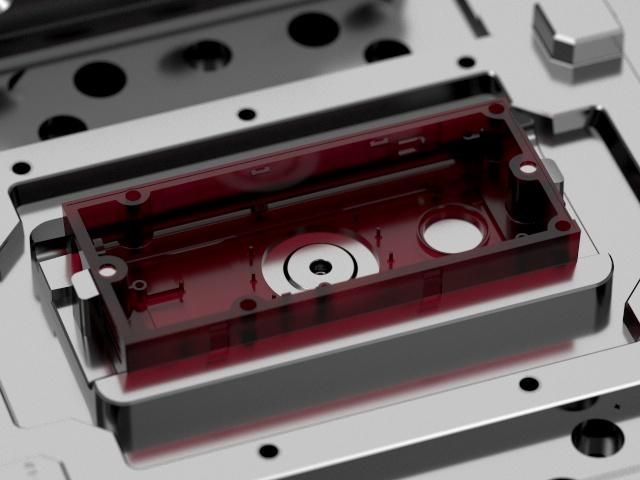

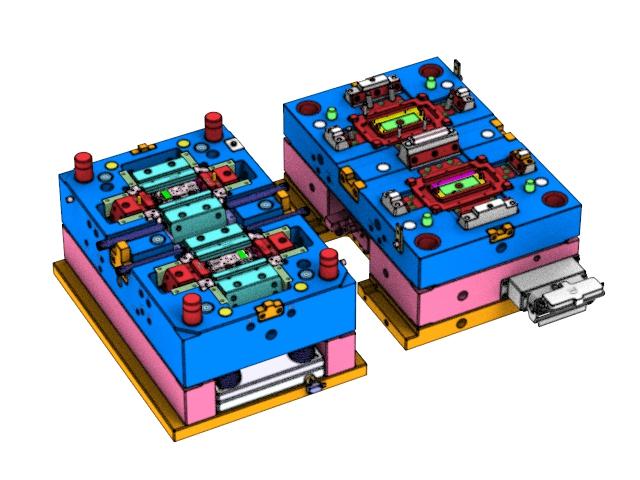

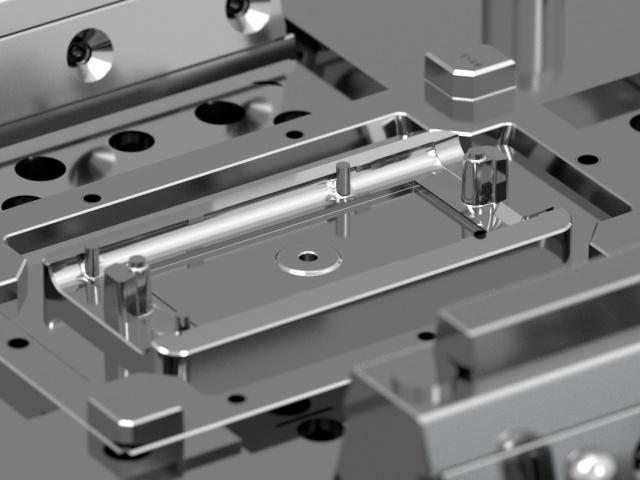

Display diagram
