OEM / ODM ： Hot Runner Injection Molding & Transparent phone TP trim (1*1) No.23854
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

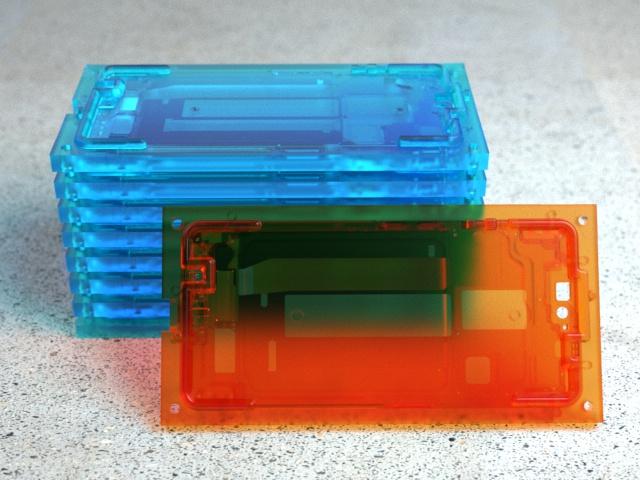

Transparent phone TP trim (1*1)
No.23854
[Mold base]: custom mold base CI3040.7010090

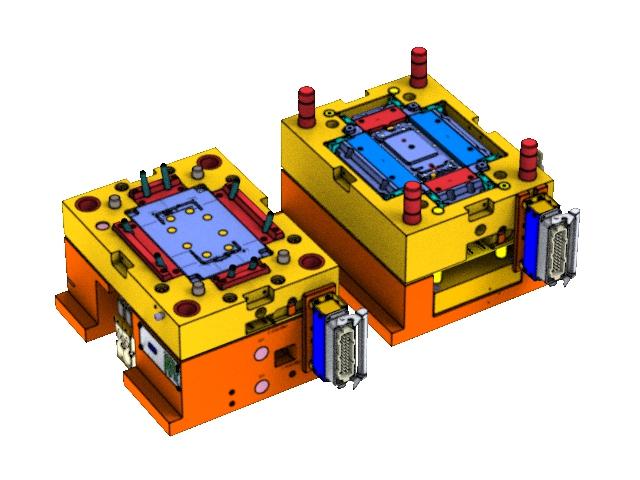

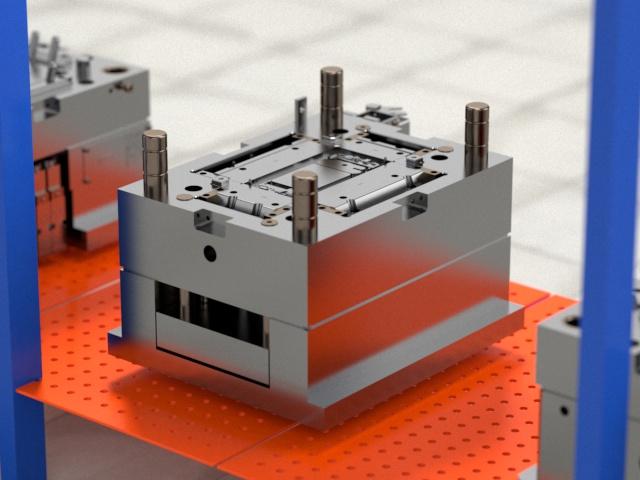

This is a two-plates mold developed (designed and manufactured) by Chitwing according
to the user needs and macro market economy. It adopts nano-injection molding technology,
hot runner design; w/o loss of material, high precision, easy operation and short cycle time;
auto filling, injection and demolding, greatly reducing material and labor costs; molded parts
with precise thread.
| [Size]: 350x400x446mm [Tool life]: 500k shots [Type]: Two-plates mold [Standard]: LKM |
4 slides | ||||
| Nano injection molding | |||||
| [Part material] | PBT+GF40% | ||||
☆ [Mold surface]:
① A surface polished to 1000# sandpaper
② Secondary surface EDM with VDI21# (Makino)
☆ [Steel of cavity and core]: Harden with 1*1/S136
| [Injection/runner type] | Hot runner | ||
| [Gate] | Direct gate |
| ☆ [Net weight]: 416 kg ☆ [IMM tonnage]: 140T |
☆ [Part net weight]: 5g ☆ [Part size]: 164.69 X 77.42 X 6.75mm |

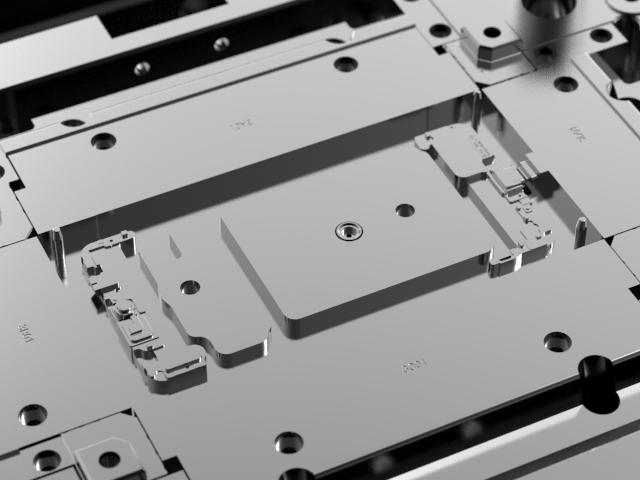

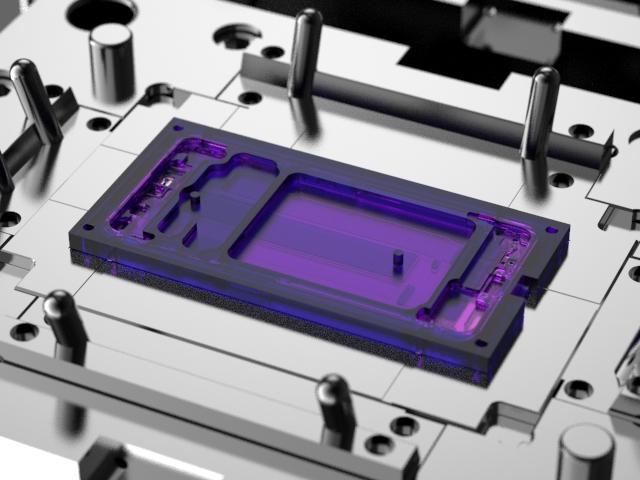

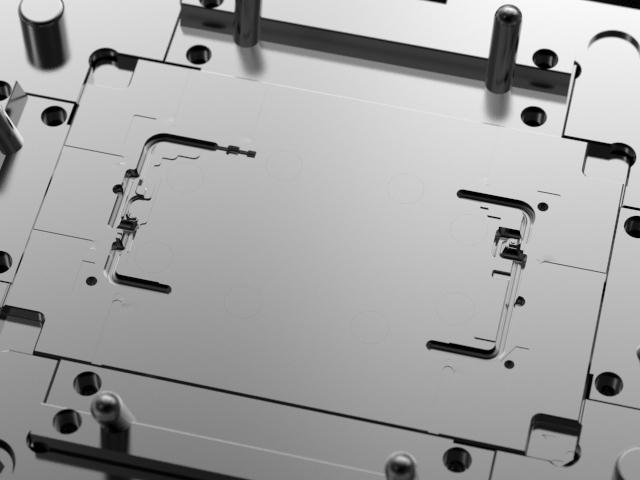

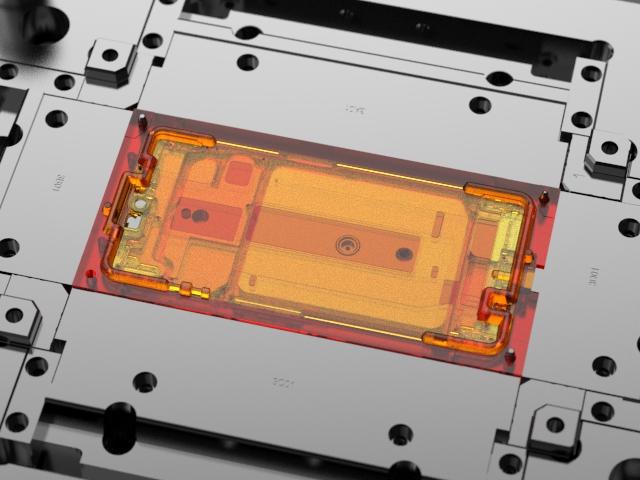

Display diagram
