OEM /ODM ：Consumer Electronics Molds / Transparent Beauty Instrument Base (1*8) No.24312

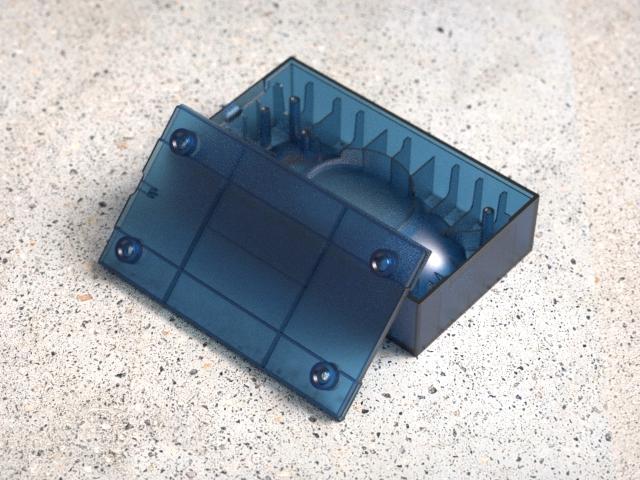

Transparent Beauty Instrument Base (1*8)
No.24312
| [Mold base P/N]: AI4050 110110120. | |||||
| [Mold size]: <L> 450 <W> 500 <H> 561 [Net weight]: 820 kg | |||||
| [IMM Tonnage]: 450T | |||||
| [Standard]: LKM (General plastic mold standard in China) | |||||
| [Lifter]: 4 |
| [Tool life]: ≥ 500K shots [Type]: Two-plates mold (machine clamping force can be accurately tuned) [Part material]: PPS + 30%GF [Part size]: ① 141.67 X 81.67 X 10.00mm ② 146.22 X 86.22 X 35.00mm [Part material]: PPS + 30%GF |
|||||
| [Injection/runner type]: Hot runner |
(The mold is designed with a hot runner to ensure that the cavity is uniformly filled with melt with uniform pressure, so the molded part has uniform high quality) |
||||
|
[Surface finish]: A surface polished with 1000# sandpaper make the molding surface finer and smoother) |
|||||
|

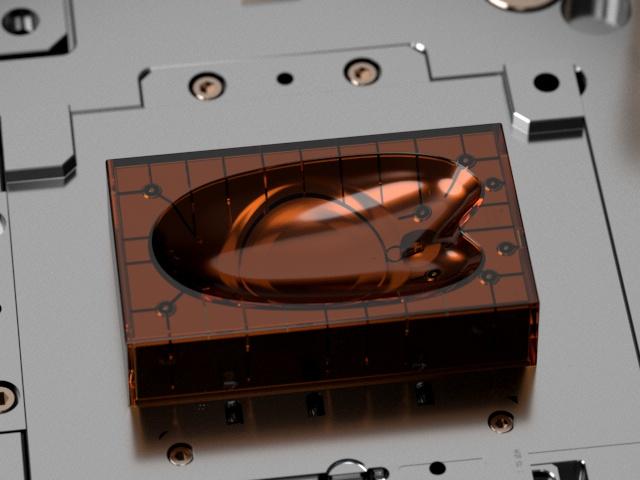

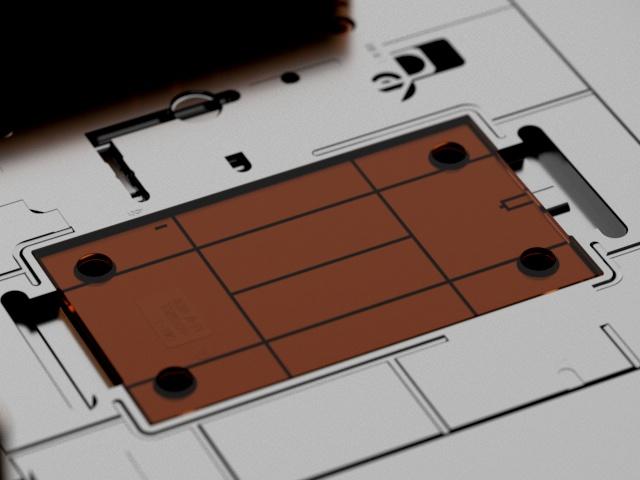

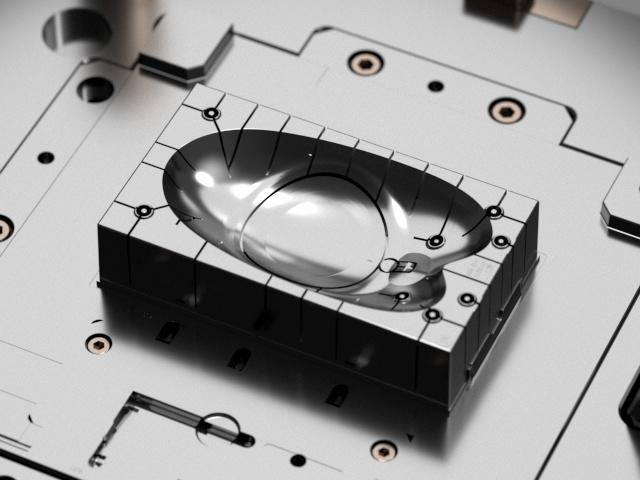

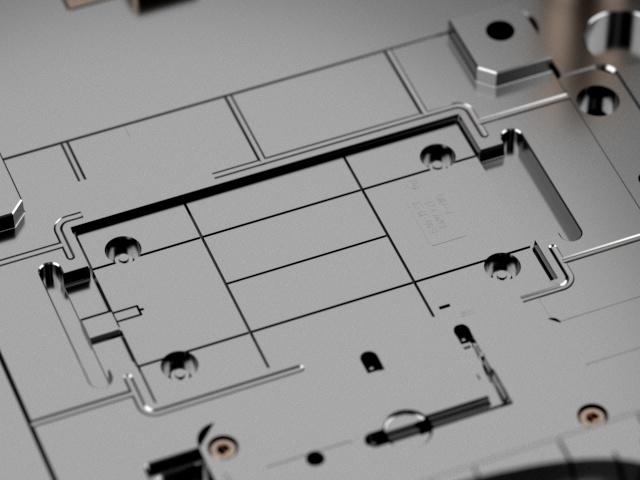

[Steel of cavity & core]: Harden (1*8/S136) anti-wearing and anti-corrosion performance, so that the mold is suitable for mass production and keep good quality) |
|||||

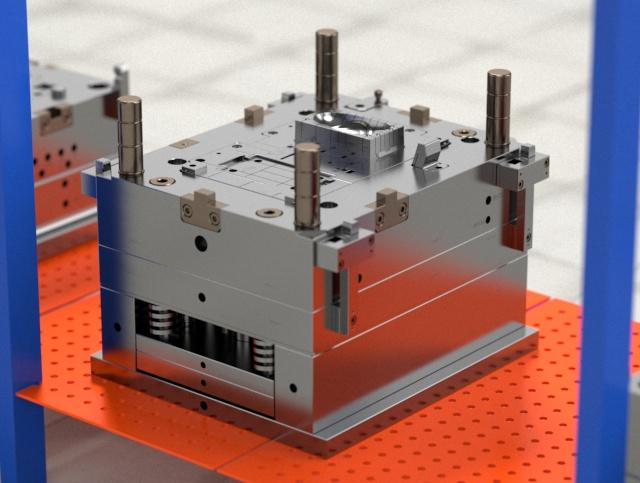

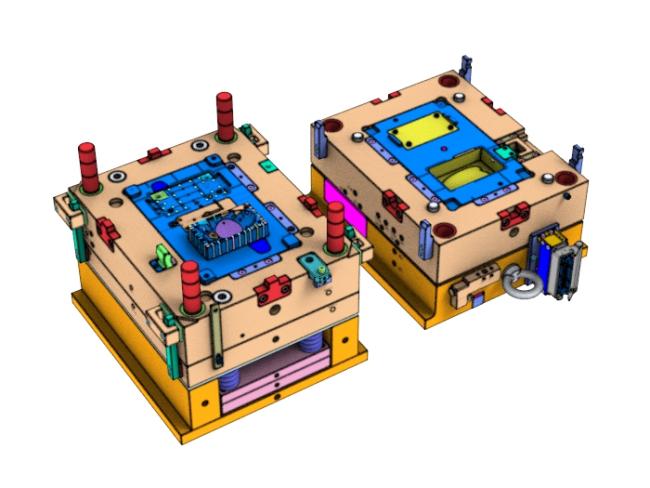

Display diagram
