Smartwatch Back Housing / Cold runner / Three-plates mold No.22399
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

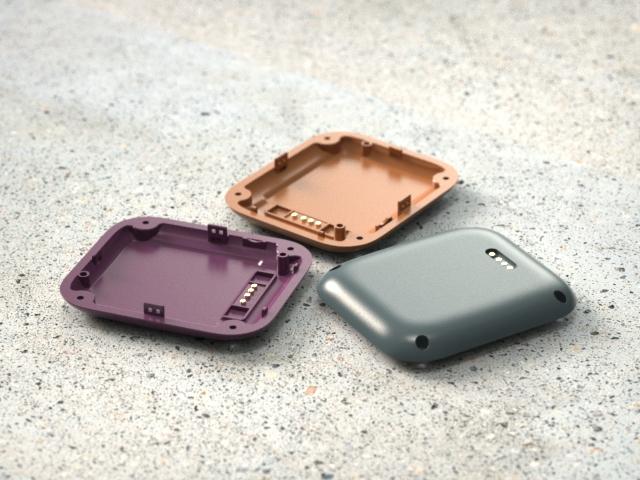

Smartwatch Back Housing
No.22399
Custom mold base DDI2530 1 set A = 60 B = 90 C = 80, sub gate,
the pin point gate turns to the side gate, LKM standard
| Size | Net weight | ||
| Length | 300 | ||
| Width | 300 | 195kg | |
| Height | 351 | ||
| Part material | Type | ||
| PC+20GF | Three-plates mold | ||
| Part weight | Injection/runner type | ||
| 4.1g | Cold runner | ||
| Part size | Standard | ||
| 40.4*47.3*4.95 | LKM | ||
The surface EDM with Charmilles VDI24#, the waterproof surface polished to 1000# sandpaper;
harden the cavity and core to have higher hardness and anti-wearing performance;
the advanced machining technology makes the mold good fitted and the tool life is
up to 500k shots
| Part material | PC+20GF |
| Features | 3 lifters |
IMM tonnage: 80T

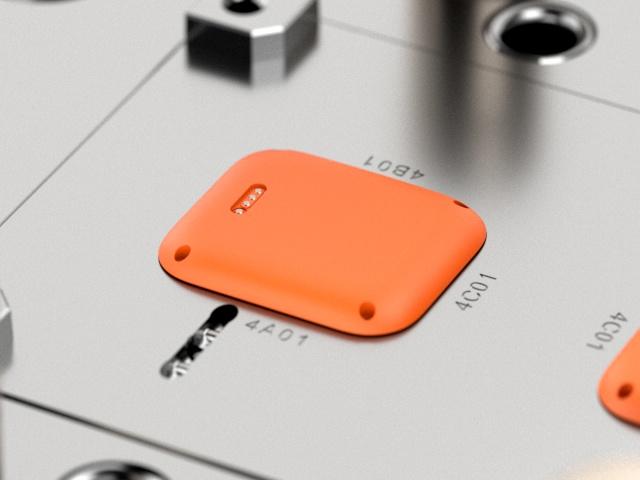

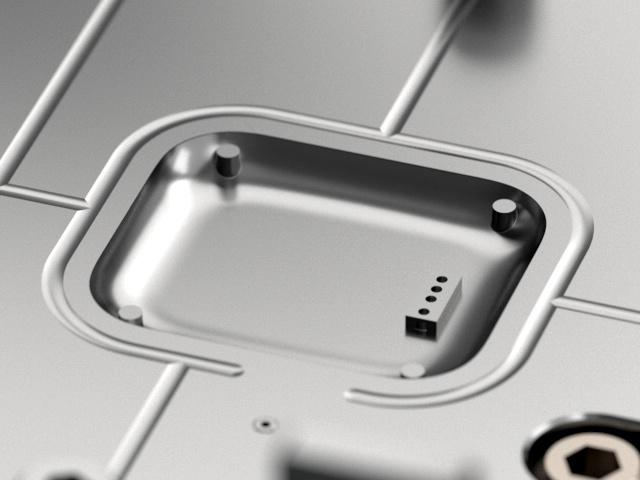

Display diagram
