OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Lock Nut (1*4) No.23915
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

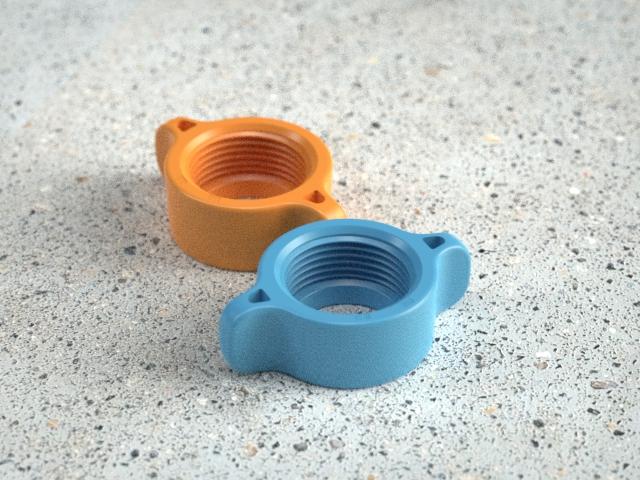

On-board Universal Joint Lock Nut (1*4)
No.23915
| Mold size/net weight: (L) 400x (W) 500x (H) 527mm /708 kg | |||||
| Mold base P/N: FCI3550 7010070 | |||||
| [Standard] - LKM | |||||
| Part material: PC | |||||
| Molding size 30.91 X 47.60 X 14.45mm, weight about 7.75g/pcs | |||||
| IMM Tonnage: 220T | |||||
| Injection/runner type: Hot runner | |||||
| Gate: Pin point gate | |||||
|

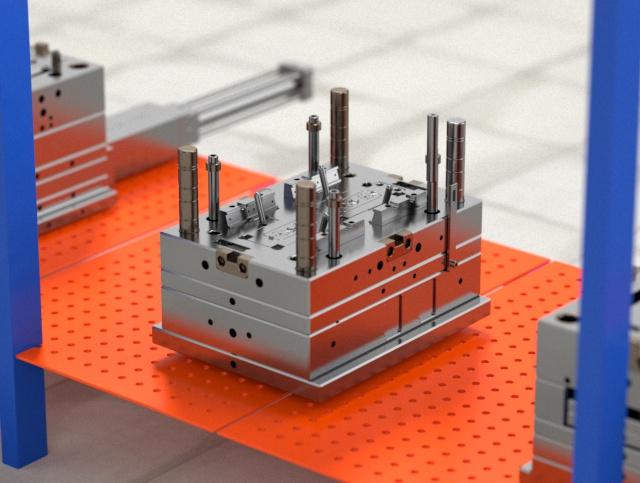

This is a 3-plates mold, filling easy and evenly, short cycle time,self-degating. With the hot runner and pin point gate, during the filling phase, the flow rate and temperature of melt rises, can get clearer,good glossiness parts. is required,which greatly saves the raw material cost and molding cost |
|||||

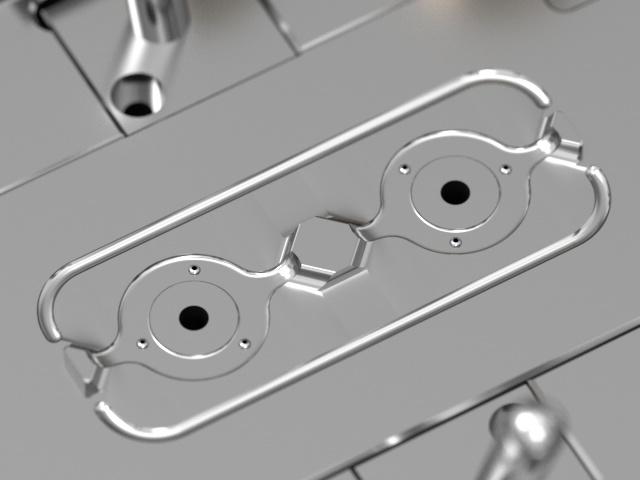

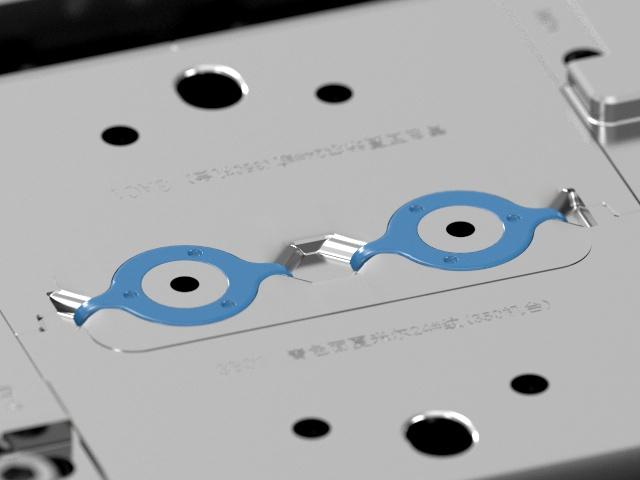

| Surface finish | Steel of cavity & core | ||||
| A surface EDM with VDI24# | Harden (1*4/S136) | ||||
|
touch-friendly surface, with certain glossiness and roughness. |
harded cavity and core, high hardness and anti-wearing, anti-corrosion. |
||||

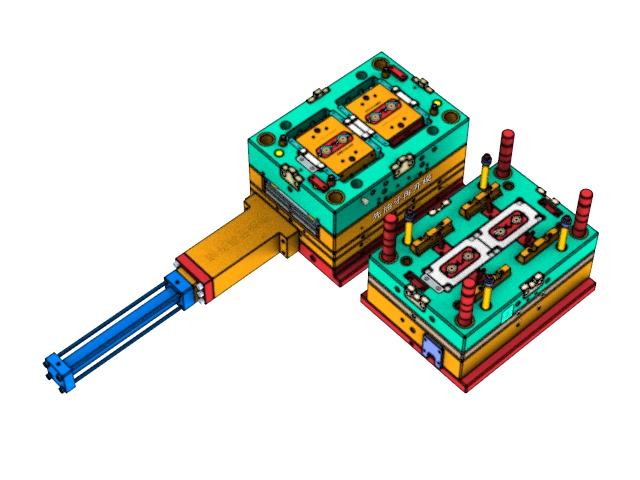

Display diagram
