OEM / ODM ： Multi Cavity Injection Mold & On-board Foot Rest Ball (1*4) No.23916

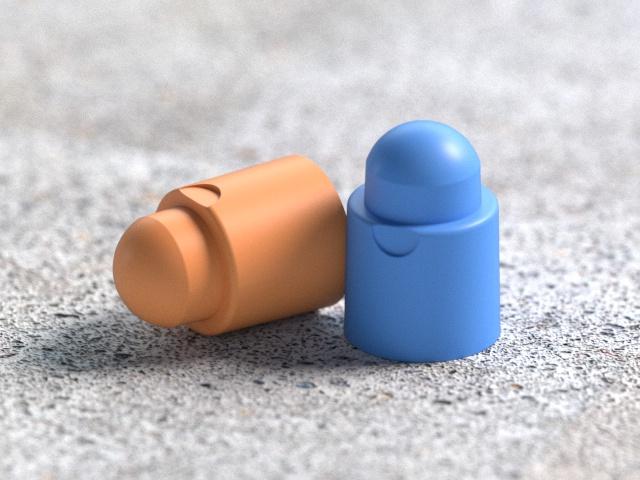

On-board Foot Rest Ball (1*4)
No.23916

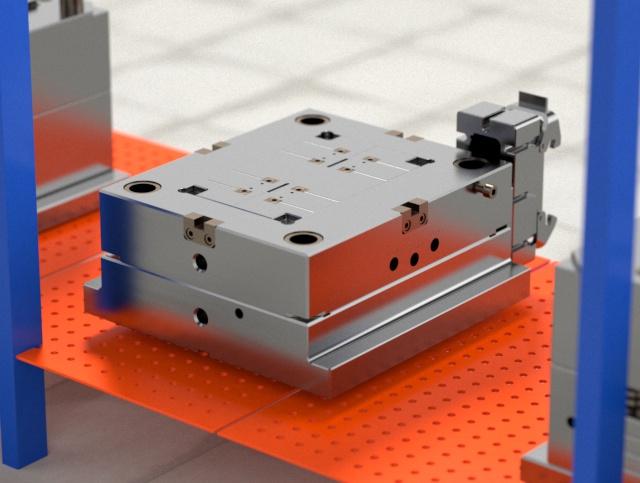

Mold base P/N:Custom CI2530 659090
| Mold size | Standard | Type | Net weight: 191kg, IMM tonnage: 130T |
||
| Length | Width | Height | |||
| 300 | 300 | 336 | LKM | Two-plates mold | |

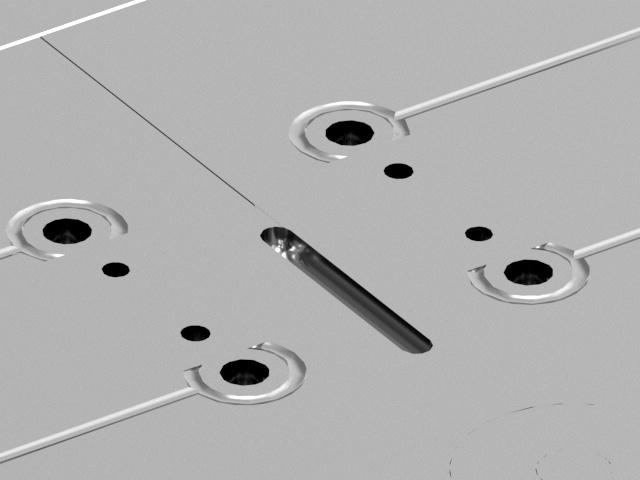

| Gate | The gate is hidden on secondary surface of the core, and it is invisible after the product is assembled. |
||||

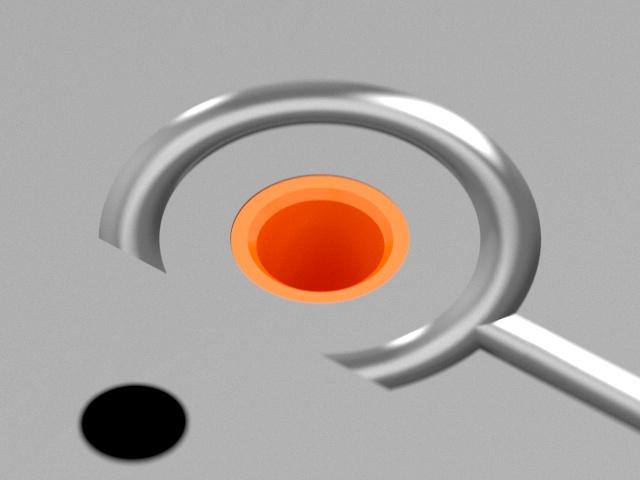

| Horn gate | |||||

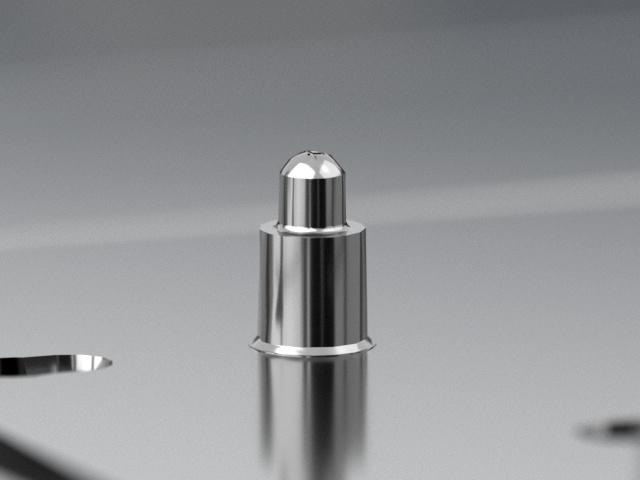

| Inner surface polished to SPI-B2, the mold surface is slightly glossy, w/o cutting marks. Part surface is smoother and cleaner, free of sticking with the mold. |
||||
Harden the cavity and core with 1*4/S136, so that the mold has higher hardness and good
anti-wearing and anti-corrosion performance. The tool life is up to 500K shots, and makes
the mold suitable for mass production.

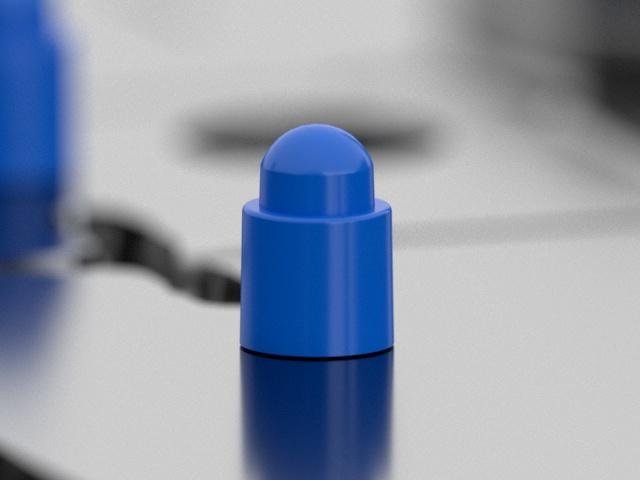

Part material: POM
Part size: 5.20 X 5.20 X 7.45mm
Part weight: 0.07g
|
The mold is designed with hot runner, with no material loss of runner,which greatly reduces the cost of materials. The molded part has more uniform high quality and smooth surface. The mold has good cavity seal performance, short cycle time, w/o flow marks and gas marks |
||||

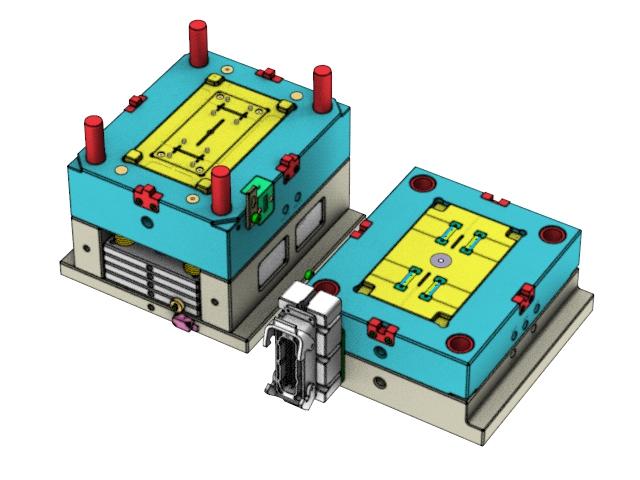

Display diagram
