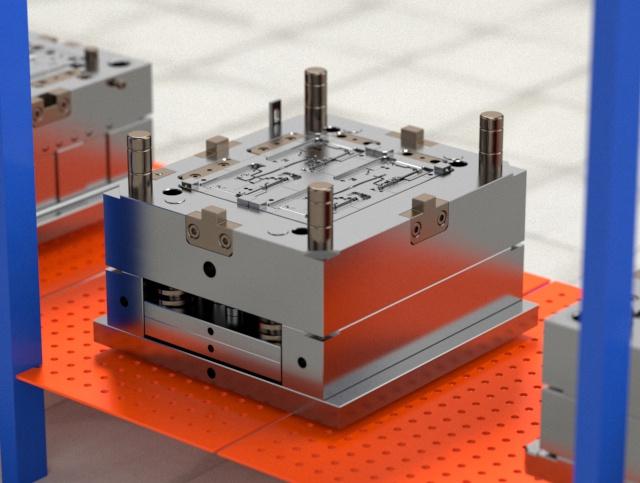

Transparent On - board Lower Bracket (1*4)

No.23912

【Mold base P/N】: CI3540 8010080
【Size】: L400 x W400 x H402.54 mm
【Standard】 :LKM

【Net weight】 :425kg

【IMM Tonnage】: 100T

【Gate】: The mold is designed with side gate(simple section and easy for tool build), and

                 good for filling too.
【Type】: With two-plates mold, simple structure, easy operation, robust and part free-fall.

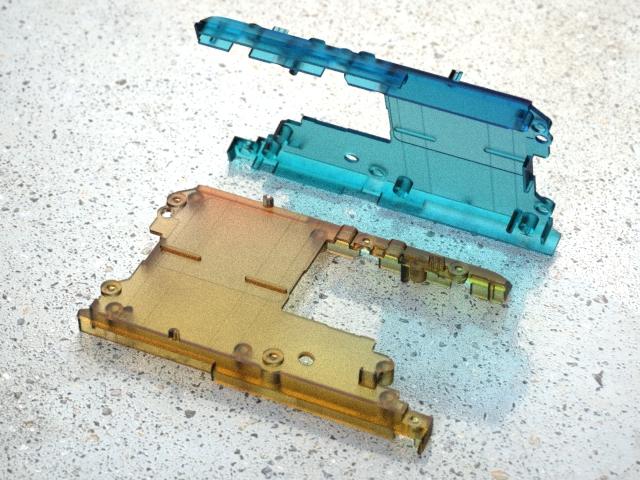

【Part material】: PC
【Part weight】: 5.51g
【Part size】: 56.90 X 85.68 X 12.25mm

【Injection/runner type】:

  This hot runner mold with low injection pressure loss. Melt fill in cavity with even

  temperature,pressure and density. Molded part with low residual stress and minimize

  warpage, high cosmetic quality and stable dimension.

  Short cycle time with fast mold cooling, fast filling, and high production efficiency, which

  meets customer's cost requirement.

【Steel of cavity & core】: Harden (1*4/S136)
【Surface finish】:

   ① A surface high polished to SPI-A3      ② Internal surfaces polished to SPI-B1
【Tool life】: 500k shots

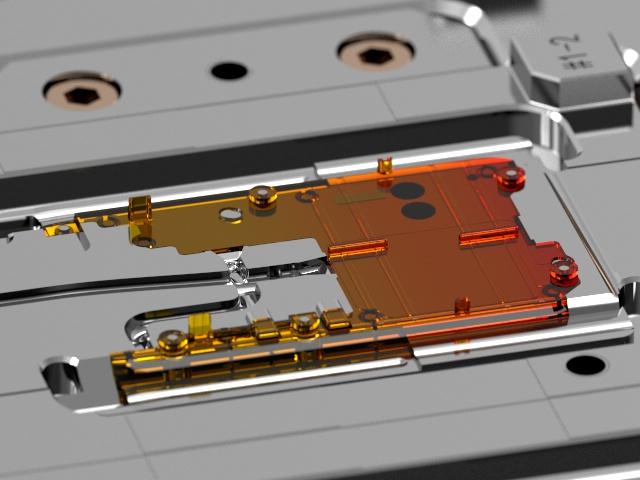

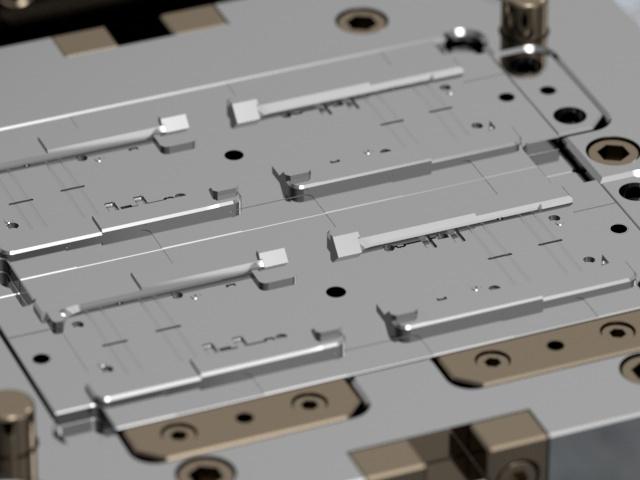

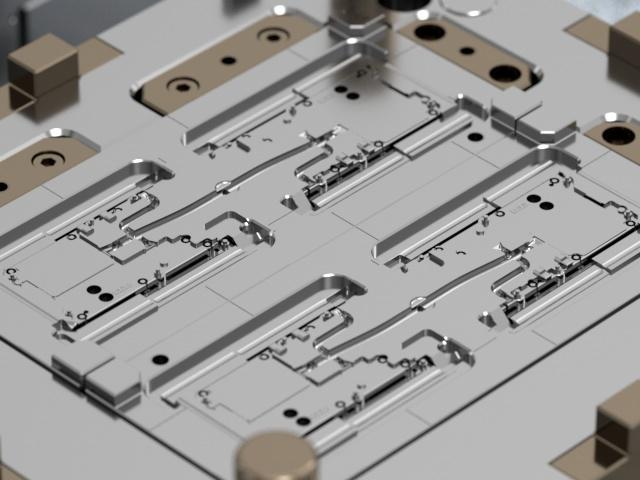

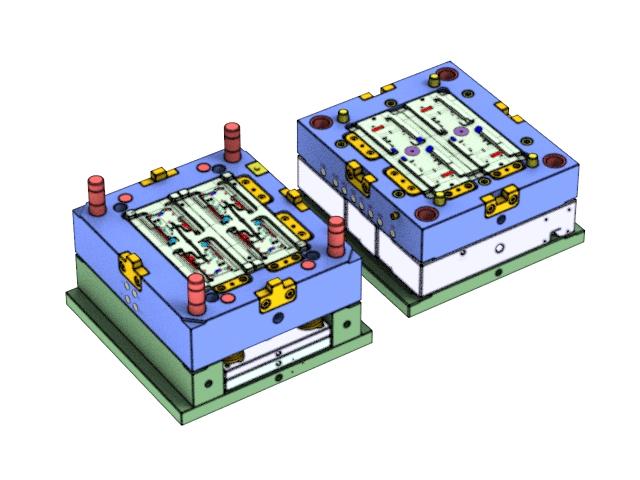

Display diagram
