OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Lock Nut(1*4) No.23915
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

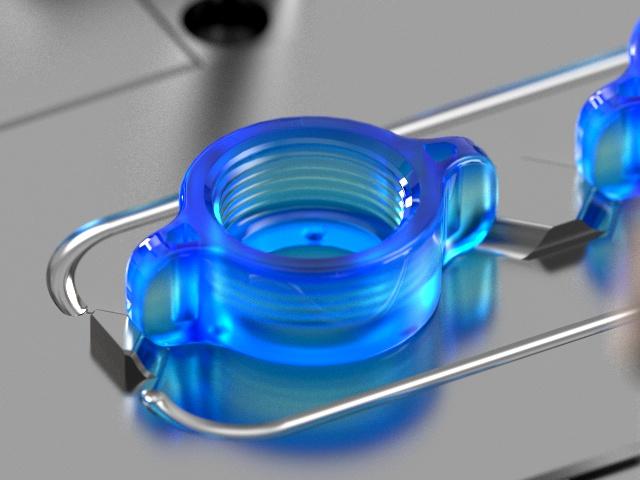

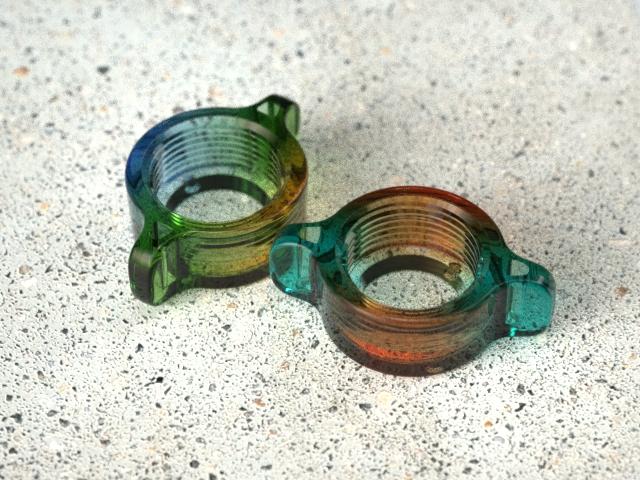

Transparent On-board
Universal Joint Lock Nut(1*4)
No.23915
| Brand | Chitwing | Mold size | Mold net weight | ||
| Mold base P/N | |||||
| Length |
Width |
Height | 708kg | ||
| FCI3550 7010070 |
400 |
500 | 527 | ||

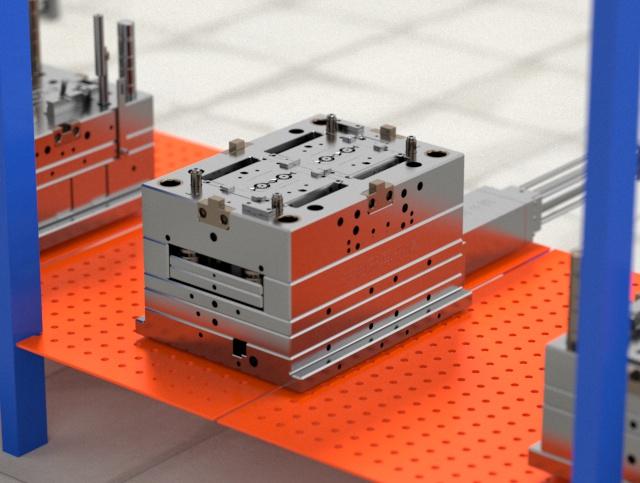

| ☆ [Standard]: LKM | ☆ [Type]: Three-plates mold |
| ☆ [Part material]: PC | ☆ [Part size]: 30.91x47.60x14.45mm |
| ☆ [Part weight]: 7.75g | ☆ [Gate]: Pin point gate |
| ☆ [Injection/runner type]: Hot runner | ☆ [IMM Tonnage]: 220T |

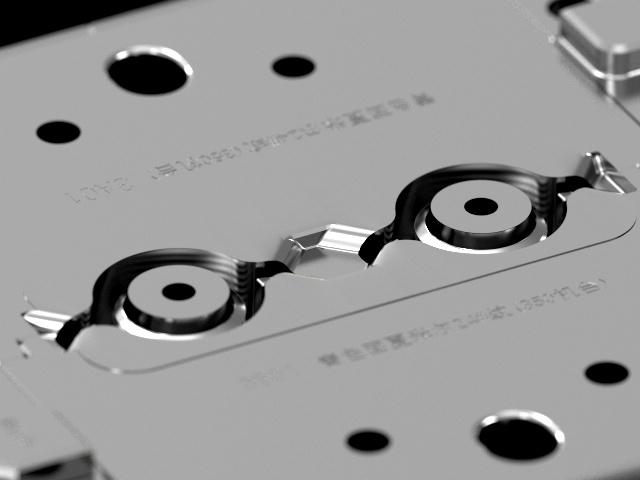

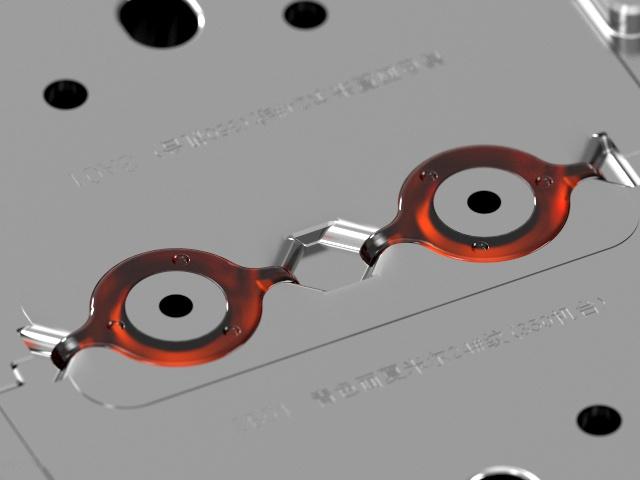

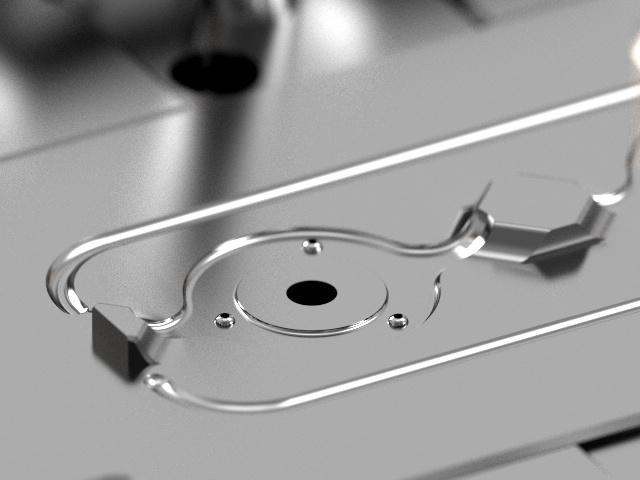

| ★ Surface finish | ★ Steel of cavity & core | ||||
| A surface EDM with VDI24# | Harden (1*4/S136) |
|
Injection / runner type: |
This is a hot runner mold, no material loss of runner, with stable molding quality and low residual stress and warpage. Can meet requirement of mass production quality, save material and labor cost. |
||||
| Hot runner | |||||

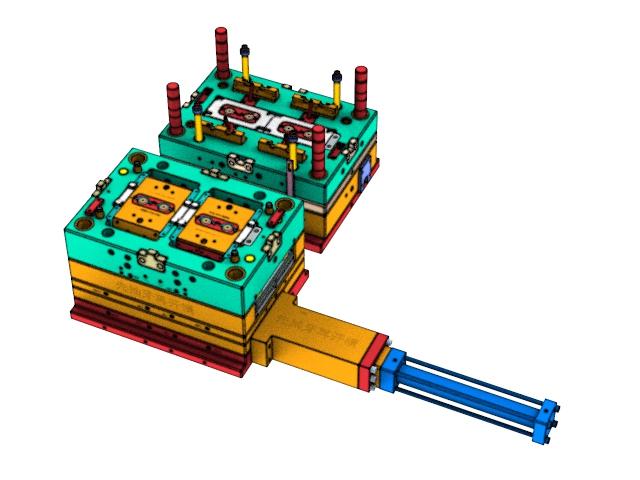

Display diagram
