OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916

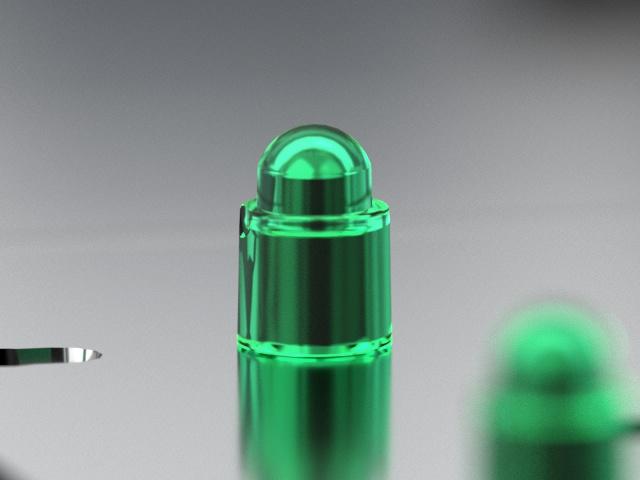

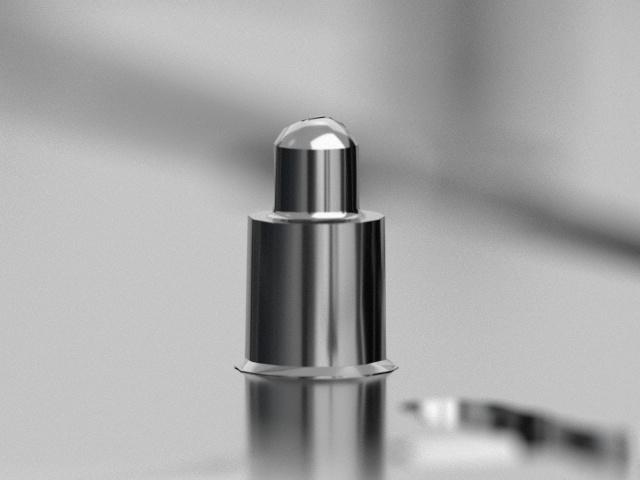

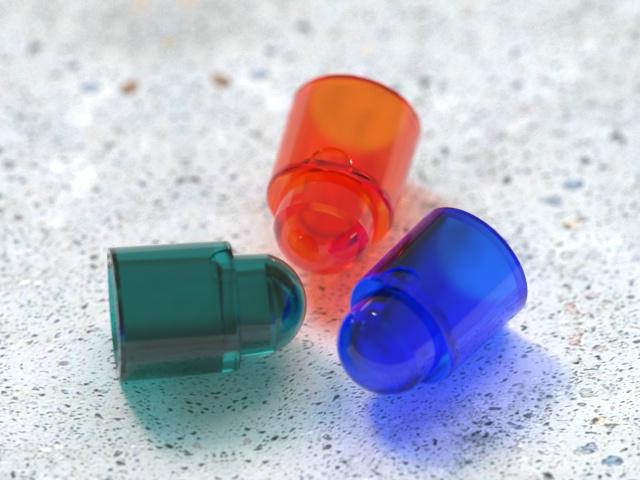

Transparent On-board Foot Rest Ball (1*4)
No.23916
Mold base P/N: Custom CI2530 659090.

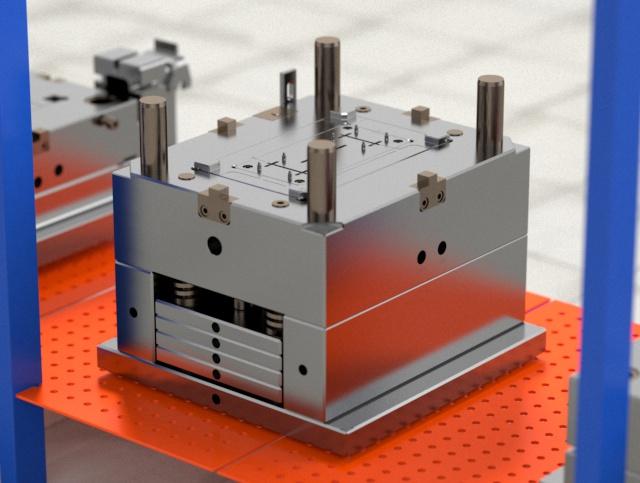

| ★ Mold size: 300x300x336 ★ Standard: LKM ★ Type: two-plate mold ★ Tool life: 500K shots |
Mold net weight | ||||
| 191kg | |||||
| IMM Tonnage | |||||
| 130T | |||||

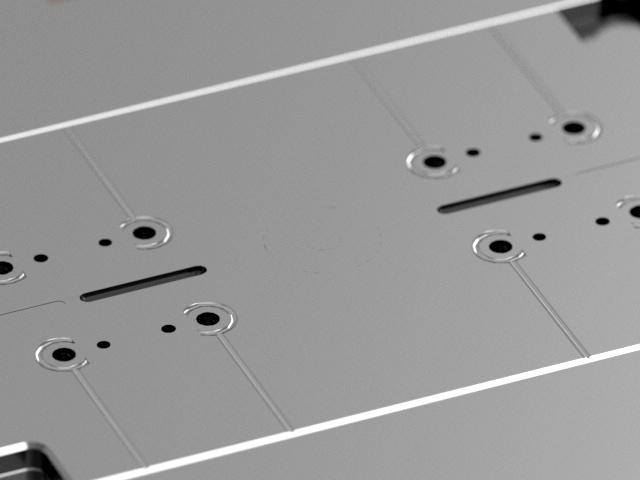

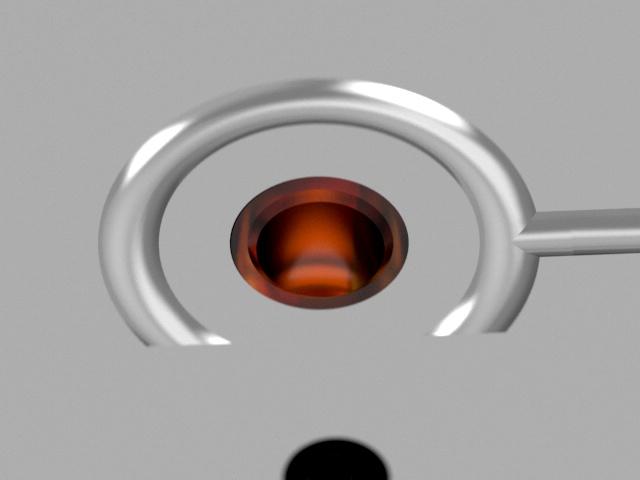

| Gate: horn gate | |||||
|
The gate is hidden on secondary surface of the core, and it is invisible after the product is assembled. |
|||||
| Part material: POM | |||||
|
It has high mechanical strength and rigidity, strong anti-corrosion and repeated impact resistance, good recoverability, self-lubricating property and good anti-wearing performance |
|||||
| Part size/weight: 5.20 X 5.20 X 7.45mm/0.07g | |||||
| Surface finish: Inner surface EDM with SPI-B2 | |||||
|
Increase the mold glossiness, w/o pits and scratches, so that the molded part is smooth and clean, w/o sticking with the mold. |
|||||
| Steel of cavity & core: Harden (1*4/S136) | |||||
|
The mold has higher hardness and brittleness, with good anti-wearing and anti-corrosion performance, higher stability and longer tool life. |
|||||
| Injection/runner type: Hot runner | |||||
|
The mold is designed with hot runner, so that material in the POM tube is uniformly heated and has uniform density to produce parts with uniform high quality, with short cycle time, w/o flow marks and gas marks |
|||||

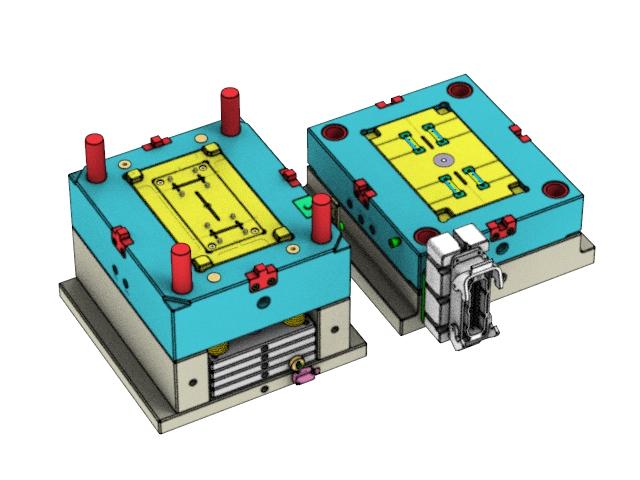

Display diagram
