VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

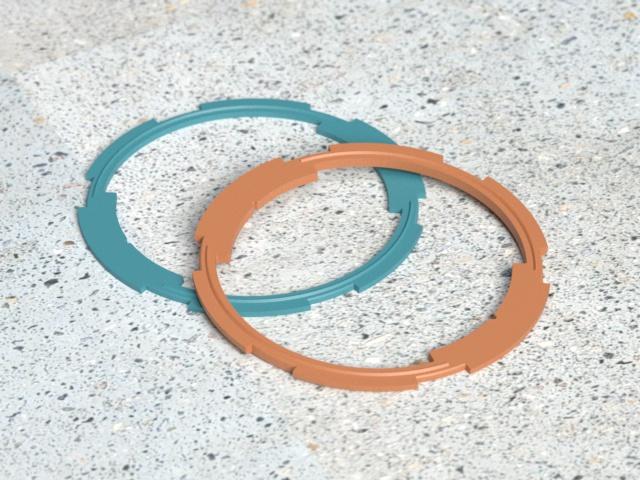

VR Rear Shell Ring (1*2)
No.22731
| Mold base | Standard mold base P/N: FCI2530.608080 | ||||
| Length | Width | Height | Injection/runner type | Standard | |
| 300 | 300 | 306 | Cold runner | LKM | |
| Gate | Side gate | The pin point gate turns to the side gate | |||
| This is a three-plates mold, which requires no post-processing and can realize auto demolding | |||||
| Mold weight | 166kg | ||||
| Tool life | 500k shots | ||||
| Part material | PC+ABS | ||||
| Part weight | 1.5g | ||||
| Part size | 49.16X49.16X2.0mm | ||||
| Surface finish | 1. A surface with MT11010 etch | ||||
| 2. Other surfaces EDM with VDI18# (Makino) | |||||
| Steel of cavity and core | Harden (1*2/S136) | ||||

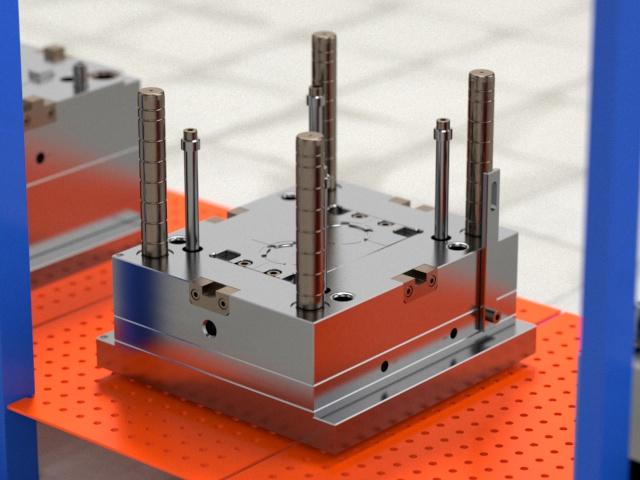

Display diagram
