Medical Instrument PN-1500 (1*4) / Two-plates mold / Cold runner No.21062
Medical Instrument PN-1500 (1*4)
No.21062
| Mold size |

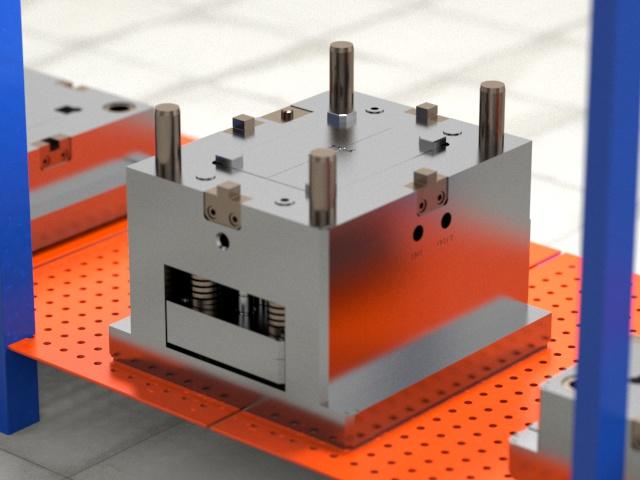

This is a two-plates mold designed with side gate and cold runner, with easy processing and degating, suitable for mass. Mold surface polished to SPI B-2 to improve the mold smoothness and hardness, anti-corrosion and anti-wearing performance, and the tool life is up to 500k shots |
Standard LKM |
||||||
| (L)250 X (W)250mm (H) 251mm |
||||||||
| Standard mold base: CI2025.507070 |
||||||||
|
Harden the cavity and core by 1*4/S136 to have high hardness, anti-corrosion and anti-wearing performance, continuously produce parts of stable quality, with short cycle time, complete and precise details, free of flow marks and gas marks |
||||||||
| Part material |

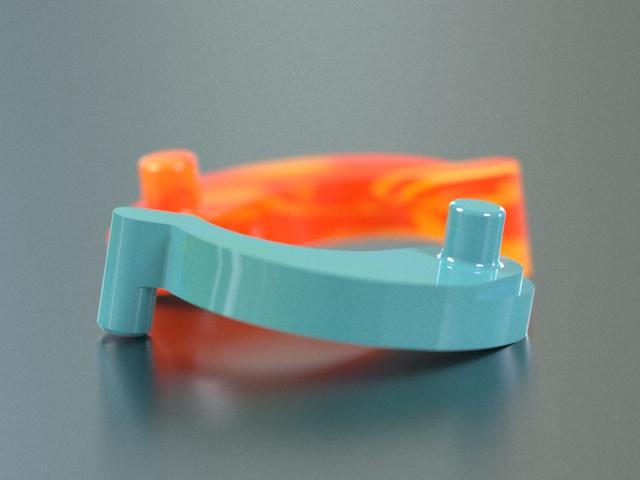

The part size is 3.86 X 7.78 X 3.25 mm and the part weight is only 0.03g |
||||
| POM | |||||
☆ Mold net weight: 94 kg
☆ IMM tonnage: 100T
Display diagram
