Medical Instrument PN-1797 (1*4)

No.21065

(1) LKM standard
(2) Standard mold base P/N: CI2025.507070
L250mm | W250mm | H251mm       |       ☆ Tool life: 500k shots

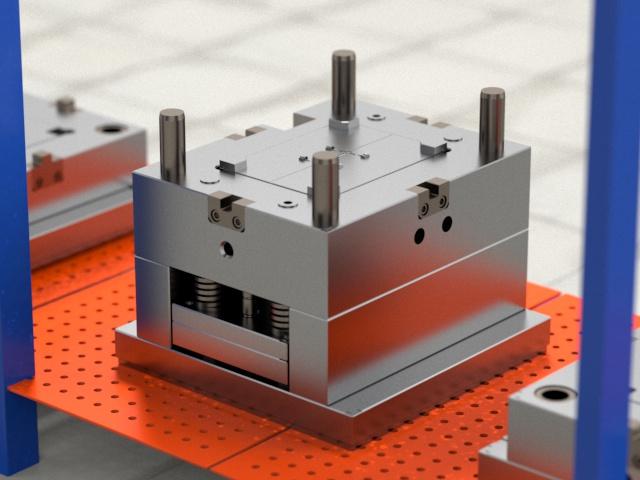

☆ Two-plates mold     ☆ Cashew gate

This is a two-plates mold with a side gate and cashew gate, part automatically cut off

when opening mold; with short cycle time, easy filling, smooth demolding, low cost,

meeting customers' cost-effective requirements

☆ Injection/runner type -- cold runner
☆ IMM tonnage: 100(T)
☆ Mold net weight: 94 (kg)

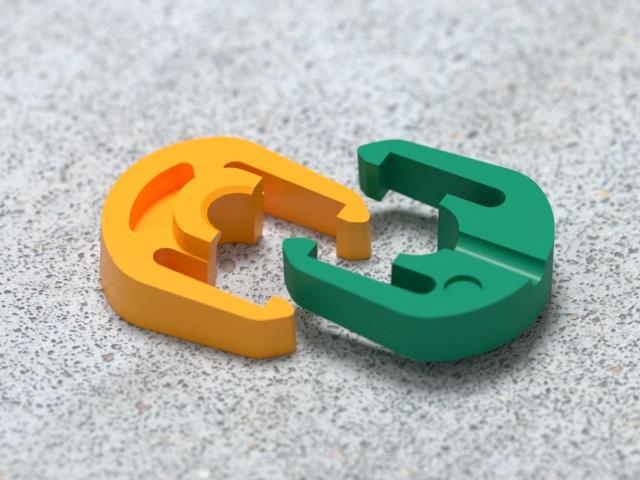

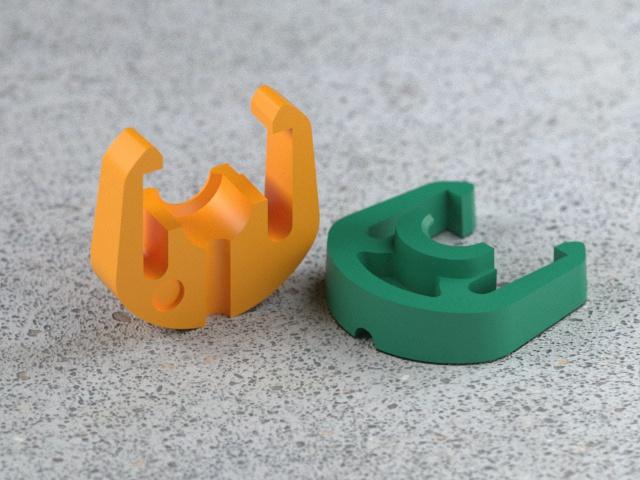

☆ Part material/weight/size: PC/0.22g/8.24 X 8.21 X 2.72mm

☆ Surface finish -- Polished to SPI B-2
☆ Steel of cavity and core: harden with 1*4/S136

Greatly improve the surface smoothness,

anti-wearing and anti-corrosion performance

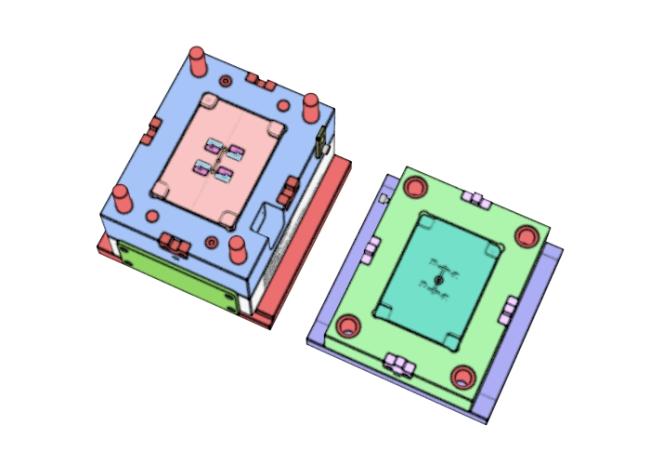

Display diagram
