Medical Instrument PN-1705 (1*2) / Two-plates mold / Cold runner No.21070
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Medical Instrument PN-1705 (1*2)
No.21070
| [L] 300mm [W] 500mm [H] 421mm [Standard]: LKM [Net weight]: 385kg [Mold base] Standard mold base P/N: CH2550 709080 |
|||||
| [IMM tonnage]: 130T | |||||
|
[Gate]: Direct gate with minimized gate marks, easy and fast filling) |
|||||
| [Injection/Runner Type]: Hot runner |
| [Surface finish]: | ☆ Partial surfaces polished to SPI B-2 ☆ Other surfaces polished with MT11010 ☆ Partial surfaces polished to SPI B-1 ☆ Partial surfaces polished to SPI A-2 |
||||
| [Steel of cavity and core]: | Harden (1*2/S136) | ||||
| This is a two-plates mold with hot runner and direct gate, with small cavity pressure loss and good fluidity, easy filling; polish the surface to improve smoothness; harden the cavity and core to have high hardness, anti-corrosion and anti-wearing performance; w/o cold slug, reducing material cost; short cycle time; the molded parts have clear details w/o flow marks and gas marks | |||||
| [Part material]: | PA12+15%GF | ||||
| [Part weight]: | 7.2g | ||||
| [Part size]: | 43.75 X 85.49 X 11.73mm | ||||

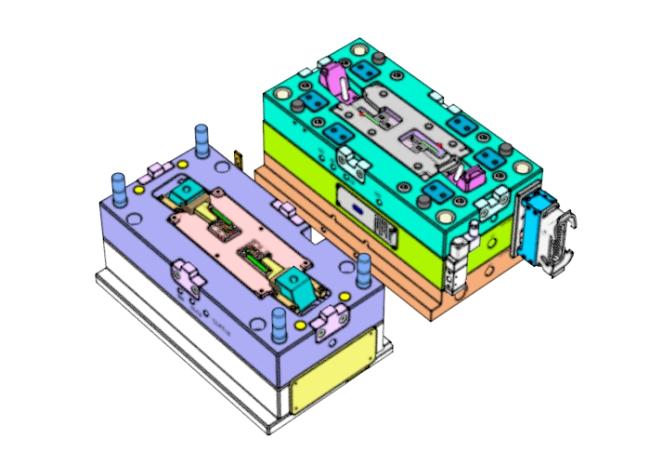

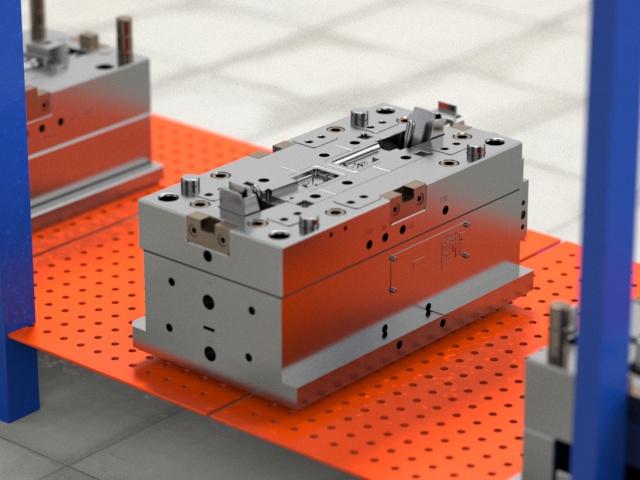

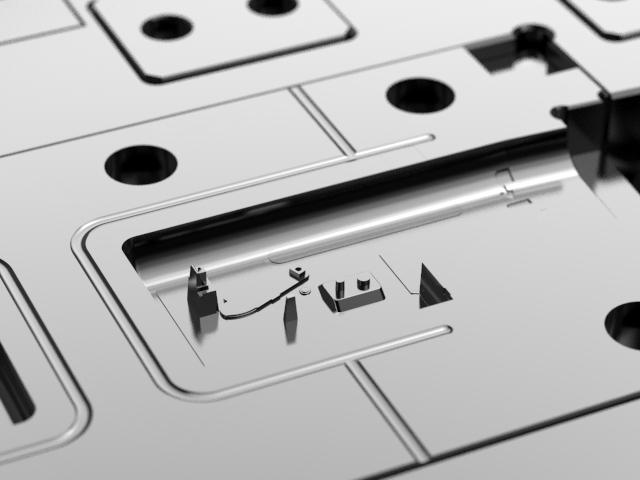

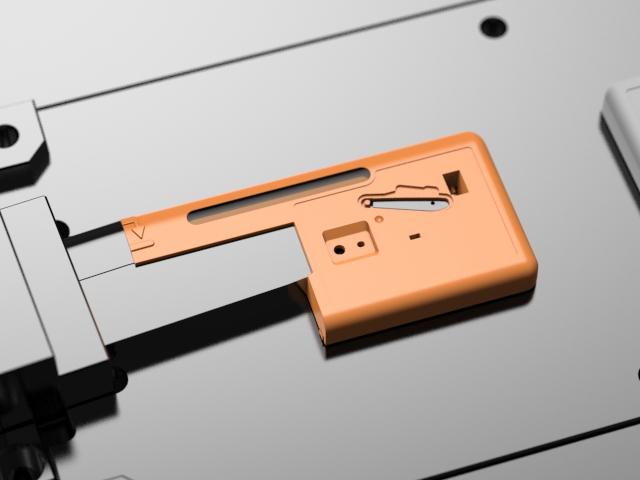

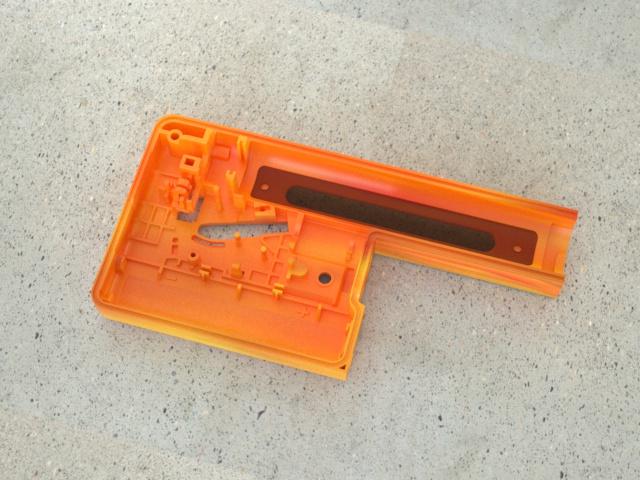

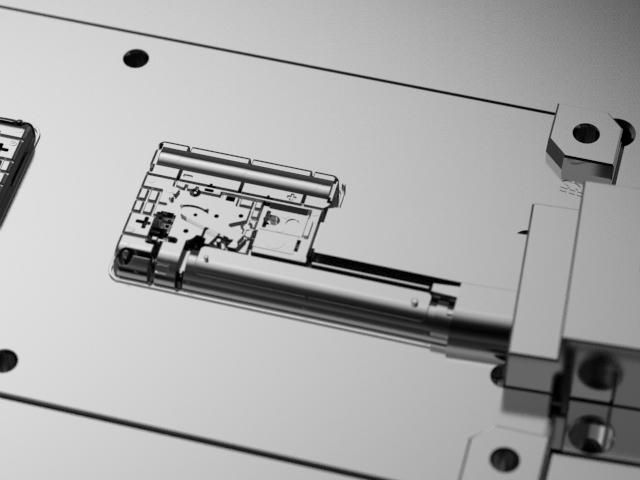

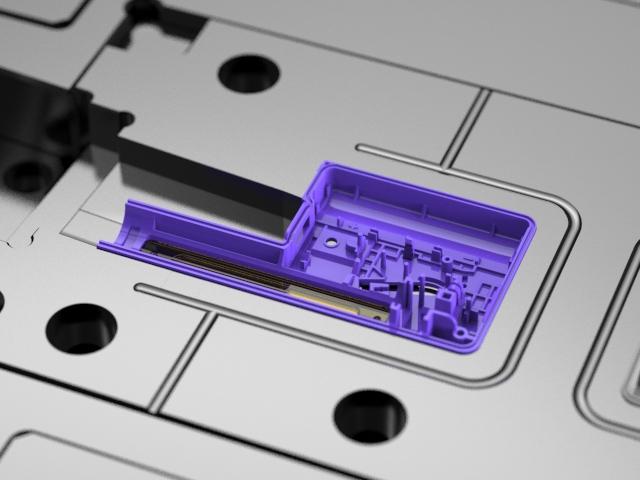

Display diagram
