OEM / ODM ： Precision Injection Molding & Left Bracket Of Earphone Charging Box (1*4) No.24199
left bracket of
earphone charging box (1*4)
No.24199
Standard mold base P/N: CI2527.609080
| Length | Width | Height | Net weight |
| 300 | 270 | 281 | 137kg |
The mold was developed (designed and manufactured) by Chitwing. It is made of high-quality
steel, with consideration of cost control, molding quality optimization and production capacity,
being a set of mold with high cost performance. The mold adopts side gate and mature
manufacturing process. A surface polished to SPI-A1, and the inner surface EDM with
VDI21# (Makino). Harden the cavity and core with 1*4/S136 to improve the hardness and
anti-wearing performance. The part has clear details. The tool life is up to 500k shots and fits
110T machine.
Standard: LKM
Injection/runner type: cold runner
Type: Two-plates mold
Features: 2 slides

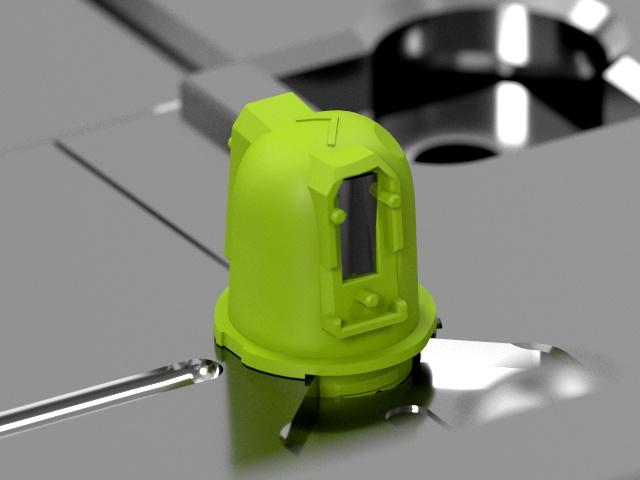

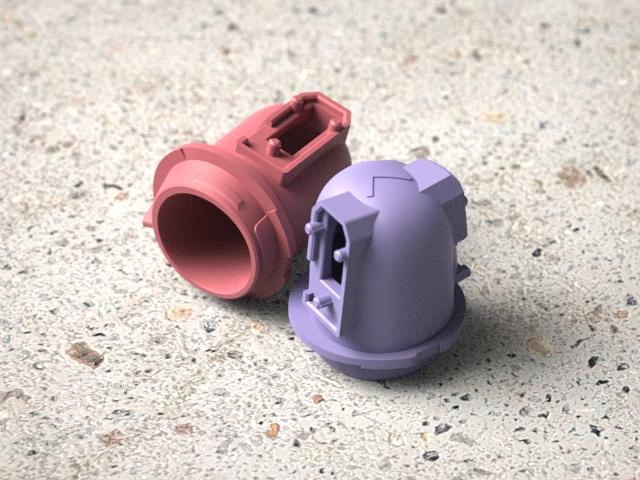

| Molded part | ||
| ① Material | ② Size | ③ Net weight |
| PC+ABS | 12.10 X 11.86 X 14.09mm | 0.6g |

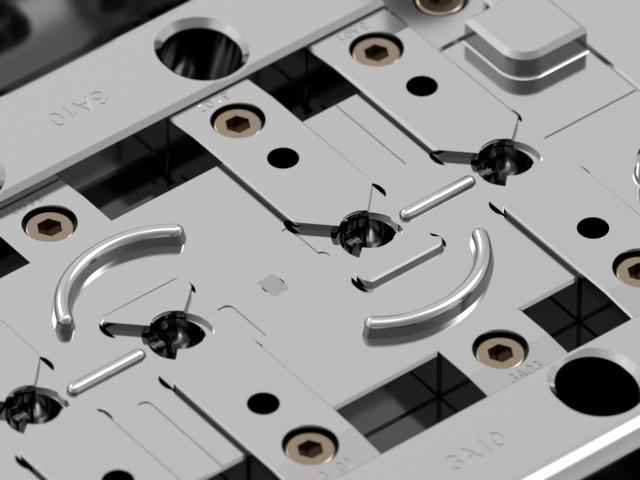

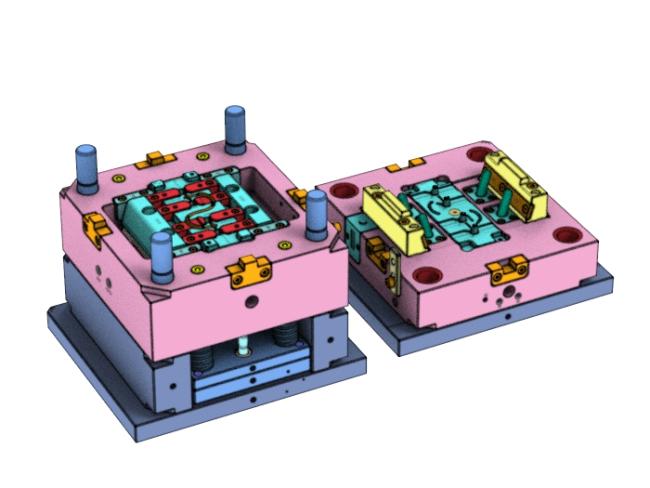

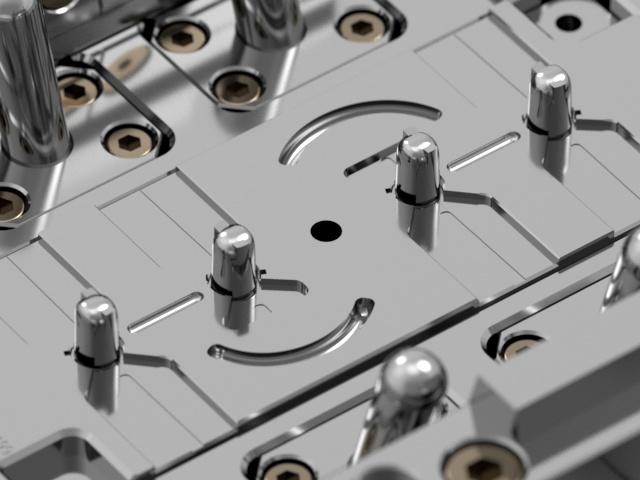

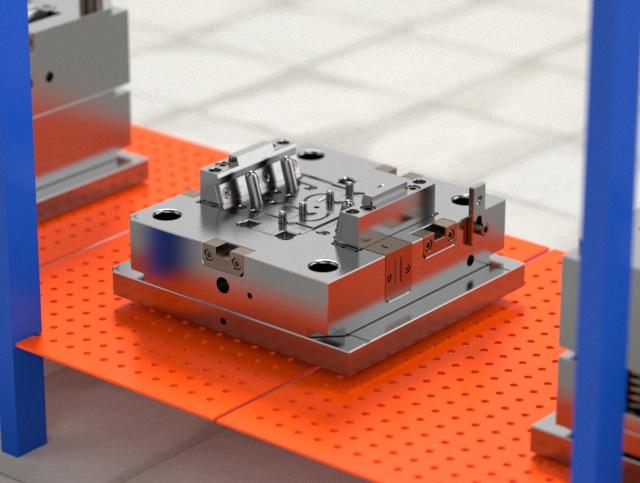

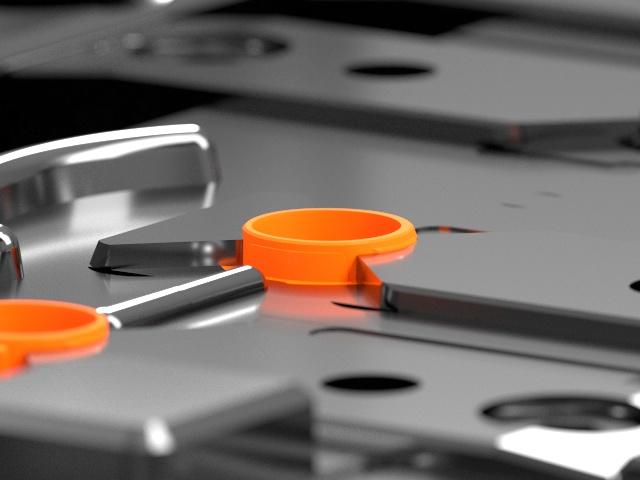

Display diagram
