OEM/ODM Custom Consumer Electronics Molds / Inner bracket of left rear cover of transparent earphone (1*8) No.24213
Transparent Earphone

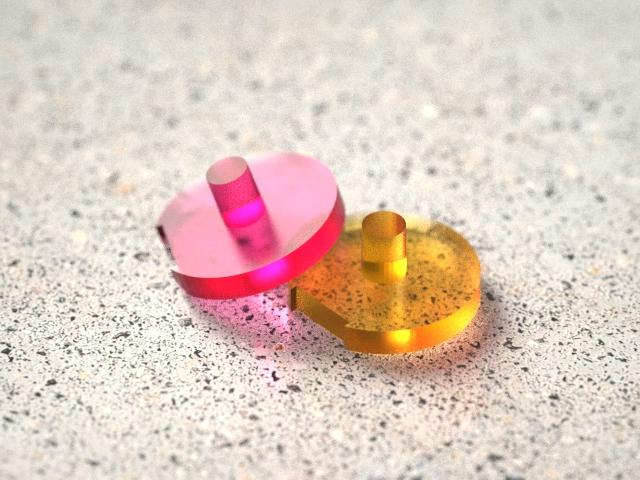

Charging Box Light Guide (1*16)
No.24213
Injection/Runner Type: Cold runner
Tool life: 500k shots
Part material: translucent PC
This mold was developed by Chitwing (design and manufacturing), using standard mold base,
LKM standard; the molded part has smooth surface and aesthetic appearance w/o burrs;
with mature processing technology, the mold surface hardness > 600HV, with high
anti-wearing and anti-fatigue performance; the mold is designed with cavity ejection pin to
achieve higher demolding efficiency
Mold size: 250 X 250 X 251mm, net weight 93kg, fit 80T machine; the part weight is only 0.2g,
and the part size is (L) 9.6 * (W) 8.6 * (H) 5.2mm
| Surface finish | A surface polished to SPI-A1 |
| Inner surface EDM with VDI21# (Makino) |
| Cavity | Harden with 1*16/S136 |
| Core |
IMM tonnage: 80T

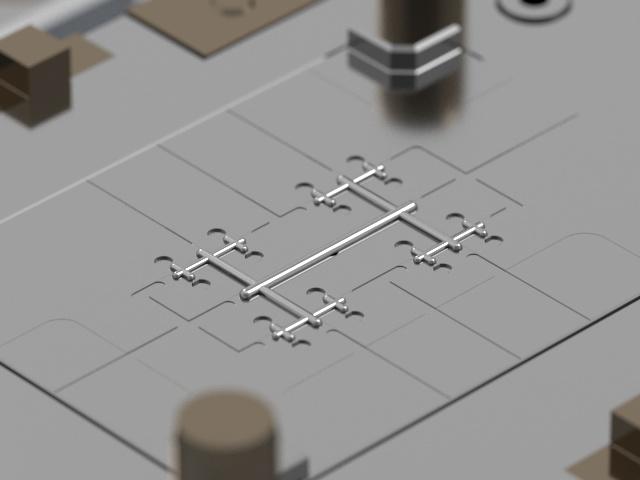

Display diagram
