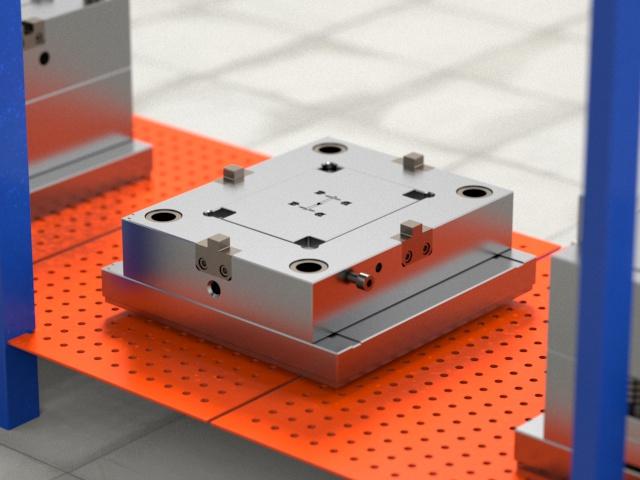

Transparent Medical Instrument PN-1797 (1*4)

No.21065

L250   |   W250   |   H251

Net weight: 94 kg        Standard mold base P/N: CI2025.507070
Standard: LKM

This is a two-plates mold with cashew gate to fill the melt from the inside, with short

cycle time, fast filling, minimized gate marks, smooth demolding, low cost to meet

requirements for long-term stable mass production; the molded parts have high

quality w/o burrs

Surface finish:Polished to SPI B-2
Steel of cavity and core: harden with 1*4/S136
Greatly improve the surface smoothness, anti-wearing and anti-corrosion performance

☆ Injection/runner type:cold runner
☆ IMM tonnage:100T

☆ Tool life:500k shots

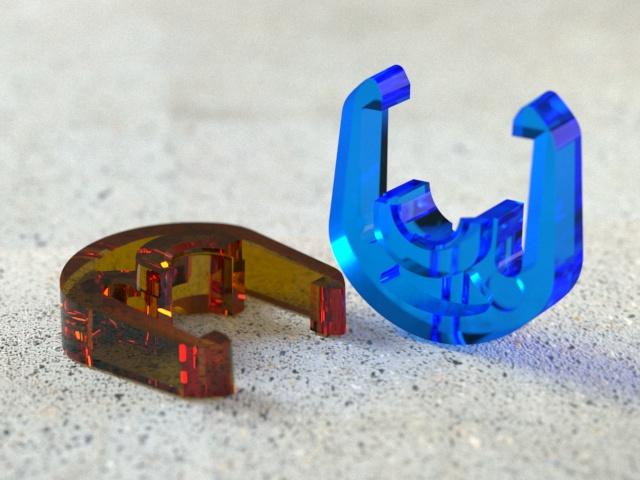

☆ Part material: PC
☆ Part size: 8.24 X 8.21 X 2.72 mm
☆ Part weight: 0.22g

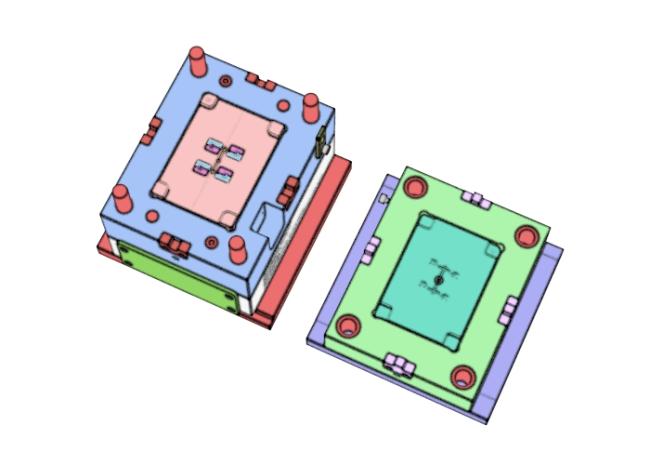

Display diagram
