OEM / ODM : Precision Injection Molding & Transparent Medical Instrument PN-2105 (1*4) No.21071

Price Negotiable
Price: Negotiable
MOQ: 1set
Delivery Time: 30 day(s)
Brand: Chitwing
Product Description

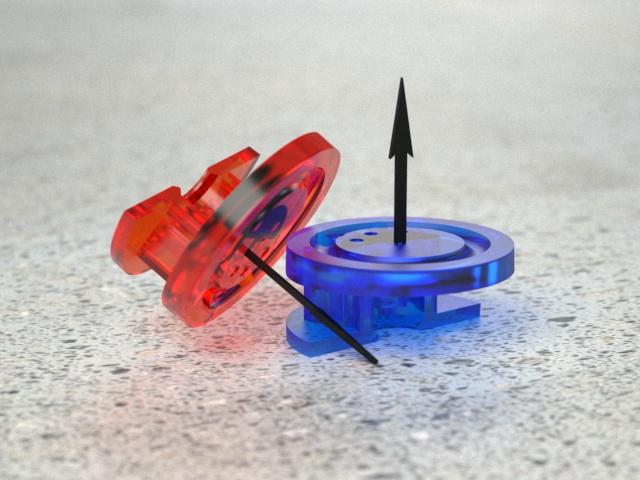

Transparent Medical Instrument PN-2105 (1*4)

No.21071



Standard mold base P/N: FCI2735 609080
[L320mm] [W350mm] [H326mm] Standard LKM
Gate Part material Surface finish Slide
Pin point gate PC Polished to SPI B-2 2
  ☆ Steel of cavity and core: harden with 1*4/S136
  ☆ Type: three-plates mold
  ☆ Tool life: 500k shots

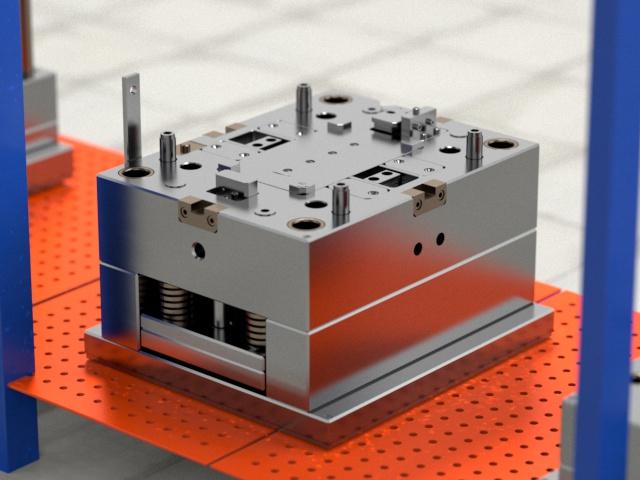

The mold is developed (designed and manufactured) by Chitwing with two slides and hot runner. The pin point gate and uniform pressure ensure melt fill the cavity evenly to obtain parts with uniform quality and uniform thickness, good for automatic mass production. The mold surface is smooth, with low demolding stress, preventing molded parts from deforming





  Mold weight   IMM Tonnage   Part weight   Part size
  225kg   100T   0.12g   9.24x9.24x4.00mm

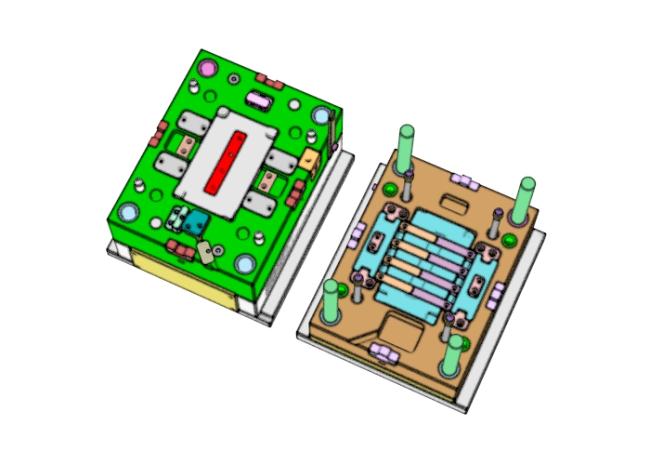

Display diagram
