OEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-B
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Upper cover of transparent
earphone charging box
No.24195-B
Brand: Chitwing
Origin: China
The mold was developed (designed and manufactured) by Chitwing, and is designed with hot
runner free of cold slug to save costs and reduce production loss and short cycle time.
Hot runner turns to cold runner sub gate. Surface finish: 1. A surface polished to SPI-A1;
2. Secondary surface polished to 1000# sandpaper; 3. Other surfaces EDM with
VDI21# (Makino). Harden the cavity and core to have high hardness and good anti-wearing
performance; and the cavity and core > 50HRC.
| Mold net weight | 315kg | Standard | LKM |
| Length | 350 | Features |
2 slides |
| Width | 400 | 5+1 gate lifters | |
| Height | 351 | IMM Tonnage | 130T |
| Part material | PC+ABS |
| Part weight | 4.5g |
| Part size | 62.89X23.96X20.53mm |

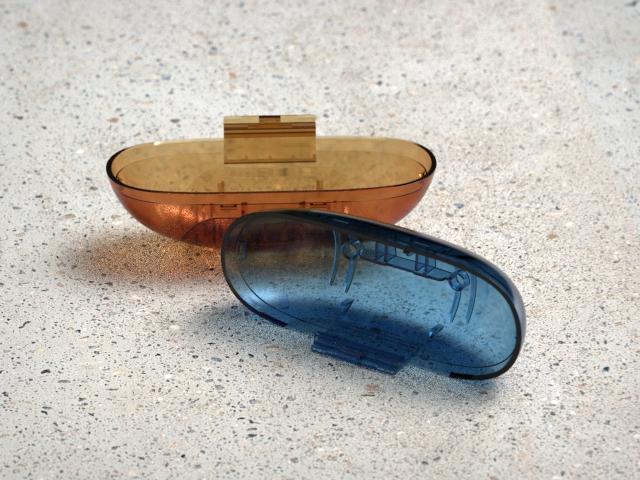

Display diagram
