OEM / ODM ： Precision Injection Molding & Lower inner cover of transparent earphone charging box No.24198
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description
Lower inner cover of
transparent earphone charging box
No.24198
| Mold size | Net weight | |
| Length | 300 | 206kg |
| Width | 300 | It fits 130T machine. |
| Height | 366 | |
| Mold base: Standard CI2530.80110110. | ||
| Gate | The hot runner turns to the cold runner |
| Cashew gate |
Standard: LKM
| Surface finish | A surface polished to SPI-A1 |
| Inner surface EDM with VDI21# (Makino) | |
Features: 6 lifters

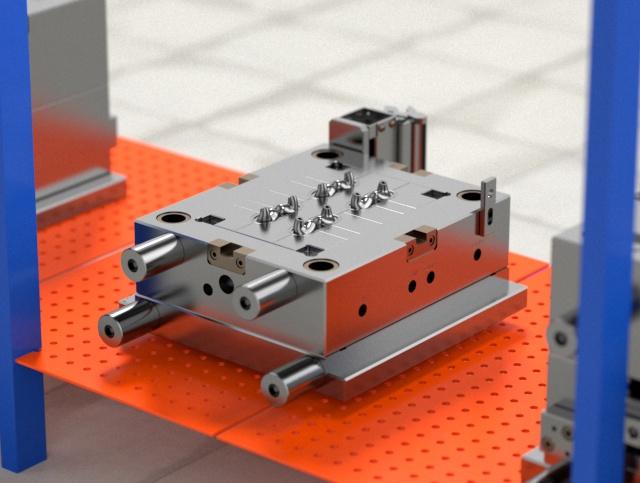

The mold was developed (designed and manufactured) by Chitwing. It is made of
high-quality steel with surface hardness > 600HV. It is a two-plates mold. Harden the
cavity and core with 1*4/S136 to improve the surface hardness and anti-wearing

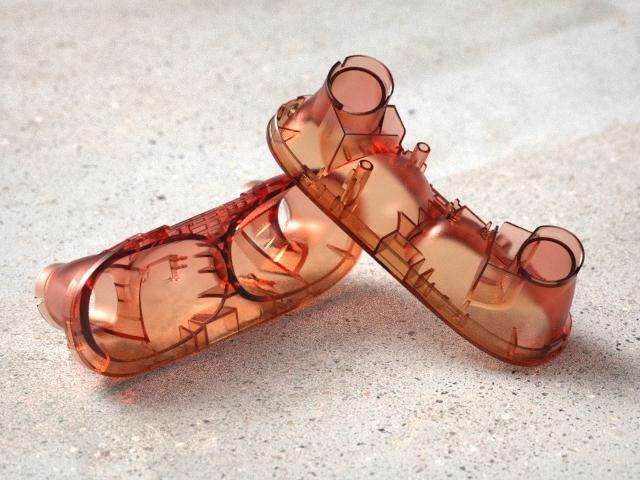

performance. The tool life is up to 500k shots. The part material is PC+ABS.
The part size is 61.4 * 21.7 * 18.1mm, the part weight is 3.5g, with smooth surface
w/o defects and clear details.

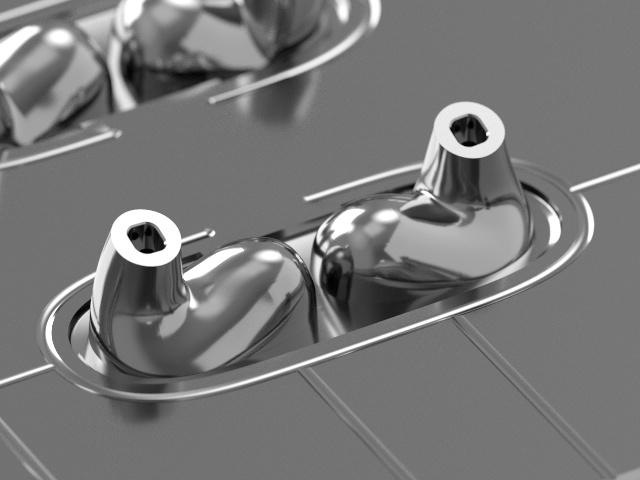

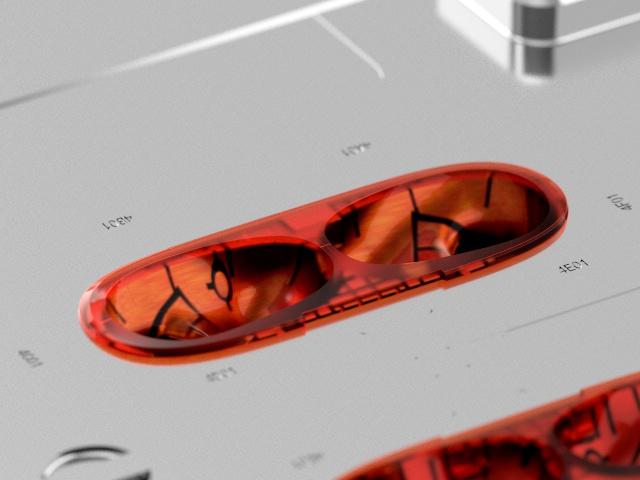

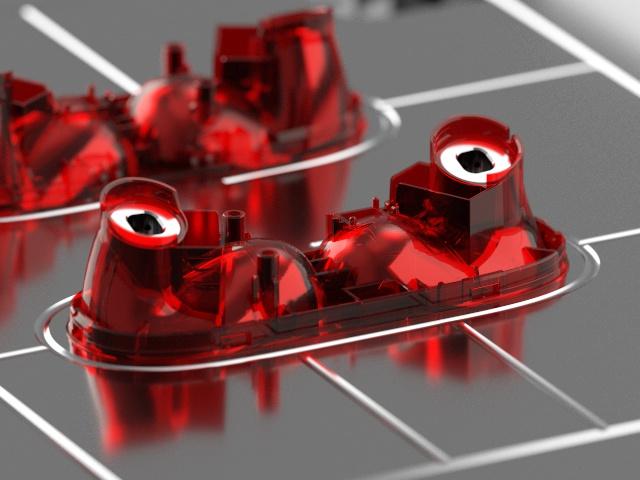

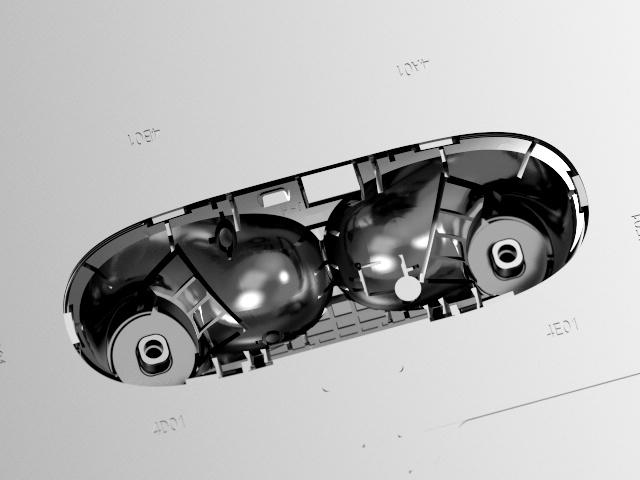

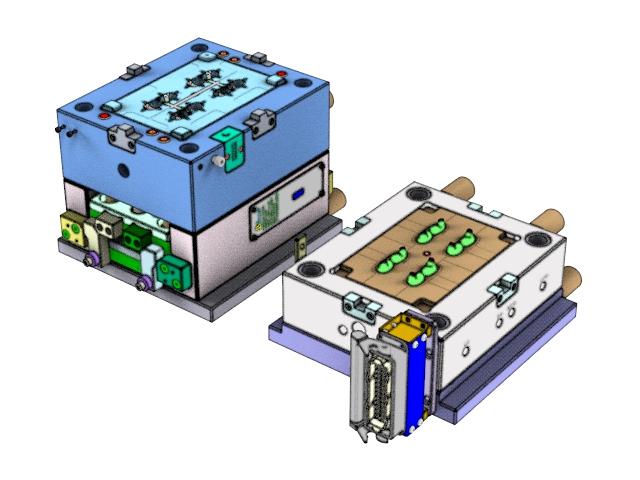

Display diagram
