Transparent Battery Case (1*2) / Cold runner / Three-plates mold No.24500

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 30 day(s)

Brand: Chitwing

Product Description

Transparent

Battery Housing (1*2)

No.24500

Chitwing		Mold base: custom mold base FCI3527.110100105				Mold weight
Length	320	Width	350	Height	426	294kg
LKM standard		Three-plates mold		Cold runner		IMM Tonnage
						110T

The mold is designed with mold base > HB280, tab gate, and the pin point gate turns to the side gate to ensure the melt flow.

The mold surface polished to 1000# sandpaper to increase the surface glossiness, so that the molded part is smoother w/o sticking with the mold; harden the cavity and core with 1*2/S136 to improve the hardness (> HRC50) and anti-wearing performance, meeting the requirements for mass production; tool life up to 500k shots. The push plate structure provides uniform thrust and smooth demolding, preventing molded parts from deforming

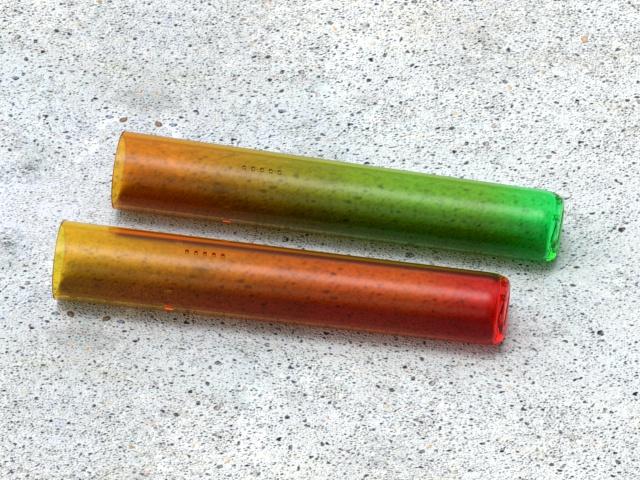

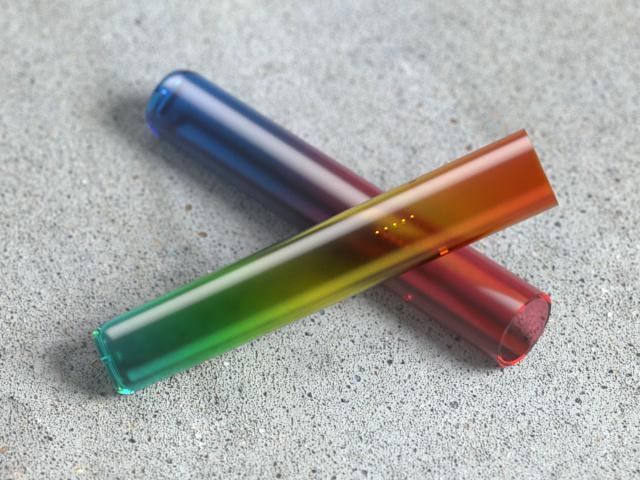

Part material
PC+ABS

Part Size/Weight
Φ16.0*90.0mm / 4.98g

☆ Features:Push plate

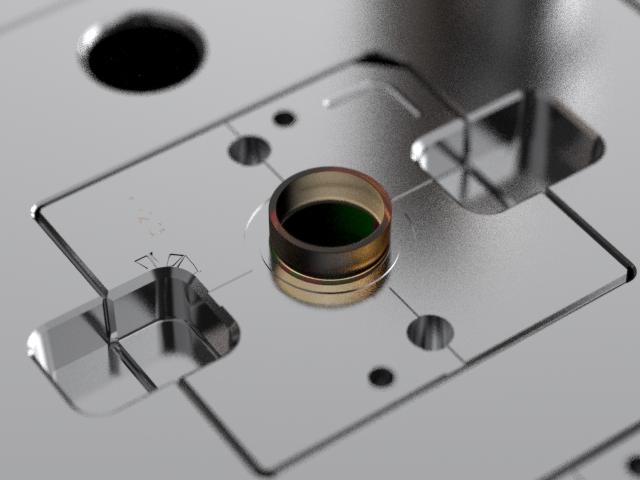

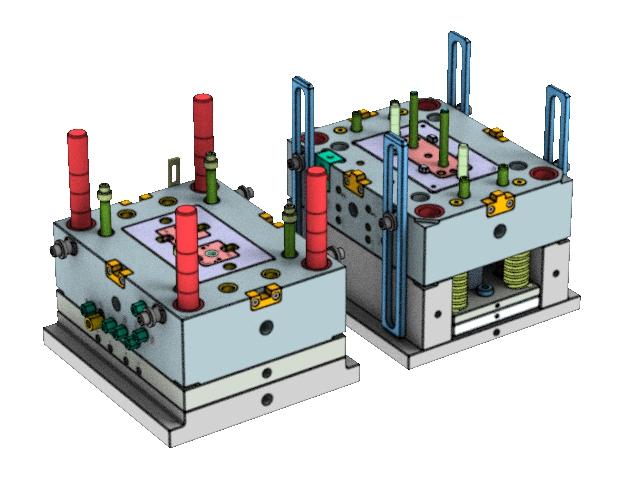

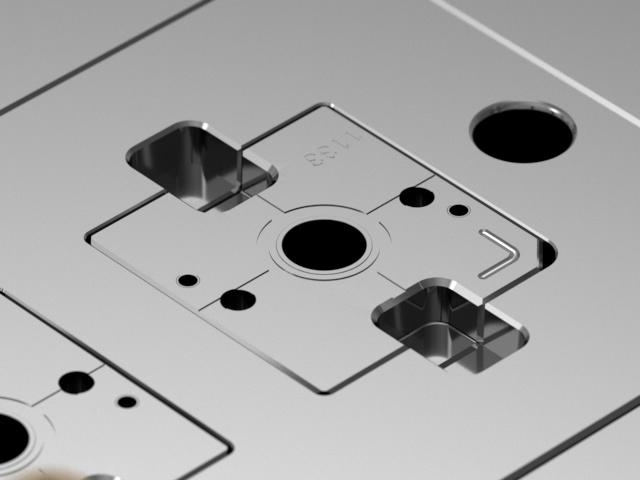

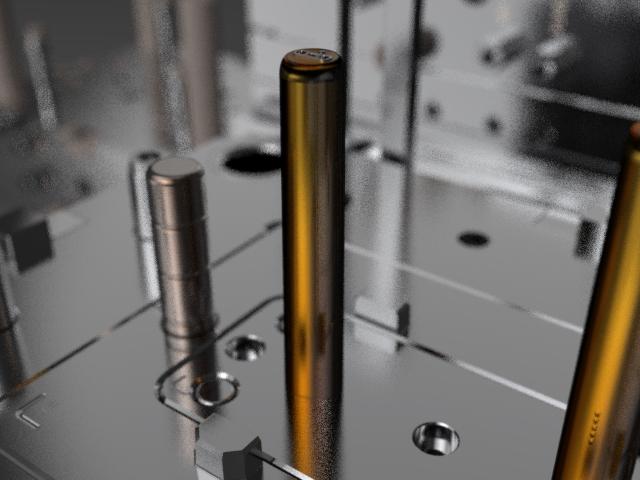

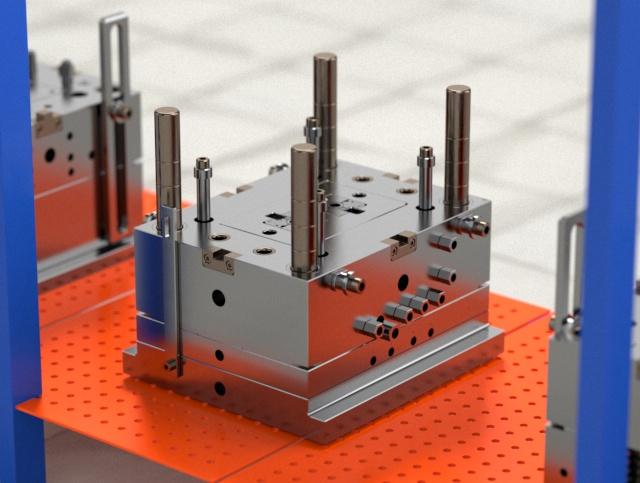

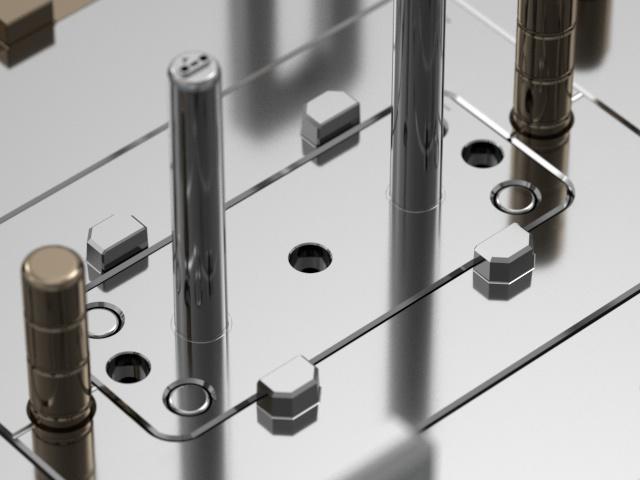

Display diagram

The mold is designed with mold base > HB280, tab gate, and the pin point gate turns to the side gate to ensure the melt flow. The mold surface polished to 1000# sandpaper to increase the surface glossiness, so that the molded part is smoother w/o sticking with the mold; harden the cavity and core with 1*2/S136 to improve the hardness (> HRC50) and anti-wearing performance, meeting the requirements for mass production; tool life up to 500k shots. The push plate structure provides uniform thrust and smooth demolding, preventing molded parts from deforming
