OEM / ODM ： Single Cavity Injection Mold & Router Upper Cover (1*1) No.23891
Price:
Negotiable
MOQ:
1set
Delivery Time:
30 day(s)
Brand:
Chitwing
Product Description

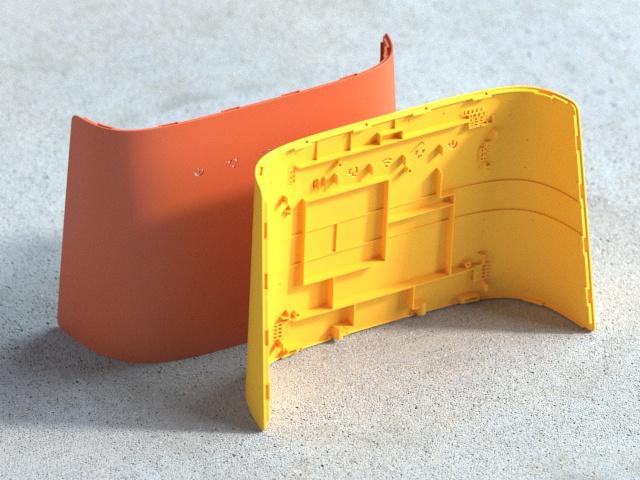

Router Upper Cover (1*1)
No.23891
Mold base: FCI4555 A100B150C130
Size: 550.000 X 550.000 X 516.000mm
| Size | Mold base: FCI4555 A100B150C130 | Net weight | |||
| Length | Gate: sub gate (the pin point gate turns to the side gate) | 927kg | |||
| 550 | |||||
| Width | Standard | Type | Slide | Lifter | IMM Tonnage |
| 550 | |||||
| Height | LKM | Three-plates mold | 2 | 6 | 180T |
| 516 | |||||
| Part material | PC+ABS | Surface finish | Steel of cavity and core | ||||
| Tool life | 500k shots | A surface VDI27# etch | Harden (1*1/S136) | ||||
| Injection/runner type | Hot runner | ||||||
| Part weight | 68.5g | ||||||
| Part size | 181.71 X 124.50 X 57.56mm | ||||||
The mold is designed with sub gate, with flexible gate position, self-degating, minimized gate marks,
2 slides and 6 lifters, scientific and smooth demolding; the hot runner ensures no loss of material,
reducing material cost; polish and harden the mold to improve the hardness, anti-wearing and
anti-corrosion performance, short cycle time, w/o flow marks and gas marks. Molded parts have
clear and precise details.

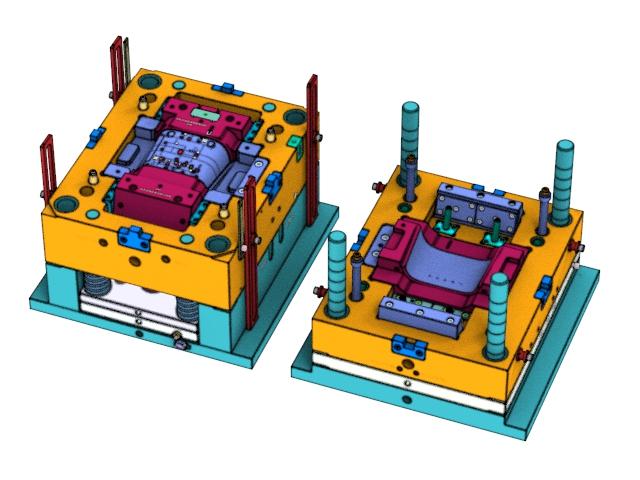

Display diagram
