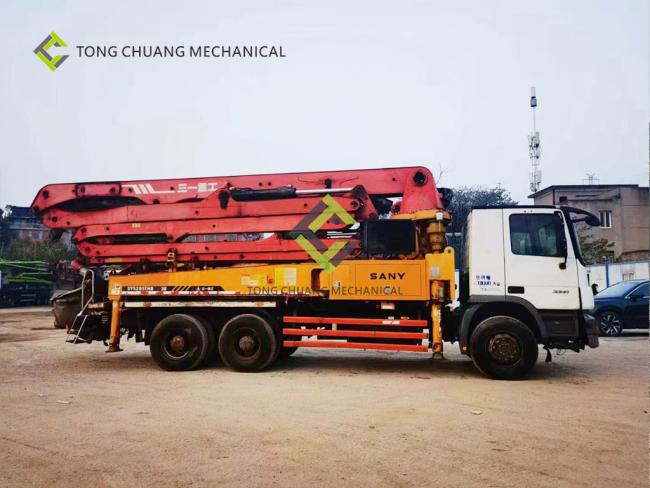

2014 Sany Heavy Industry 38 Meters Mercedes Benz Second Hand Concrete Pump Truck
Product features and advantages:
1:Self locking function of quick release independent double mixing device, the mixing device adopts high torque steel ball plunger motor.
2:With the function of automatically withdrawing the piston, it is convenient and fast to check and replace the piston.
3:SYMC integrated controller with independent property right and SYLD display screen are adopted, which has faster operation speed and higher protection performance than PLC control.
4:The patented waterproof sealing technology of the main oil cylinder is set with a high-pressure buffer zone to effectively prevent the emulsification of hydraulic oil
| Chassis parameter configuration | ||||||||||
| model | SY5295THB 380C-8 | Model abbreviation | SY5295THB | |||||||
| Vehicle Weight (kg) |
28800KG |
Dimensions(L*W*H)(mm) | 11380*2500*3990 | |||||||
| Chassis | BENZ Actros 3341 | engine type | OM501LA. Ⅲ /17 | |||||||
| Engine Power(kW) | 300kW/1800rpm | Emission Standard | Euro Ⅲ | |||||||
| braking length | ≤ 10m/30km/h | output volume | 11.946 L | |||||||
| Color | red+ white | maximum speed |
80km/h
|
|||||||
| Pump system parameter information | ||||||||||
| Vertical Reach | 38meters | Horizontal Reach | 34meters | |||||||
| Main oil pump brand |
Rexroth |
Main oil pump model | A11VLO190LRDU2/11R-NZD12K02 | |||||||
| Max Output Quantity(Low / High Pressure) (m³ / h) | 140/100 m³ / h | Max Output Pressure(Low / High Pressure)(Mpa) | 8.3/12 Mpa | |||||||
| Theoretical pumping times (low / high pressure) (times / min) | 23.5/16.5 t/min | Concrete cylinder cylinder diameter stroke (mm) | 260×2145 | |||||||
