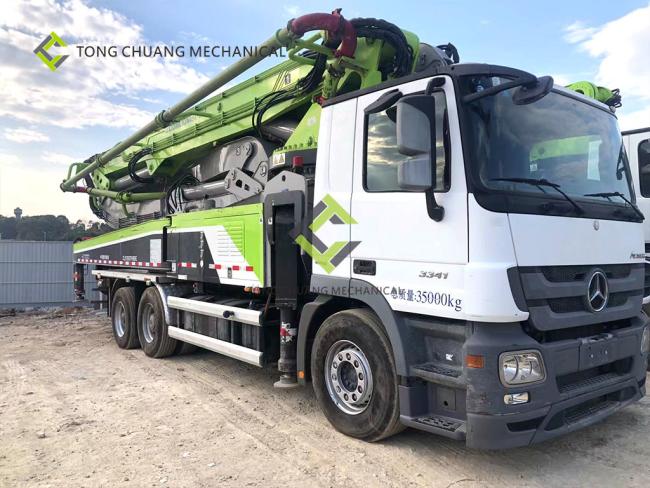

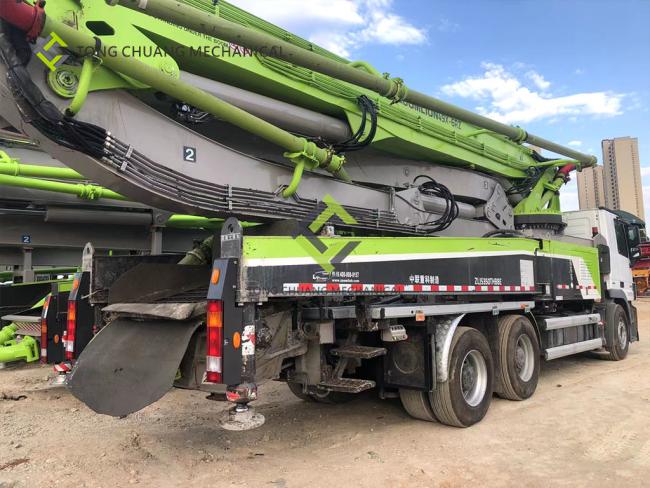

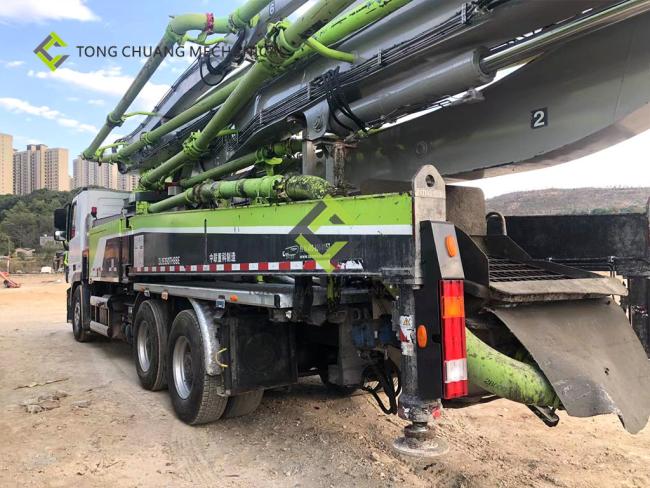

In 2019 Zoomlion Remanufactured Used Concrete Boom Truck 49 Meters Installed
Product features and advantages:
1:Maintain the pumping efficiency, comprehensive fuel consumption, boom vibration and other key performance of the international advanced and industry leading advantages.
2:The pump truck implements high-precision and efficient pumping control technology, the pumping efficiency is increased by more than 8%, and the travel accuracy is 99% or more.
3:Adaptive pumping control technology was implemented, and the pump truck plugging rate was reduced by 65%
4:To achieve the remote upgrade of the program, the average maintenance period of a single device program is shortened from >2 days to <2 hours.
5:The boom, bottom frame and other key structural parts have undergone rigorous fatigue testing, and the design life is more than 8 years, far exceeding the level of domestic counterparts
| Chassis parameter configuration | ||||||||||
|
unit type |
ZLJ5350THBBE |
Model abbreviation |
3-axes 49 meters |
|||||||
|
Vehicle Weight (kg) |
33000KG |
Dimensions(L*W*H)(mm) |
11990 * 2530* 4000 |
|||||||
|
Chassis |
Mercedes Benz Actros 3341 6X4 |
engine type |
OM501LA.IV/3 |
|||||||
|
Engine Power(kW) |
300kw/1592rpm |
Emission Standard |
IV/3 |
|||||||
|
wheel base (mm) |
4500+1350 |
output volume |
11.946L |
|||||||
|
Color |
green+white |
maximum speed |
85km/h
|
|||||||
|
Vertical Reach |
48.7 meters |
Horizontal Reach |
43.7 meters |
|||||||
| Pump system parameter information | ||||||||||
| Max Output Quantity (m³ / h) | 180m³ / h | Max Output Pressure (Mpa) | 8.3/12 Mpa | |||||||
| Pumping frequency (times / min) | 25 t/min | Concrete cylinder cylinder diameter stroke (mm) | 260×2250 | |||||||
| Arm frame structure form | 49X-6RZ | Hydraulic system type |
open-type system
|
|||||||
