Zoomlion Heavy Industry Used Concrete Pump Truck ZLJ5280THBJE 40m In 2020
In 2020 Zoomlion Heavy Industry Used ZLJ5280THBJE 40m Concrete Pump Truck
Product features and advantages:
The dedicated function of this vehicle model is to pump concrete, and the dedicated device is the concrete pumping unit; Backward extension of 660mm; The maximum net power of the engine (Kw) is CA6DL1-32E5 (235); ABS manufacturer/model: Zhejiang Wan'an Technology Co., Ltd./VIE ABS-II; The material used for the side protection device of the vehicle is aluminum alloy 6063, which is connected to the bracket through bolts, and the bracket is connected to the chassis beam through bolts; The rear dedicated device has a rear lower protection function, with a height of 490mm above the ground; The car can be equipped with fenders of different structures along with the chassis, and a new front face cab can be selected
| Pump truck parameters | ||||||||||
|
Brand |
China First Automobile Group Co., Ltd |
Engine model |
CA6DL1-32E5 |
|||||||
|
Vehicle Weight (kg) |
27870 |
Dimensions(L*W*H)(mm) |
10530*2530*3960 |
|||||||
|
Chassis |
CA5300THBP1K2T2BE5A81 |
Kilometers driven |
16338KM |
|||||||
|
Engine Power(kW) |
238 |
Engine displacement (cc) |
7.7L |
|||||||
|
Quantity of concrete delivered |
42108 cubic meters |
Engine operating time |
1942 hours |
|||||||
|
Delivery time |
842hours |
maximum speed |
85km/h
|
|||||||
|
Vertical Reach |
39.5 meters |
Horizontal Reach |
35.15meters |
|||||||
| Pump system parameter information | ||||||||||
| Theoretical displacement of concrete (m ³/ h) | 100/60 | Max Output Pressure (Mpa) | 8/15 | |||||||
| Hydraulic system | open type | Concrete cylinder cylinder diameter stroke (mm) | 230×1800 | |||||||

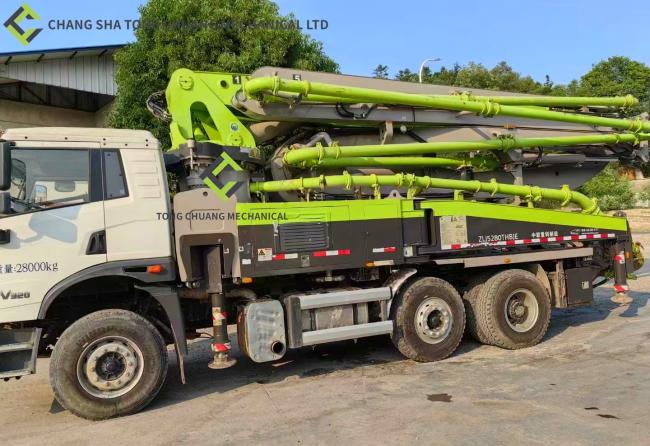

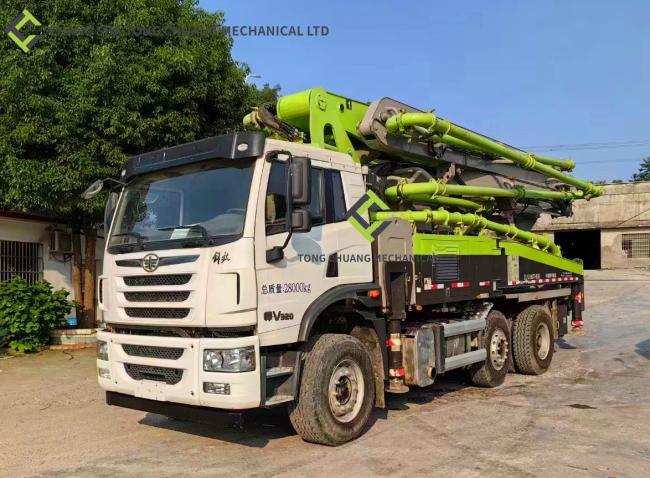

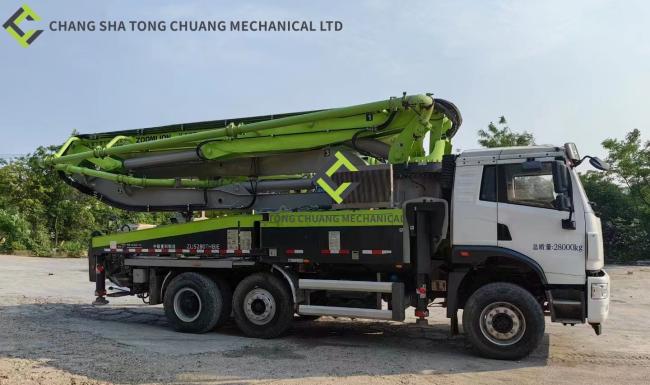

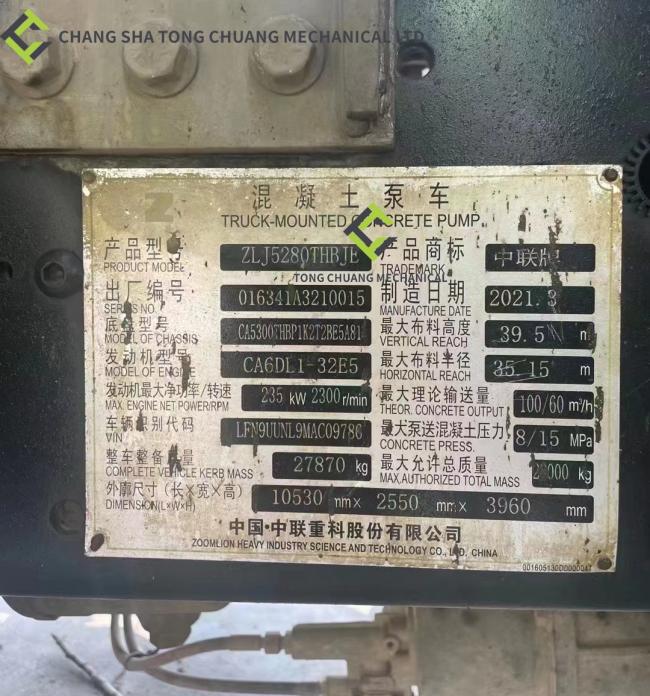

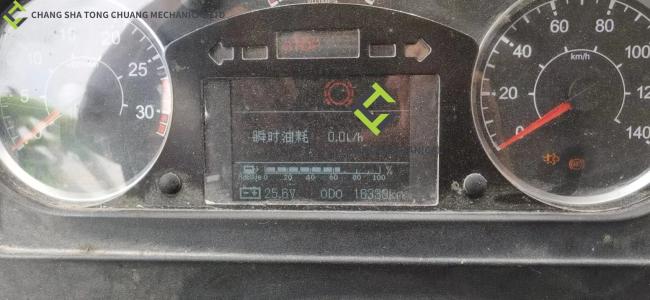

The pictures as follows:
