Open Type Hydraulic Used Concrete Pump Truck SYM5442THBEB 620C-10A

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 13days

Brand: SANY

Product Description

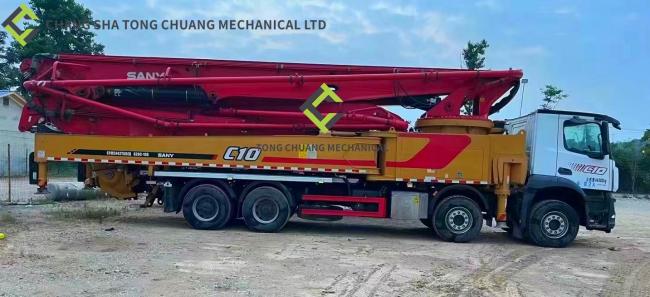

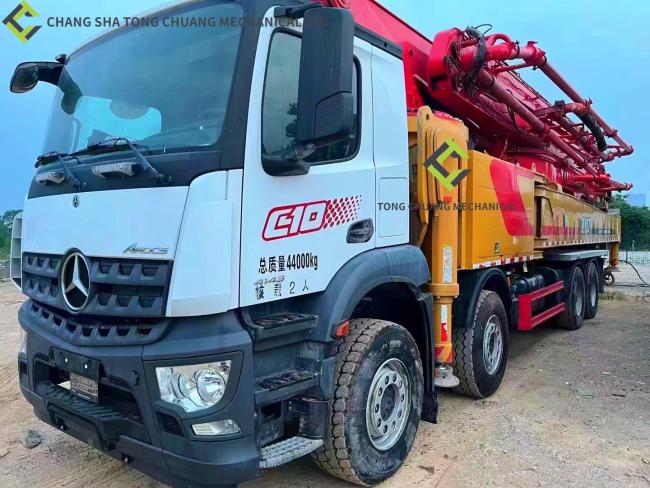

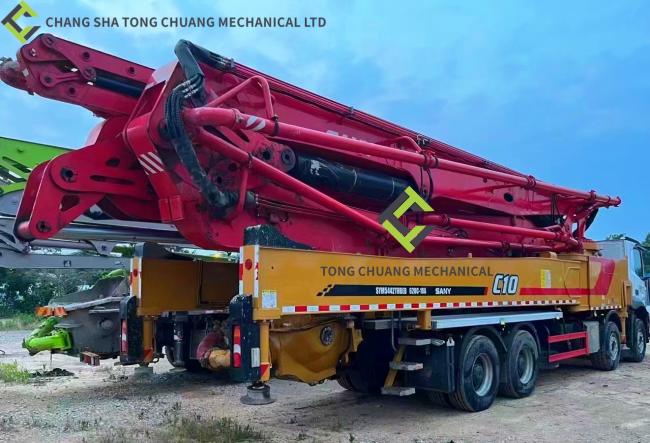

In 2021 Sany Heavy Industry Used SYM5442THBEB 620C-10A Concrete Pump Truck

Product features and advantages:

The biggest advantage of C10 concrete pump truck is that the engine power is self matched, the pumping displacement is adaptively adjusted with the engine speed, power, torque, and fuel injection amount, and the engine speed is dynamically and reasonably matched according to load changes. The engine always operates in the best economic and fuel-efficient area.


Pump tuck parameters
Unit type	SYM5442THBEB 620C-10A	Engine model	OM470LA.5-54
Vehicle Weight (kg)	43870	*Dimensions(LWH)(mm)*	*1455025504000mm*
Chassis	Benz	Chassis model	Arocs 4143 8X4
Engine Power(kW)	315	Engine displacement (cc)	10.67L
Quantity of concrete delivered	80000cubic meters	maximum speed	90km/h
Vertical Reach	61.1meters	Horizontal Reach	55.9meters
Pump system parameter information
Low pressure theoretical displacement of concrete(m³/h)	180	Theoretical pumping pressure high pressure	12Mpa
Water tank volume (L)	700	Concrete cylinder cylinder diameter stroke (mm)	230×1900
Hydraulic system	open type	Fuel tank volume (L)	800
Arm frame, support leg parameters
Vertical depth of boom	42.7m	Minimum unfolding height	13.6m
Length of the first arm	11260mm	Angle of the first arm	89 °
Second arm length	8785mm	Second arm angle	180 °
Third arm length	9050mm	Third arm angle	180 °
Fourth arm length	10000mm	Fourth arm angle	230 °
Fifth arm length	10600mm	Fifth arm angle	180 °
