In 2014 Sany Heavy Industry Used SY5190THB25 Concrete Pump Truck
Price:
Negotiable
MOQ:
1pc
Delivery Time:
8days
Brand:
SANY
Product Description
In 2014 Sany Heavy Industry Used SY5190THB25 Concrete Pump Truck
Product features and advantages:
1: Manufacture date: 2014
2: Pump working time: 5526 hours
3: conveying square quantity of concrete: 92052 cubic meters 4:Very favorable prices for sale
| Pump tuck parameters | ||||||||||
|
Unit type |
SY5190THB25 |
Engine model |
HINO P11C-UH |
|||||||
|
Vehicle Weight (kg) |
18900 |
Dimensions(L*W*H) |
10000*2550*3860mm |
|||||||
|
Chassis |
SANY |
Quantity of concrete delivered |
92052cubic meters |
|||||||
|
Engine Power(kW) |
240 |
maximum speed |
90km/h |
|||||||
|
Vertical Reach |
25meters |
Horizontal Reach |
21meters |
|||||||
| Pump system parameter information | ||||||||||
| Low pressure theoretical displacement of concrete(m³/h) | 100 | Max Output Pressure (Mpa) | 16 | |||||||
| Hydraulic system | open type | Concrete cylinder cylinder diameter stroke (mm) | 200*1800 | |||||||
| Arm frame, support leg parameters | ||||||||||
| Vertical depth of boom | 10.8m | Minimum unfolding height | 6.4m | |||||||
| Length of the first arm | 6500mm | Angle of the first arm | 93° | |||||||
| Second arm length | 4650mm | Second arm angle | 180 ° | |||||||
| Third arm length | 4650mm | Third arm angle | 245 ° | |||||||
| Fourth arm length | 5000mm | Fourth arm angle | 245 ° | |||||||

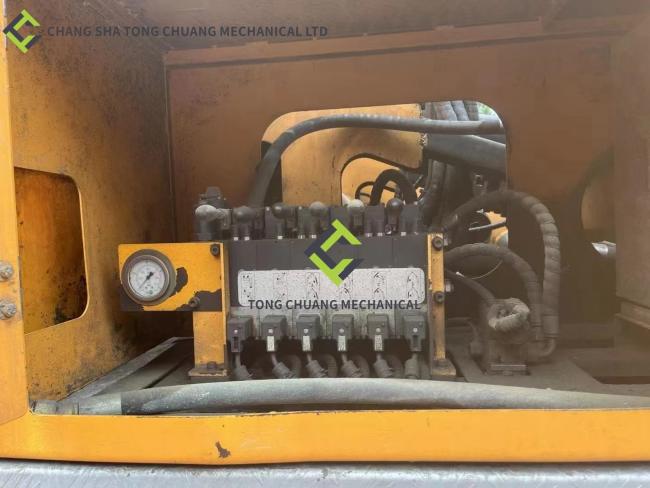

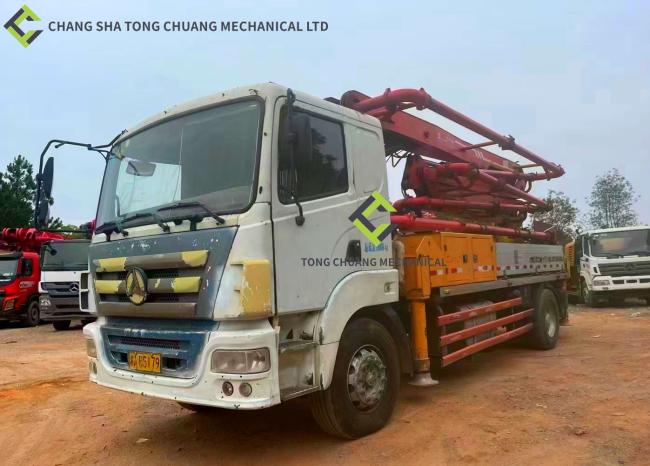

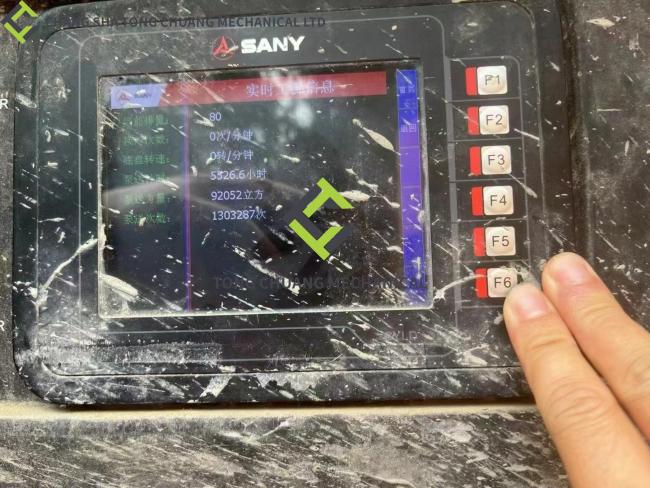

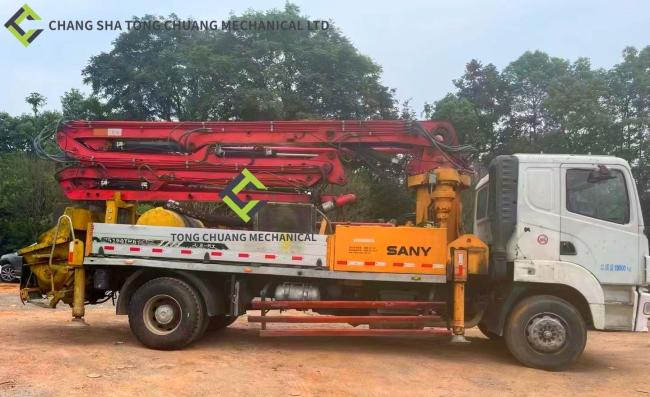

The pictures as follows:
