Electric Curved Arm Altitude Work Platform for 4800kg Load and Battery 48V/320Ah in Industrial Sector
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
7days
Brand:
Domestic
Product Description
Product Decription
The maximum working height of the electric articulated boom high-altitude work platform is 11.5 meters to 22.5 meters, and the maximum load is 350 kilograms. The design of the battery and the arm style structure provide a sustainable and flexible solution for entering elevated areas. According to your work needs, lithium batteries and lead-acid batteries can be optionally equipped.

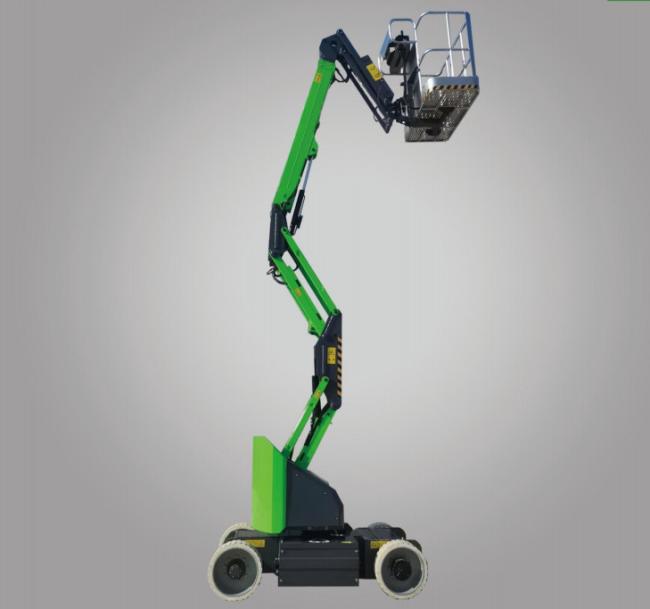

Product Picture
Product parameters
| Model | V09 | V11 |
| Type | ||
| Maximum working height | 11.5m | 12.52m |
| Maximum platform height | 9.5m | 10.52m |
| Maximum crossing height | 4.5m | 4.65m |
| Maximum homework radius | 6.2m | 6.5m |
| Platform size (length x width) | 1.4*0.7m | 1.4*0.7m |
| Vehicle Length - Collection | 5.2m | 5.6m |
| Vehicle width | 1.27m | 150m |
| Vehicle Height - Collection | 2.0m | 2.0m |
| wheelbase | 1.75m | 1.95m |
| Ground clearance room (center) | 0.14m | 0.14m |
| Performance | ||
| Rated bearing capacity | 200kg | 200kg |
| Number of people supported by the platform | 2 | 2 |
| Platform rotation range | ±80 | ±80 |
| Rotary table rotation | ±70° | ±70° |
| Range of boom amplitude | 355° | 355° |
| Driving speed (receiving status) | 4.8km/h | 4.8km/h |
| Driving and climbing slopes | 35% | 35% |
| Maximum working slope | 3° | 3° |
| Outer turning radius | 3.3m | 4.08m |
| Drive steering form | 2×2 | 2×2 |
| Whole machine weight | 4800kg | 5200kg |
| tyre | 22×7X17 | 22×7×17 |
| Power | ||
| Battery | 48V/320Ah | 48V/320Ah |
| Pump motor power | 4kw | 4kw |
| Power of walking motor | 3.3kw | 3.3kw |
| Control voltage | 24v | 24v |
| Charger | 48v/35A | 48v/35A |
| Hydraulic oil tank | 20L | 20L |
| Emergency power system | 24V electric | 24V electric |
| Match | ||
| Lithium battery | Optional | Optional |
| Solid seamless tire | Optional | Optional |
