28-4M Truck-mounted Concrete Pump With Mixer Four Arm M-shaped Folding Open Hydraulic Control
Product Decription

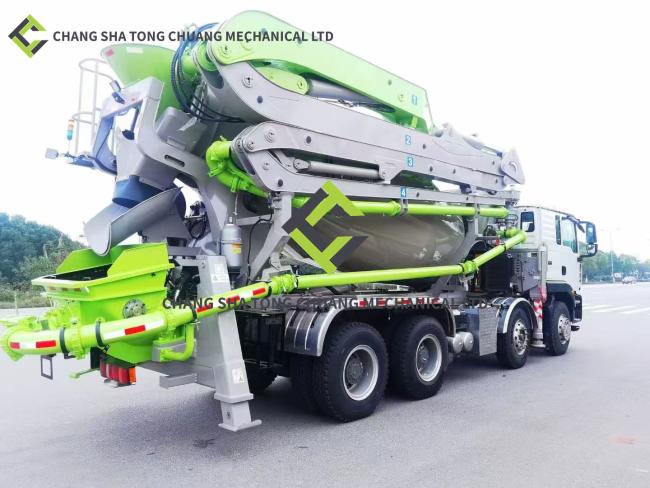

The HMG5430JBC 28 - 4M mixer pump truck is a remarkable piece of construction machinery. It features a four-section boom with an innovative M-type folding mechanism. This model is engineered to combine the essential functions of concrete mixing and pumping, making it a versatile solution for construction sites. The 28 - 4M specification indicates its capacity and reach capabilities, suitable for a wide range of building projects. The mixer on board ensures the consistent production of high-quality concrete mixtures, while the pump system is designed to transport the concrete with precision and power to the required locations.
Product Parameters
| Dimensions(L * W * H) | 10690×2520×4000 |
| Total mass(kg) | 44000 |
| Curb weight(kg) | 42305 |
| Vehicle empty weight(kg) | 24000 |
| Ground clearance(mm) | 283 |
| minimum turning radius(m) | 9.5 |
| Maximum driving speed(km/h) | 80 |
| Track width (front/rear)(mm) | 2140/2140/1855/1855 |
| Front/rear wheelbase(mm) | 1850+2850+1370 |
| Front/rear axle load(kg) | 9000/9000/26000 |
| Front suspension/rear suspension(mm) | 1475/3500 |
| Approach/departure angle(°) | 17/11 |
| Max Gradeability (%) | 40 |
