Slit Stainless Steel 410 Coil SS 430 410S 420 BA 2BA 2B Finish
ss 430 410s 420 grade ba 2ba 2b finish stainless steel coil
What is Stainless Steel ?
Stainless steel contains chromium which provides the properties of corrosion resistance at high temperatures. Stainless steel can withstand corrosive or chemical environments due to its smooth surface. Stainless steel products are safe for long-term use with excellent resistance of corrosion fatigue.
| Surface Finish | Definition | Application | |
| 2B | Finished by heat treatment , picking or equipvalent cold rolling , followed by skin pass to obtain adequate luster surface. | With bright and smooth surface ,easy for further grinding to obtain brighter surface ,suitable for medical instruments ,milk containers ,tableware and so on. | |
| BA | Bright heat treatment after cold rolling. | Structual members .etc.kitchen utensil ,cutlery ,eleltric applicances ,medical instruments ,building decorations ,etc. | |
| NO.3/NO.4 | Polished with No.150-240 abrasives. | Milky food processing equipment , medicalinstruments ,building decorations. | |
| HL | Finshed by polishing with abrasives of suitable grain size to obtain continuous streaks. | Building decorations ,such as elevators ,escalators ,door etc. | |
| 6K/8K | A mirror-like reflective surface ,which is obtained by polishing with successively finer abrasives and buffing extensively with all gritlines are removed. | Buliding entrances,bulkding column casting ,elevator's wall doors ,counters,sculptures etc. | |
| Stainless Steel Coil/Sheet/Plate Information | |||||||||||
| Technique | Surface Finish | Grade Series | Thickness(mm) | Width(mm) | Application | ||||||
| Main Dimension | |||||||||||
| 20-850 | 1000 | 1219 | 1240 | 1250 | 1500 | Petro-chemical industry,Tanks Construction material |
|||||
| Hot Rolled | No.1 / 2E | 201/202/ 304 |
2.2-12.0 | √ | √ | √ | √ | √ | |||
| Cold Rolled | 2B | 201/304 | 0.25-3.0 | √ | √ | √ | √ | √ | √ | ||
| 410S/430 | 0.25-2.0 | √ | √ | √ | √ | ||||||
| No.4 / Hairline Mirror / Linen SB |
201/304 | 0.22-3.0 | √ | √ | √ | √ | √ | ||||
| 410S/430 | 0.25-2.0 | √ | √ | √ | √ | √ | |||||
| BA | 201/304 | 0.2--1.8 | √ | √ | √ | √ | |||||
| 410S/430 | 0.25-2.0 | √ | √ | √ | √ | ||||||
| 2BA | √ | √ | √ | √ | |||||||
| Chemical composition and mechanical properties of stainless steel coils | |||||||||
| Grade | Chemical Composition (%) | Mechanieal Performece | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | |
| 201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | - | HB≤241,HRB≤100, HV≤240 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | - | HB≤187,HRB≤90,HV≤200 |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | - | HB≤183, HRB≤88 HV≤200 |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00/18.00 | - | HB≤183, HRB≤88 HV≤200 |
What is BA finshed ?
Cold rolled, bright annealed and skin-passed, the product have excellent brightness and food reflexivity like mirrorm kitchen apparatus, omament etc.
What is 2B finshed ?
The surface brightness and flatness of 2B is better than 2D then theough a special surface treatment to improve its mechanical properties,2B could nearly Satisfy comprehensive uses

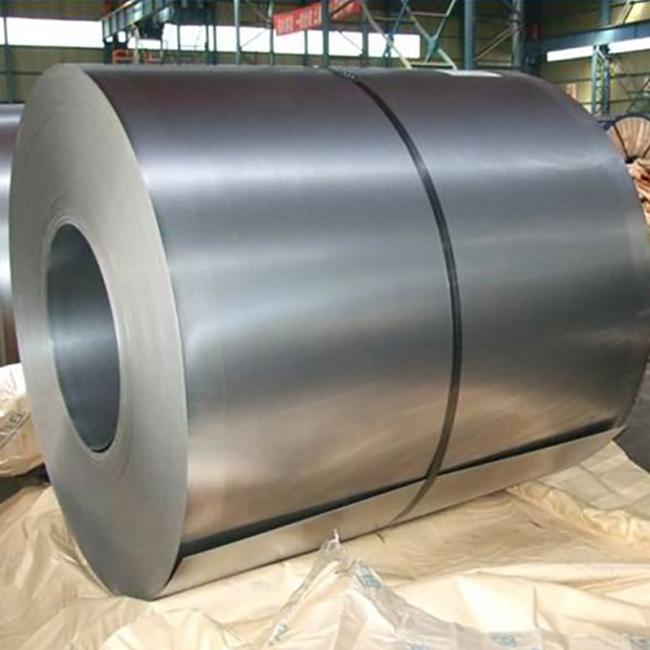

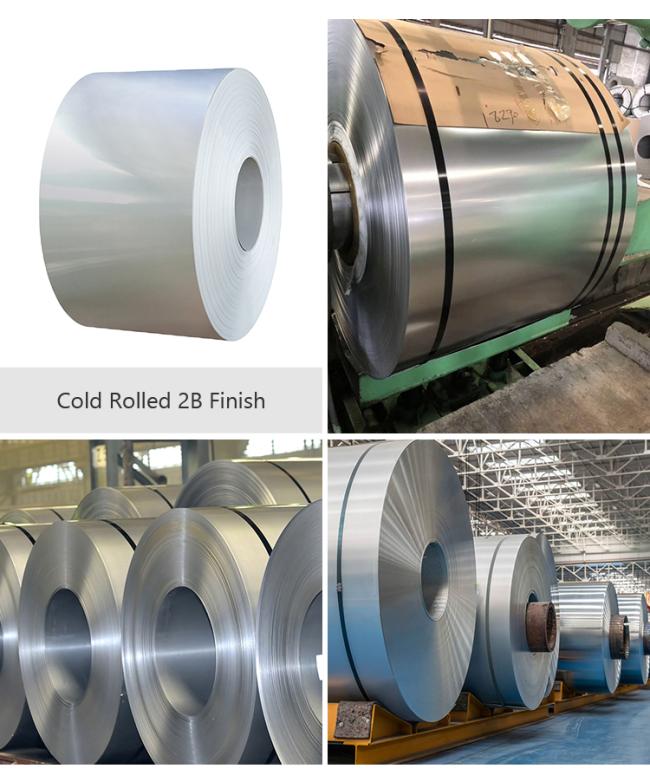

430 BA Stainless Steel Coil Display
Company Profile
As a premier stainless steel surface designer in China, ASIA Metal Service Company Limited established in 2021, which strives for stainless steel innovation and quality for more than 10 years. So far, we have developed into a large integrated enterprise of stainless steel material’s design, processing.
Stainless Steel Coil OEM AND ODM SERVICE
We can provide the integrated customized service from the cold-rolled coil to the surface fifinishing products.
OEM/ODM Is Available.
Print Patterns On The Product Protective Film.
Customized Production According To the Size Provided By The Customer.
The Surface Of The Product Can Be Deep Processing.
Sample Could Be Prepared For You On Time.
Best After-Sale Service Can Solve Your Problem.
