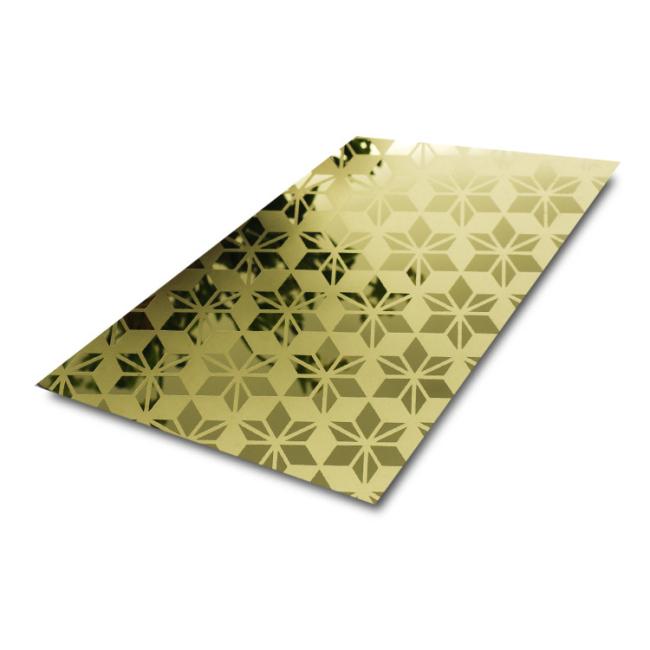

PVD Etched Stainless Steel Sheet 304 201 1mm 4 X 8 Plain Mirror For Decoration
201 304 pvd color coating 4 x 8 mirror finish plain mirror gold etched stainless steel sheet for decoration
What is etching ?
Etched finish is created by a screen printing the protective acid resistant to a polished surface and acid etching the unprotected areas. The etching removes a thin layer of stainless steel and roughens the surface.
| Type | etched stainless steel sheets |
| Name |
201304 pvd color coating 4 x 8 mirror gold etched stainless steel sheet for decoration
|
| Thickness | 0.3 mm - 3.0 mm |
| Size | 1000*2000mm, 1219*2438mm, 1219*3048mm, customized Max.width 1500mm |
| SS Grade | 304,316, 201,430 etc. |
| Finish | mirror+etched finished+gold |
| Available finishes | No.4, Hairline, Mirror, Etching, PVD Color, Embossed, Vibration, Sandblast, Combination, lamination etc. |
| Origin | POSCO,JISCO,TISCO,LISCO,BAOSTEEL etc. |
| Packing way | PVC+ waterproof paper + strong sea-worthy wooden package |
Chemical composition and mechanical properties of stainless steel
| Grade | Chemical Composition (%) | Mechanieal Performece | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | |
| 201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | - | HB≤241,HRB≤100, HV≤240 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | - | HB≤187,HRB≤90,HV≤200 |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | - | HB≤183, HRB≤88 HV≤200 |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00/18.00 | - | HB≤183, HRB≤88 HV≤200 |
Product Display:
Etched stainless steel sheet application
Etched stainless steel sheets are widely used in Wall cladding, luxury indoor decoration, elevator door and cabin decoration, furniture, ads nameplates, corridor boards, hotel lobbies, architectural decoration, subway, and many other products and building projects.
Packaging & Delivery
| Protective Film |
1. Double layer or single layer. 2. Black and white PE film/Laser (POLI) film. |
| Packing Details |
1. Wrap with waterproof paper. 2. Cardboard encase all packs of the sheet. 3. The strap aligned with edge protection. |
| Packing Case | Strong wooden case, metal pallet and customized pallet are acceptable. |
Stainless steel sheet packaging and loading
1 Sheets covered with wooden plate for protection in transportation.
2. All sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step informed.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM
