4 x 8 304 Embossed Stainless Steel Sheet 1.2mm 4000mm Small Pearl SS 201
SS 201 304 4*8 1.2mm Small Pearl Embossed Stainless Steel Sheet
Product Name: Small Pearl Embossed Stainless Steel Sheet
Thickness:0.3 mm - 3.0 mm
Size:1000*2000mm, 1219*2438mm, 1219*3048mm, customized Max.width1500mm and length 4000mm
SS Grade:201 / 304 / 316 / 430 etc.
Surface Treatment:Mirror / Satin / Anti-Fingerprint / PVD Color Coating / Embossing / Etching / Stamping
Origin:POSCO / JISCO / TISCO / LISCO / BAOSTEEL
Protective Film:Single layer or double layers of 7C PVC or Laser film with or without customized logo
Package:Wooden cases or plywood cases of standard type or more robust double layers type
| Chemical composition and mechanical properties of stainless steel | |||||||||
| Grade | Chemical Composition (%) | Mechanieal Performece | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | |
| 201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.030 | 3.5/5.5 | 16.0/18.0 | - | HB≤241,HRB≤100, HV≤240 |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | - | HB≤187,HRB≤90,HV≤200 |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 |
| 410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.030 | ≤0.060 | 11.5/13.5 | - | HB≤183, HRB≤88 HV≤200 |
| 430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00/18.00 | - | HB≤183, HRB≤88 HV≤200 |
WHAT IS EMBOSSING ?
Embossed finish is processed by concave and convex mold, forming stainless steel under a certain pressure. It’s produced by rolling the pattern into the sheet. After embossing the stainless steel surface showing a depth of different pattern and texture, and has the obvious emboss stereo feeling.
Product Advantage
ASIA METAL’s embossed sheet is durable, long lasting and anti scratch, the patterns are attractive and offer designers a unique material to work with.
We can also emboss special custom patterns to meet your needs.

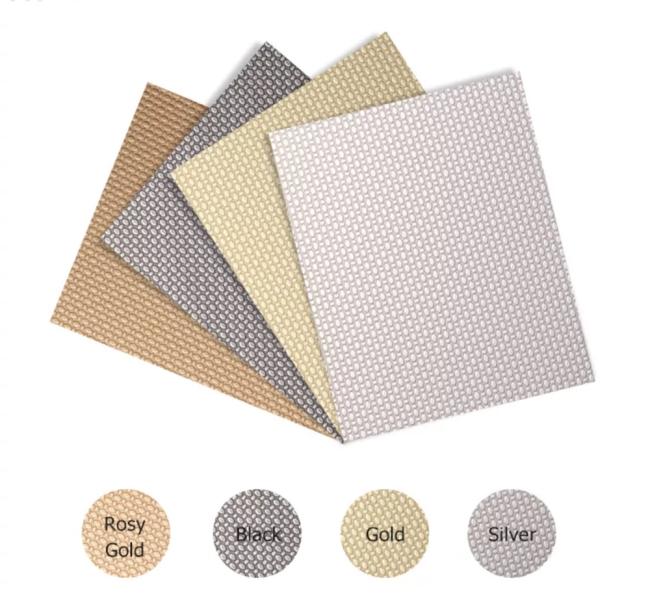

Product Display
Customized patterns are available here or you can choose our existing patterns
If you want to know more about the patterns of embossed stainless steel sheet, please download our product catalogue
Packaging & Delivery
| Protective Film |
1. Double layer or single layer. 2. Black and white PE film/Laser (POLI) film. |
| Packing Details |
1. Wrap with waterproof paper. 2. Cardboard encase all packs of the sheet. 3. The strap aligned with edge protection. |
| Packing Case | Strong wooden case, metal pallet and customized pallet are acceptable. |
Stainless steel sheet packaging and loading
1. Each sheet is covered with single layer or double layers of 7C protective film and either PVC or laser film can be chosen.
2. Around 100 to 150pcs are packed by one wooden case.
3. A large piece of waterproof paper is put at the bottom of each wooden case, which is used to wrap the stainless steel sheets.
4. 1pc of cardboard is put on the top of waterproof paper and the top of upper sheet each to protect the sheets well.
5. The four sides of the wooden case are protected by aluminum L grooves.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM
