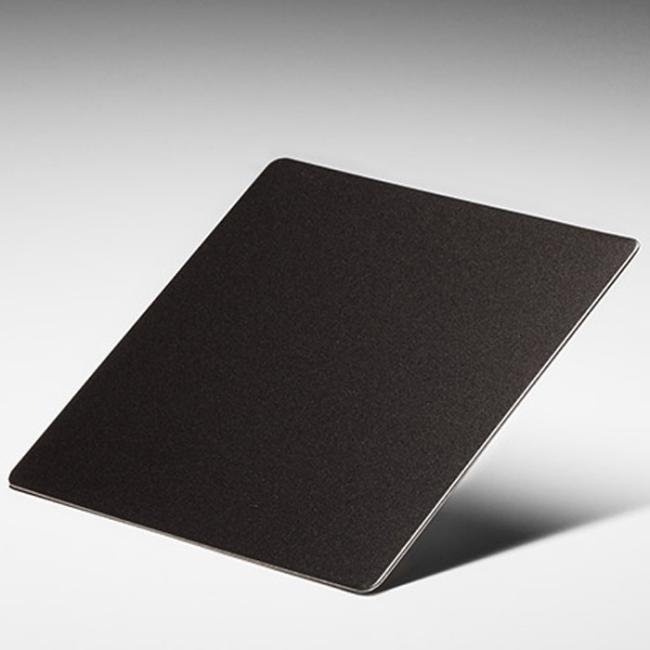

4 * 8FT Bead Blasted Stainless Steel Sheet PVD Black INOX 304
Inox 304 4*8FT BeadBlasted Finish Stainless Steel Plate in PVD Black Color Coating
|
Product Name
|
BeadBlasted Stainless Steel
|
|
|
Grade
|
201/304/316/410/430
|
|
|
Thickness(mm)
|
0.28-1.45
|
|
|
Width(mm)
|
stock size
|
Other Demension
|
|
1000/1219/1240
|
Customized
|
|
|
Length(mm)
|
Customized
|
|
|
Surface
|
HL,No.4,SB,Mirror,Antique,PVD Color,AFP
|
|
|
Color
|
Chrome,Gold,Black,Rose Gold,Champagne,Copper,Bronze,Customized
|
|
|
Coil Weight(mt)
|
Customized
|
|
|
Edge Finish
|
Mill Edge or Slit Edge
|
|
|
Protection
|
1. Inter paper available
|
|
|
2. PVC protecting film available
|
||
|
3. Wooden frame or wire fixation
|
||
|
Application
|
1. Building exterior walls 2. Building ceiling
|
|
|
3. Various stainless steel decorations 4:furniture, manufacturing
|
||
|
Chemical composition and mechanical properties of stainless steel
|
|||||||||
|
Grade
|
Chemical Composition (%)
|
Mechanieal Performece
|
|||||||
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
CR
|
Mo
|
Hardness
|
|
|
201
|
≤0.15
|
≤1.0
|
5.5/7.5
|
≤0.060
|
≤0.03
|
3.5/5.5
|
16.0/18.0
|
-
|
HB≤241,HRB≤100, HV≤240
|
|
304
|
≤0.08
|
≤1.0
|
≤2.00
|
≤0.045
|
≤0.03
|
8.0/11.0
|
18.00/20.00
|
-
|
HB≤187,HRB≤90,HV≤200
|
|
316
|
≤0.08
|
≤1.0
|
≤2.00
|
≤0.045
|
≤0.03
|
10.00/14.0
|
16.0/18.0
|
2.00/3.00
|
HB≤187, HRB≤90 HV≤200
|
|
316L
|
≤0.03
|
≤1.0
|
≤2.00
|
≤0.045
|
≤0.03
|
10.00/14.0
|
16.0/18.0
|
2.00/3.00
|
HB≤187, HRB≤90 HV≤200
|
|
410
|
≤0.15
|
≤1.0
|
≤1.25
|
≤0.060
|
≤0.03
|
≤0.060
|
11.5/13.5
|
-
|
HB≤183, HRB≤88 HV≤200
|
|
430
|
≤0.12
|
≤1.0
|
≤1.25
|
≤0.040
|
≤0.03
|
-
|
16.00/18.00
|
-
|
HB≤183, HRB≤88 HV≤200
|

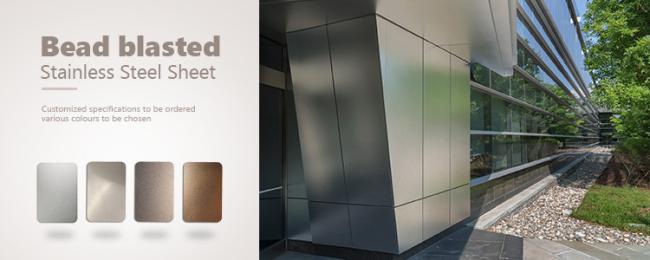

WHAT IS BEAD BLASTED ?
Bead Blasted, named Sand Blasted as well, is a quite popular matte finish products, it’s the operation of forcibly propelling a stream of abrasive material against the stainless steel surface under high pressure to smooth a rough surface to obtain the matte finish. It is a non-directional finish that is uniformly textured and low gloss.
Product Advantage
ASIA METAL’s Bead Blasted finish has an aesthetic appeal and enhances the surface properties of stainless steel.
Product Application
Bead Blasted stainless steel sheet is widely used in roofing applications, elevator wall panels and COP/LOP part, baseboard, floor, refrigerator, and trim.
| Surface | Bead Blasted Finish | |||
| Grade | 201 | 304 | 316 | 430 |
| Form | Sheet only | |||
| Material | Prime and suitable for surface processing | |||
| Thickness | 0.3-3.0 mm | |||
| Width | 1000/1219/1250/1500 mm & customized | |||
| Length | Max 6000mm & customized | |||
| Type | 2B Embossed, BA/6K Embossed, HL/No.4 Embossed, etc. | |||
| Remarks |
Special dimensions are accepted on request. Customized specific cut-to-length, laser-cut, bending are acceptable. |
|||
Packaging & Delivery
| Protective Film |
1. Double layer or single layer. 2. Black and white PE film/Laser (POLI) film. |
| Packing Details |
1. Wrap with waterproof paper. 2. Cardboard encase all packs of the sheet. 3. The strap aligned with edge protection. |
| Packing Case | Strong wooden case, metal pallet and customized pallet are acceptable. |

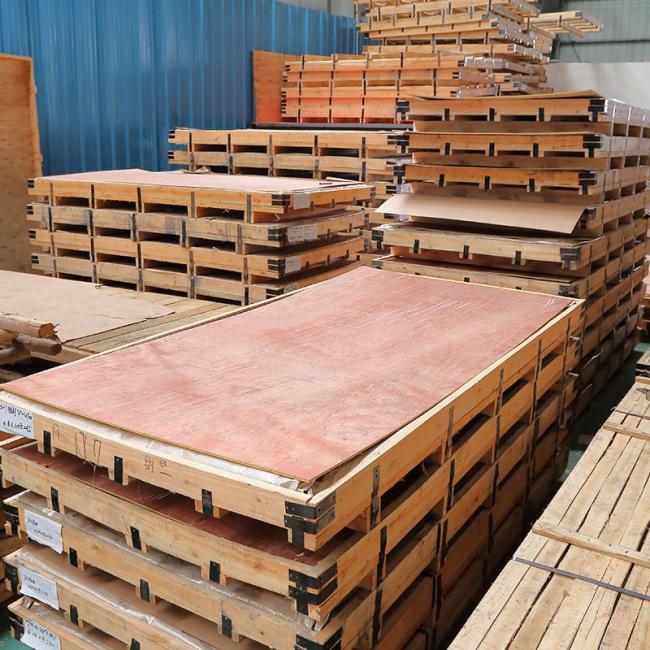

Stainless steel sheet packaging and loading
1. All sheets are covered with pvc protect film
2. All sheets will be protected by waterproof paper and wooden plate, then loaded in a strong wooden package
3. Product pictures, loading pictures and other loading information are provided
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM
Product Display
