Penetration Security Airport Scanner 180kg Conveyor For Public Safety Suitcase

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 3-7 work days

Brand: CYL

Product Description

43mm Penetration X-Ray Airport Baggage Scanner For Airport And Public Places

Specification

Category	Item	Spec.
Basic Information	Working Voltage	220V
	Tunnel Size	800x650 mm
	Conveyor Max Load	180KG
	Max Power Consumption	0.46 KVA
	Noise Level	< 60 db
	Product Size	200(L) x117(W) x160(H) cm
X-Ray Generator	Tube Current	0.4~1.2mA
	Tube Voltage	100-160KV
	Cooling Style	100% oil cooling
	Generate Direct	from TOP
	X-Ray Sensor	Dual energy
	Generate Angle	80 degree
Image System	Monitor	19 inch LCD
	Color	32 bit true color
	Image Enhancement	16/64 times
	Image Storage	300,000
	Operation Desk	Optional
	Operation System	Windows

Use environment temperature and humidity: 0 to 45 degree Celsius/20% ~ 95% (not condensed)
Storage temperature and humidity: -20 to 60 degree Celsius/ 20% ~ 95% (not condensed)

Parameter

X ray generator:

X-ray sensor: L-style photodiode array (single energetic) detector, 12 bit depth.

Generate direct: from top

Tube current: 0.4~1.2mA (adjustable)

Tube voltage: 100-160 KV (adjustable)

X-ray beam divergence angle: 80 degrees

Cooling style: 100% oil cooling

Image System

19 inch display screen with high resolution

Color image display 32 bit true color

Image enhancement to make detail more clearly

High/Low penetration to improve the area contrast

Real-time curve,Image reback and recover funtion

Image storage:save any images and processing continuous

Example Case

Changchun Museum
Guangzhou Art Museum
Express company and hotel
Shenzhen New Yaoshi Concert
The 2nd Shenzhen International Marathon
Our products are used in international market such as

Africa, Southeast Asia, Mideast, Europe and South America.

Certification

CE,RoHS, FCC,ISO19001, ISO14001

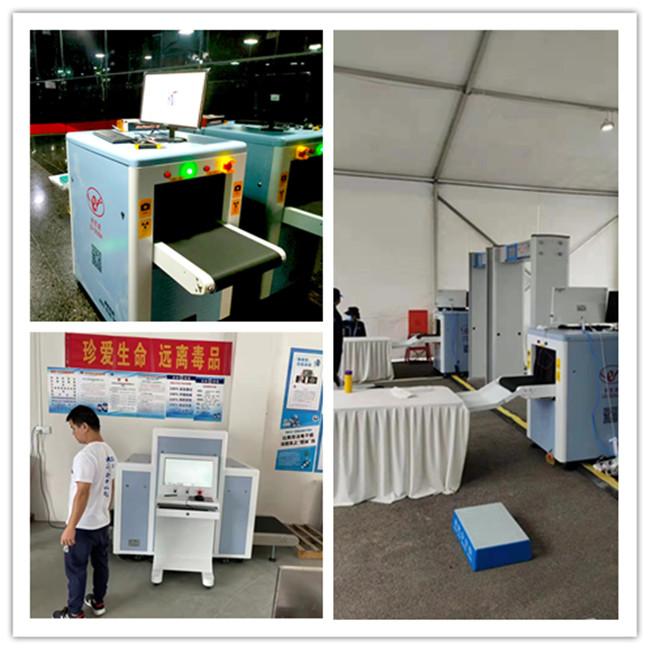

Application Example
