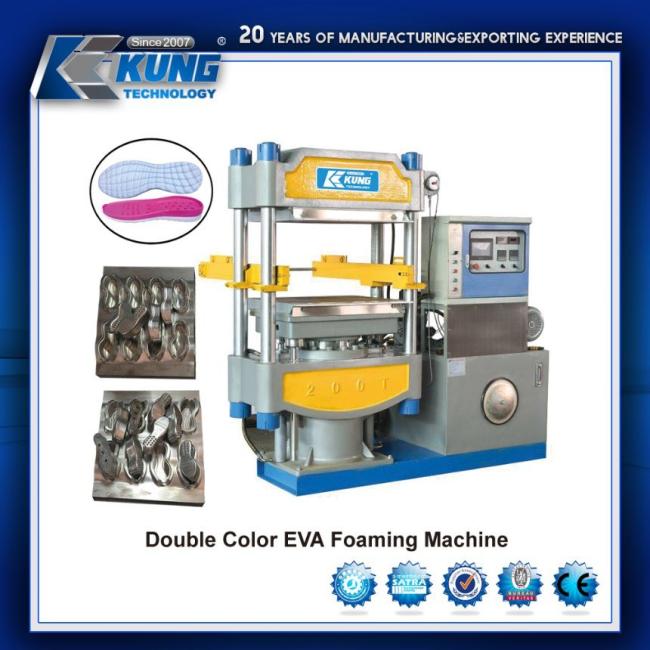

600L EVA Shoes Injection Machine Double Color 2.3*1.5*2m
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Company Info.
Customer Question & Answer
Ask something for more details
Basic Info.
Model NO.
KK-EFA01
Control Way
Automatic
Capacity of Oil Tank
600L
Hot Plate Size
820*560 mm
Spacing
180 mm
Motor Power
7.5 Kw
Total Power
31.5kw
Heating Temperature
170
Electrical Bar Temperature
170
Molding Time
450 S
Transport Package
Nude
Specification
2.3*1.5*2m
Trademark
Kingkung
Origin
China
HS Code
84775900
Production Capacity
35-50pair/H
Product Description
Machine specification:
| Station | 1 | 2 | 3 | 4 | 6 |
| Max pressure | 200T | 200T | 100T | 100T | 100T |
| Diameter of cylinder | 360mm | 360mm | 300mm | 300mm | 300mm |
| Cylinder materail | Iron(QT400) | Iron(QT400) | Iron(QT400) | Iron(QT400) | Iron(QT400) |
| Capacity of oil tank | 600L | 700 L | 800 L | 800 L | 800 L |
| Hot plate size | 820*560 mm | 800*600 mm | 500*600 mm | 500*600 mm | 500*600 mm |
| Spacing | 180 mm | 180 mm | 240 mm | 240 mm | 240 mm |
| Number of layers | 1 | 1 | 1 | 1 | 1 |
| Motor power | 7.5 KW | 7.5 KW | 15 KW | 15 KW | 15 KW |
| Total power | 31.5kw | 55.5 KW | 72.6 KW | 72.6 KW | 72.6 KW |
| Heating temperature | 170 | 170 | 170 | 170 | 170 |
| electrical bar temperature | 170 | 170 | 170 | 170 | 170 |
| Control way | Automatic | Automatic | Automatic | Automatic | Automatic |
| Heating way | Electric | Electric | Electric(Option Conducting oil) | Electric(Option Conducting oil) | Electric(Option Conducting oil) |
| Molding time | 450 s | 450 s | 450 s | 450 s | 450 s |
| Production capacity | 35-50pair/h | 60-70pair/h | 100-130pair/h | 130-150pair/h | 150-200pair/h |
| Mold close speed | 2.5 s | 2.5 s | 2.5 s | 2.5 s | 2.5 s |
| Mold open speed | 1 s | 1 s | 1 s | 1 s | 1 s |
| Dimension | 2.3*1.5*2.m | 3.0*2.5*2.m | 5.0*1.5*2.2 m | 6.0*1.5*2.2 m | 7.8*1.5*2.2 m |
| Weight | 4.5T | 9.5T | 13.5T | 15T | 17T |
| H.S code | 84775900 | 84775900 | 84775900 | 84775900 | 84775900 |
