Double Colors PVC Airblowing Machine / Pcu Machine for Shoes Making
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Company Info.
Customer Question & Answer Ask something for more details
Ask something for more details
Basic Info.
Model NO.
KK-DP02
Transport Package
Standard Exported Packing
Specification
6.8*6.5*2.25
Trademark
KINGKUNG
Origin
China
HS Code
8504101000
Production Capacity
15000 Pair /12 Hours
Product Description
Double colors PVC airblowing machine / PCU machine
for shoes making
for shoes making
1.All the main parts are imported high quality products;
2.Good service.Engineers available to service machinery overseas

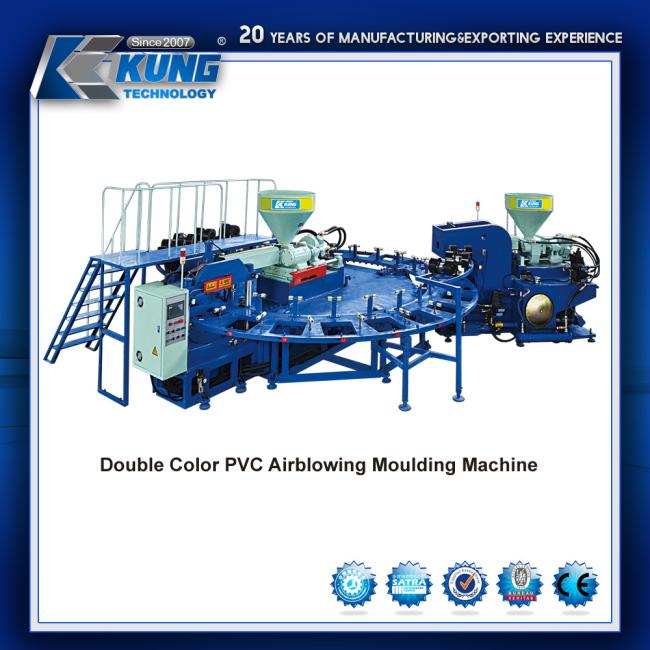

Machine Pic :
Specification :
| Item | Unit | Specification |
| Number of work station | Stations | 24 |
| Screw length diameter ratio | L/D | 100-140 |
| Screw Diameter | mm | 60 55 |
| Max injection volume | cm³ | 785 495 |
| Max injection pressure | Kg/cm² | 140 |
| Mold Clamping Force | Tons | 80 |
| Mould space(L*W*H) | mm | 450*220*260 |
| Motor | kw/hp | 18.5/15 |
| Auto thermo controller | Sets | 4 |
| Heating bands power | Kw | 17 |
| Total electric consumption | Kw | 52 |
| Mould space(L*W*H) | m | 6.8*6.5*2.25 |
| Machine Weight | Tons | 13 |
We are specialized in one-stop solution for shoes making machinery, mould , material , accessories and so on !
If any new inquiry, pls feel free contact with us, we will reply you asap! Thank you!
