OTIS Elevator Belt Lift GEN2 Traction Coated Steel Flat Belt AAA717W1
Description for OTIS Elevator Lift GEN2 Traction Coated Steel Flat Belt AAA717W1
We offer original Brugg Brand and Chinese Factory made OT Gen2 Elevator Coated Steel Flat Belts
OT Gen2 Elevator Coated Steel Flat Belts consist of steel cables and highly abrasion resistant polyurethane. It is used as a suspension device for the elevator car in passenger and freight elevators.
Details for OTIS Elevator Lift GEN2 Traction Coated Steel Flat Belt AAA717W1
| Technical parameters of coated steel flat belts | |||||
| Specification / Part number | Width/mm | Thickness/mm | No. of wire core | Pull | Appearance |
| AAA717X1 | 30 | 3 | 12 | 32KN | Smooth surfaced on two surfaces |
| AAA717W1 | 30 | 3 | 12 | 32KN | ‘V’ lines on single surface |
| AAA717AM2 | 30 | 3.2 | 10 | 43KN | Smooth surfaced on two surfaces |
| AAA717AP2 | 30 | 3.2 | 10 | 43KN | Smooth surfaced on two surfaces |
| AAA717AJ2 | 30 | 3.2 | 10 | 43KN | Smooth surfaced on two surfaces |
| AAA717AD1 | 60 | 3 | 24 | 64KN | Smooth surfaced on two surfaces |
| AAA717R1 | 60 | 3 | 24 | 64KN | ‘W’ lines on single surface |
| AAA717AJ1 | 25 | 3.2 | 8 | 32KN | Smooth surfaced on two surfaces |

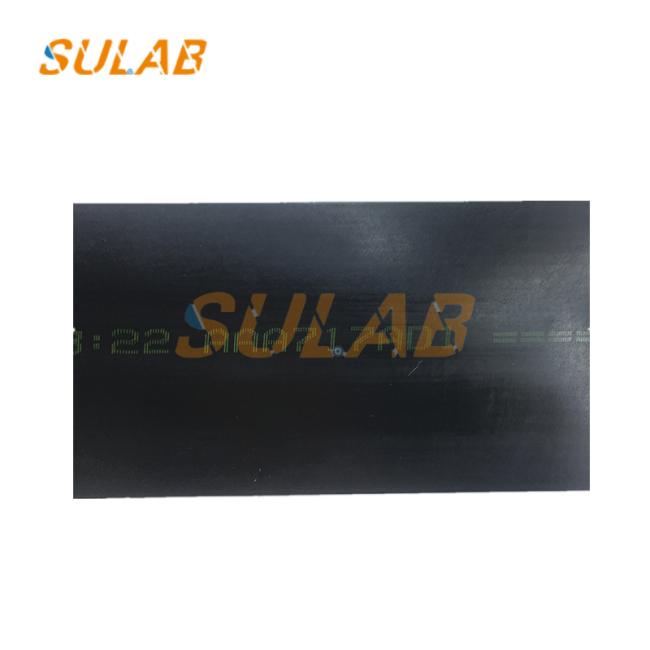

Pictures for OTIS Elevator Lift GEN2 Traction Coated Steel Flat Belt AAA717W1
Replacement of elevator steel belts
1. The replacement of the elevator steel belt should be carried out in accordance with the regulations of the elevator manufacturer, or at least 1. The steel cord carrying the elevator steel belt needs to be replaced after it is damaged by external objects. if only meet the equivalent requirements of steel strip strength, quality and design. Only the coating of the elevator steel belt is damaged and the load-bearing steel cord is not damaged or although the external
