Details for Kone Elevator Car Door Coupler Cam KM601500G13 KM601500G15 Without Lock R2

Pictures for Kone Elevator Car Door Coupler Cam KM601500G13 KM601500G15 Without Lock R2

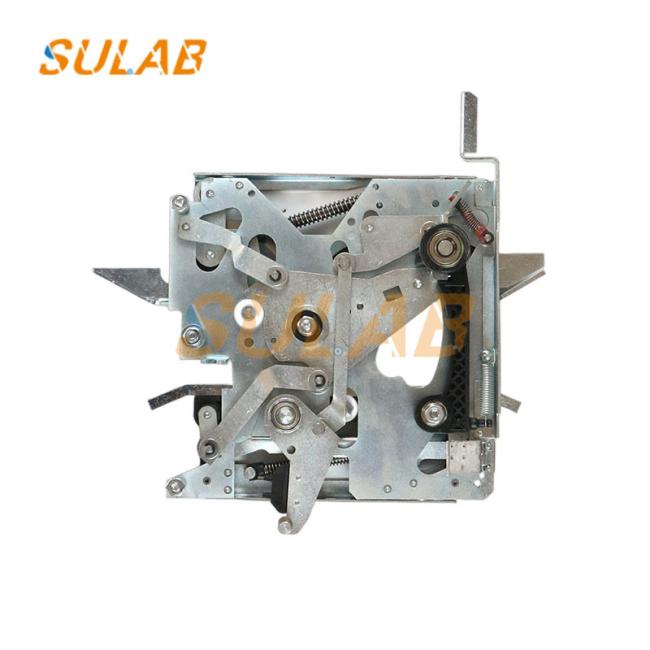

The elevator door door knife, including the door knife bottom plate, the left blade installed on one side of the door knife bottom plate, the right blade matched with the left blade, the first driving link, the second driving link, the driven link, the first A transmission link, the second transmission link, the transmission shaft, the locking plate and the door lock hook head, it is characterized in that: the left blade and the right blade are respectively connected with the driven link, the first driving link and the second driving link The quadrilateral structure is hinged and formed, and the movement of the driven link, the first driving link and the second driving link can drive the left blade and the right blade to open or close each other, and the transmission shaft is threadedly connected to the upper end of the left blade, The left blade is hinged with the door lock hook head through the first transmission link, a roller is installed on the door lock hook head, a pressure plate is fixed on the right blade, the pressure plate and the roller are slidably connected, the lock plate is sleeved with the transmission shaft, and the door knife bottom plate The second transmission link is slidably connected with the locking plate. The above structure has the effects of convenient maintenance and fast feedback.
