FAW Jiefang J6L Refrigerated Tipper Dump Truck 240hp 4X2 6.8m
FAW Jiefang J6L 240hp 4X2 6.8m refrigerated truck (high roof) (CA5180XLCP62K1L4E6)
Refrigirated Truck, FAW Refrigirated Truck

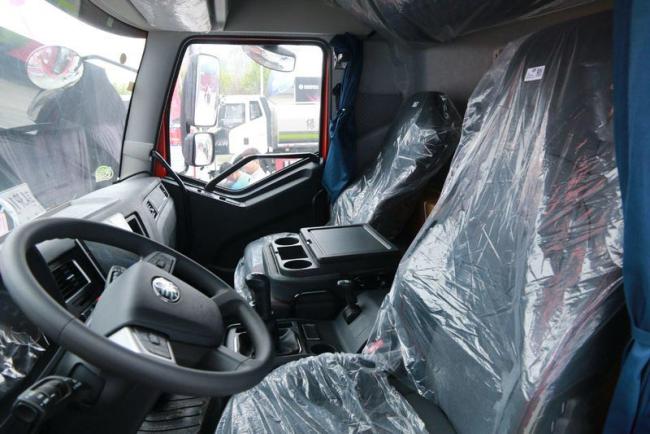

[Chassis configuration]: Using the original chassis of Jiefang FAW Company, the newly designed new J6L-2200 wide-body semi-floating high-roof semi-cab, double sleeper, electro-hydraulic flip, cab top-mounted width indicator, equipped with (CA6DH1- 24E6) Deutz Dachai 240 hp engine, 5.7 liters displacement, National VI emission, FAW 8-speed gearbox, wheelbase 5300, 275/80R22.5 18PR tubeless tires, driver's seat is a leather ventilated airbag seat (lumbar seat) support, armrest), accommodating 3 people, large-capacity storage box, central control door lock + electric doors and windows + remote control key, electric rearview mirror + rearview mirror heating, original automatic air conditioning, ABS, clutch assist, steering assist, Door is not closed warning, cab is not locked forward warning, single DIN Beidou compatible vehicle system, middle seat, speed ratio 4.333, 300L steel fuel tank, aluminum alloy air tank, VOSS connector, water bottle seat, cruise control, 120Ah battery ,
The engine/box/bridge reflects the 5/5/50,000-kilometer long oil change interval, the left side of the body with the words "Pilot Edition", the suspension 7/7+6, the right turn sound prompt, the brake lining replacement alarm, the seat belt Wear reminder, T-box 1.1, speed limit 89km/h. Air brake, front disc brake/rear drum brake, axle Ф378 cast axle. The number of tires is 6 + 1 spare tire, with headlight height adjustment, automatic brake adjustment arm, anti-splash device, triangle wedge, reflective vest, and other standard equipment.
| Basic Information | |||
| Drive form: | 4X2 | Wheelbase: | 5300mm |
| Body size: | 9.16×2.6×4 meters | Front Suspension / Rear Suspension: | 1.4/2.46m |
| Rated load: | 9.965 tons | Vehicle weight: | 7.905 tons |
| Front track: | 1943mm | Rear Track: | 1878mm |
| Maximum speed: | 89km/h | ||
| Engine parameters | |||
| engine model: | Dachai CA6DH1-24E6 | Number of cylinders: | 6 |
| Maximum output power: | 179kW | Maximum horsepower: | 240 hp |
| Displacement: | 5.7L | Emission Standards: | country six |
| Fuel type: | diesel fuel | Rated speed: | 2500rpm |
| Cargo box parameters | |||
| Cargo box size: | 6.8×2.42×2.5m | Cargo Length: | 6.8 meters |
| Cargo width: | 2.42 meters | Cargo height: | 2.5 meters |
| Bodywork parameters | |||
| Vehicle announcement: | CA5180XLCP62K1L4E6 | Vehicle type: | Refrigerated truck |
| Top brand: | FAW Jiefang | Vehicle Origin: | Changchun, Jilin |
| Cab parameters | |||
| Cab: | 2019 J6L semi-floating high-roof row half | ||
| Transmission parameters | |||
| Gearbox Model: | FAW CA8TAX090M | Number of gears: | 8th gear |
| Chassis parameters | |||
| Chassis brand: | FAW Jiefang | Chassis series: | Jiefang J6L |
| Chassis model: | CA5180XLCP62K1L4E6 | Frame size: | 237×75×7mm |
| Front axle description: | 1900 | Description of rear axle: | 378 |
| Speed ratio: | 4.333 | Number of spring pieces: | 7/7+6 |
| Number of tires: | 6 | Tire specifications: | 275/80R22.5 |
| clutch: | Φ395 | ||
