Sany C8 Concrete Mixer Truck 7.99m3 313hp 8X4 SYM5310GJB1E
Sany C8 313hp 8X4 7.99m3 concrete mixer truck (SYM5310GJB1E)
Concrete Mixer, Concrete Mixer Truck, Sany Concrete Mixer
In terms of power, it is powered by Shanghai Hino P11C-WC series engine with a displacement of 10.52L. This configuration is also used in Hino 700 series mid-axle sedan trains and express logistics transportation vehicles, with a maximum power of 350 horsepower and a maximum torque of 1250N. m, there is a power take-off at the rear of the body, which provides sufficient power for the operation of the rear mixing tank.
This Hino P11C-WC series engine is matched with a Fast 9JS150TA-B series aluminum alloy transmission, which has a very good lightweight effect while ensuring reliability.

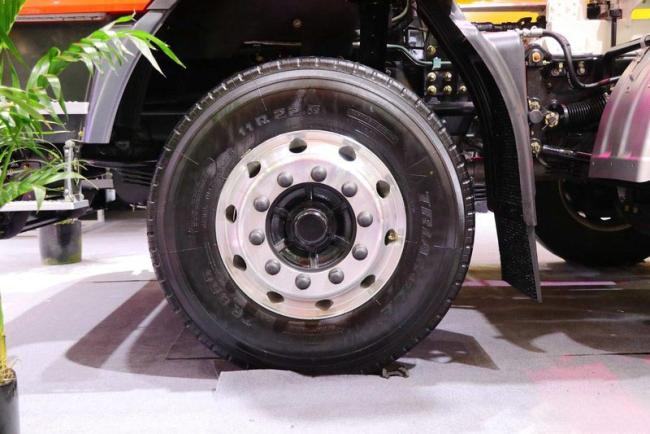

The front axle of Hande drum brake is equipped with lightweight porous wheel hubs, and the whole vehicle is equipped with 11.00R22.5 size tubeless tires.

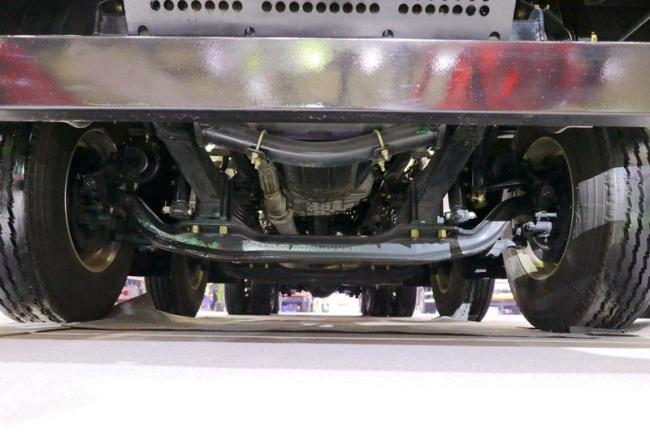

The 11-leaf spring parabolic steel plate suspension meets the needs of the times while satisfying the reliable bearing capacity. The vertical hydraulic shock absorber has a very high shock absorption effect. The brake air path is protected by a hard metal coil, which has a high security.
| Basic Information | |||
| Drive form: | 8X4 | Body size: | 9.7×2.5×3.98 meters |
| Front Suspension / Rear Suspension: | 1.48/2.02m | Wheelbase: | 1700+3200+1300mm |
| Rated load: | 17.67 tons | Vehicle weight: | 13.2 tons |
| Maximum speed: | 85km/h | Front track/rear track: | Front track: 1987mm; Rear track: 1860/1860mm |
| Engine parameters | |||
| engine model: | Sany D07C5-313E0 | Fuel type: | diesel fuel |
| Number of cylinders: | 6 | Maximum output power: | 230kW |
| Maximum horsepower: | 313 hp | Displacement: | 7.41L |
| Emission Standards: | country five | ||
| Bodywork parameters | |||
| Vehicle announcement: | SYM5310GJB1E | Vehicle type: | Concrete mixer truck |
| Top brand: | Sany Group | Vehicle Origin: | Changsha, Hunan |
| Stirring volume: | 7.99m³ | ||
| Transmission parameters | |||
| Gearbox Model: | Fast 9JS119TA | Number of gears: | 9th gear |
| Chassis parameters | |||
| Chassis model: | SYM1310T1E | Chassis series: | Sany C8 |
| Speed ratio: | 6.833 | Number of spring pieces: | 2004/4/10 |
| Number of tires: | 12 | Tire specifications: | 10.00R20 18PR,11.00R20 18PR |
