Jiefang Tiger VH 160HP 4X2 Flatbed Transporter(CA5040TPBP40K62L2E6A84)

Low Bed Truck, Low Bed, Faw Truck

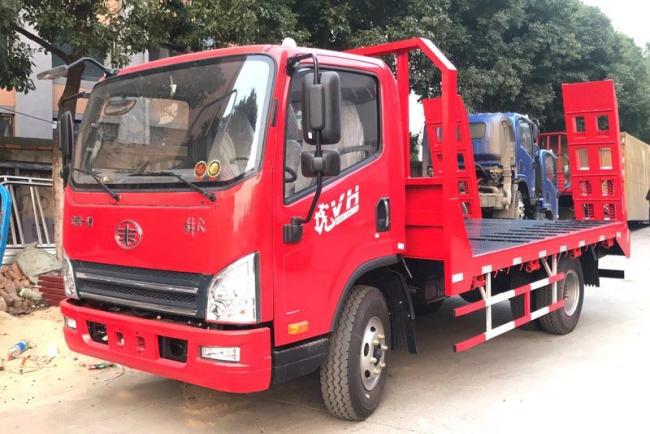

The Jiefang Tiger VH National VI flatbed transporter adopts a special chassis for Jiefang. The king drives to the Tiger VH semi-cab. It is equipped with a Weichai 190-horsepower engine, and the National VI emission standard. box, 250mm double-layer frame, 9 tons rear axle, 8.25R16 steel wire tire, standard ABS, air horn, front and lower protection, with right turn alarm, north shaking + GPRS driving recorder, electric doors and windows, original air conditioner, Central control door lock and other configurations.

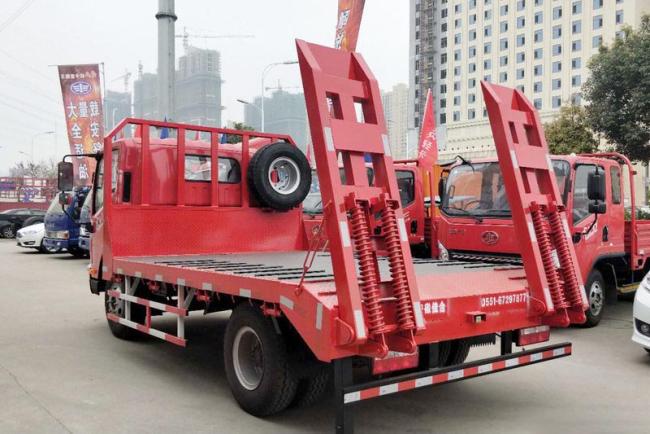

The top is made of national standard thickness 5mm thick pattern plate, the plate length is 5.4 meters, the beam is made of 100*100 square steel, and the tail has a double spring ladder and a simple manual rear outrigger.
The overall dimensions of the vehicle are 7615, 7995X2320, 2420, 2550X2560, 2600, 2640, 3850mm, the wheelbase is 4200mm, the total mass is 14060kg, the rated load mass is 8475,7995kg, and the curb mass is 5390,5870kg. The material of the side guard is R13 steel, and the connection method is bolt connection. The material of the rear lower guard is Q235 steel, and the connection method is bolt connection. The height of the rear guard from the ground is 420mm, and the section size is 120×60mm.
