52100 Heavy Duty Needle Bearing Radial Cylindrical Roller Bearings Single Row MR 22 N Narrow Width
Price:
USD0.5 per Piece (Send inquiry for details)
MOQ:
100
Delivery Time:
3-50 working days.(Huge Quantity Stocks Available))
Brand:
MOUETTE
Product Description

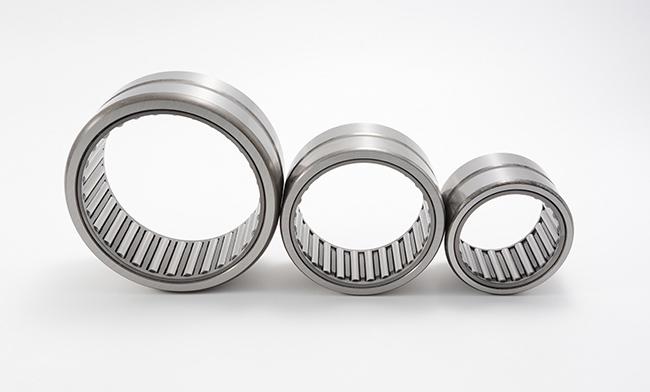

Radial Heavy Duty Needle Roller Bearing No Inner Ring Narrow Width MR 22 N
Unmounted bearing assembly consisting of through hardened precision machinedinner and outer raceways with either full complement or separated (cage) needle rolling elements. Depending on can be land or roller riding and available with several seal options. Machined race needle bearings provide an antifriction solution when supporting rotating shafts with radial loads.
Features
- Machined race needle bearing
- Needle rollers retained by a steel cage
- Designed to accommodate higher speeds and some misalignment
- Heavy-duty roller bearing
- Unsealed
- Annular lubrication groove
- Narrow width configuration
Radial Heavy Duty Needle Roller Bearing No Inner Ring Narrow Width MR Series Details:
|
Bearing Code |
Inner ring |
B | D | W | W1 | H | R | ||
| +.0000 | Tol. | +.0000 | Tol. |
+.000 -0.005 |
+.000 -0.005 |
hole dia. | Max. | ||
| MR 10 N | MI 6 N | .3750 | -.0004 | 1.1250 | -.0005 | .750 | .760 | 5/64 | .025 |
| MR 10 N | MI 7 N | .4375 | -.0004 | 1.1250 | -.0005 | .750 | .760 | 5/64 | .025 |
| MR 10 | MI 6 | .3750 | -.0004 | 1.1250 | -.0005 | 1.000 | 1.010 | 5/64 | .025 |
| MR 12 N | MI 8 N | .5000 | -.0004 | 1.2500 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 12 N | MI 9 N | .5625 | -.0004 | 1.2500 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 12 | MI 8 | .5000 | -.0004 | 1.2500 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MR 14 N | MI 10 N | .6250 | -.0004 | 1.3750 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 14 N | MI 11 N | .6875 | -.0004 | 1.3750 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 14 | MI 10 | .6250 | -.0004 | 1.3750 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MR 16 N | MI 12 N | .7500 | -.0004 | 1.5000 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 16 N | MI 13 N | .8125 | -.0004 | 1.5000 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 16 | MI 12 | .7500 | -.0004 | 1.5000 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MR 16 | MI 13 | .8125 | -.0004 | 1.5000 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MR 18 N | MI 14 N | .8750 | -.0005 | 1.6250 | -.0005 | 1.000 | 1.010 | 3/32 | .040 |
| MR 18 N | MI 15 N | .9375 | -.0005 | 1.6250 | -.0005 | 1.000 | 1.010 | 3/32 | .040 |
| MR 18 | MI 14 | .8750 | -.0005 | 1.6250 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 18 | MI 15 | .9375 | -.0005 | 1.6250 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 20 N | MI 16 N | 1.0000 | -.0005 | 1.7500 | -.0005 | 1.000 | 1.010 | 3/32 | .040 |
| MR 20 | MI 16 | 1.0000 | -.0005 | 1.7500 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 22 N | MI 18 N | 1.1250 | -.0005 | 1.8750 | -.0005 | 1.000 | 1.010 | 3/32 | .040 |
| MR 22 | MI 17 | 1.0625 | -.0005 | 1.8750 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 22 | MI 18 | 1.1250 | -.0005 | 1.8750 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 24 N | MI 20N | 1.2500 | -.0005 | 2.0625 | -.0006 | 1.000 | 1.010 | 3/32 | .060 |
| MR 24 | MI 19 | 1.1875 | -.0005 | 2.0625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 24 | MI 20 | 1.2500 | -.0005 | 2.0625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 26 N | MI 21 N | 1.3125 | -.0005 | 2.1875 | -.0006 | 1.000 | 1.010 | 3/32 | .060 |
| MR 26 | MI 21 | 1.3125 | -.0005 | 2.1875 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 26 | MI 22 4S | 1.3750 | -.0005 | 2.1875 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 28 N | MI 24 N | 1.5000 | -.0005 | 2.3125 | -.0006 | 1.000 | 1.010 | 3/32 | .060 |
| MR 28 | MI 22 | 1.3750 | -.0005 | 2.3125 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 28 | MI 23 | 1.4375 | -.0005 | 2.3125 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 28 | MI 24 | 1.5000 | -.0005 | 2.3125 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 30 | MI 25 4S | 1.5625 | -.0005 | 2.4375 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 31 | MI 26 2S | 1.6250 | -.0005 | 2.5000 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 32 N | MI 26 N | 1.6250 | -.0005 | 2.5625 | -.0006 | 1.000 | 1.010 | 3/32 | .060 |
| MR 32 | MI 25 | 1.5625 | -.0005 | 2.5625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 32 | MI 26 | 1.6250 | -.0005 | 2.5625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 32 | MI 27 | 1.6875 | -.0005 | 2.5625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 36 N | MI 28 N | 1.7500 | -.0005 | 3.0000 | -.0006 | 1.500 | 1.510 | 1/8 | .060 |
| MR 36 | MI 28 | 1.7500 | -.0005 | 3.0000 | -.0006 | 1.750 | 1.760 | 1/8 | .060 |
| MR 36 | MI 30 | 1.8750 | -.0005 | 3.0000 | -.0006 | 1.750 | 1.760 | 1/8 | .060 |
| MR 40 N | MI 32 N | 2.0000 | -.0005 | 3.2500 | -.0008 | 1.500 | 1.510 | 1/8 | .080 |
| MR 40 | MI 31 | 1.9375 | -.0005 | 3.2500 | -.0008 | 1.750 | 1.760 | 1/8 | .080 |
| MR 40 | MI 32 | 2.0000 | -.0005 | 3.2500 | -.0008 | 1.750 | 1.760 | 1/8 | .080 |
| MR 40 | MI 34 | 2.1250 | -.0005 | 3.2500 | -.0008 | 1.750 | 1.760 | 1/8 | .080 |
|
Bearing Code |
INNER RING |
SHAFT DIA. | Basic Load Rating | ||||
| ROTAT. SHAFT | Tol. | STAT SHAFT | Tol. | STA. | DYN. | ||
| MR 10 N | MI 6 N | .3755 | -.0005 | .3747 | -.0005 | 4300 | 4320 |
| MR 10 N | MI 7 N | .4380 | -.0005 | .4372 | -.0005 | 4300 | 4320 |
| MR 10 | MI 6 | .3755 | -.0005 | .3747 | -.0005 | 6500 | 5930 |
| MR12 N | MI 8 N | .5005 | -.0005 | .4997 | -.0005 | 5400 | 4990 |
| MR 12 N | MI 9 N | .5630 | -.0005 | .5623 | -.0005 | 5400 | 4990 |
| MR 12 | MI 8 | .5005 | -.0005 | .4997 | -.0005 | 8100 | 6830 |
| MR 14 N | MI 10 N | .6255 | -.0005 | .6247 | -.0005 | 6000 | 5280 |
| MR 14 N | MI 11 N | .6880 | -.0005 | .6872 | -.0005 | 6000 | 5280 |
| MR 14 | MI 10 | .6255 | -.0005 | .6247 | -.0005 | 9000 | 7240 |
| MR 16 N | MI 12 N | .7505 | -.0005 | .7497 | -.0005 | 7100 | 5840 |
| MR 16 N | MI 13 N | .8129 | -.0005 | .8121 | -.0005 | 7100 | 5840 |
| MR 16 | MI 12 | .7505 | -.0005 | .7497 | -.0005 | 10600 | 8000 |
| MR 16 | MI 13 | .8129 | -.0005 | .8121 | -.0005 | 10600 | 8000 |
| MR 18 N | MI 14 N | .8754 | -.0005 | .8746 | -.0005 | 12200 | 8720 |
| MR 18 N | MI 15 N | .9379 | -.0005 | .9371 | -.0005 | 12200 | 8720 |
| MR 18 | MI 14 | .8754 | -.0005 | .8746 | -.0005 | 16300 | 10900 |
| MR 18 | MI 15 | .9379 | -.0005 | .9371 | -.0005 | 16300 | 10900 |
| MR 20 N | MI 16 N | 1.0004 | -.0005 | .9996 | -.0005 | 13100 | 9020 |
| MR 20 | MI 16 | 1.0004 | -.0005 | .9996 | -.0005 | 17500 | 11300 |
| MR 22 N | MI 18 N | 1.1255 | -.0005 | 1.1246 | -.0005 | 14700 | 9640 |
| MR 22 | MI 17 | 1.0630 | -.0005 | 1.0621 | -.0005 | 19700 | 12100 |
| MR 22 | MI 18 | 1.1255 | -.0005 | 1.1246 | -.0005 | 19700 | 12100 |
| MR 24 N | MI 20 N | 1.2505 | -.0005 | 1.2496 | -.0005 | 15500 | 10300 |
| MR 24 | MI 19 | 1.1880 | -.0005 | 1.1871 | -.0005 | 20800 | 13000 |
| MR 24 | MI 20 | 1.2505 | -.0005 | 1.2496 | -.0005 | 20800 | 13000 |
| MR 26 N | MI 21 N | 1.3130 | -.0005 | 1.3121 | -.0005 | 16400 | 1060 |
| MR 26 | MI 21 | 1.3130 | -.0005 | 1.3121 | -.0005 | 22100 | 13300 |
| MR 26 | MI 22 4S | 1.3755 | -.0005 | 1.3746 | -.0005 | 22100 | 13300 |
| MR 28 N | MI 24 N | 1.5005 | -.0005 | 1.4996 | -.0005 | 18100 | 11200 |
| MR 28 | MI 22 | 1.3755 | -.0005 | 1.3746 | -.0005 | 24400 | 14100 |
| MR 28 | MI 23 | 1.4380 | -.0005 | 1.4371 | -.0005 | 24400 | 14100 |
| MR 28 | MI 24 | 1.5005 | -.0005 | 1.4996 | -.0005 | 24400 | 14400 |
| MR 30 | MI 25 4S | 1.5630 | -.0005 | 1.5621 | -.0005 | 25600 | 14400 |
| MR 31 | MI 26 2S | 1.6255 | -.0005 | 1.6246 | -.0005 | 22400 | 12400 |
| MR 32 N | MI 26 N | 1.6255 | -.0005 | 1.6246 | -.0005 | 20700 | 12000 |
| MR 32 | MI 25 | 1.5630 | -.0005 | 1.5621 | -.0005 | 27900 | 15200 |
| MR 32 | MI 26 | 1.6255 | -.0005 | 1.6246 | -.0005 | 27900 | 15200 |
| MR 32 | MI 27 | 1.6880 | -.0005 | 1.6871 | -.0005 | 27900 | 15200 |
| MR 36 N | MI 28 N | 1.7505 | -.0005 | 1.7496 | -.0005 | 39100 | 22400 |
| MR 36 | MI 28 | 1.7505 | -.0005 | 1.7496 | -.0005 | 47400 | 26000 |
| MR 36 | MI 30 | 1.8755 | -.0005 | 1.8746 | -.0005 | 47400 | 26000 |
| MR 40 N | MI 32 N | 2.0005 | -.0005 | 1.9996 | -.0005 | 42900 | 23400 |
| MR 40 | MI 31 | 1.9380 | -.0005 | 1.9371 | -.0005 | 52100 | 27200 |
| MR 40 | MI 32 | 2.0005 | -.0005 | 1.9996 | -.0005 | 52100 | 27200 |
| MR 40 | MI 34 | 2.1258 | -.0005 | 2.1247 | -.0005 | 52100 | 27200 |
